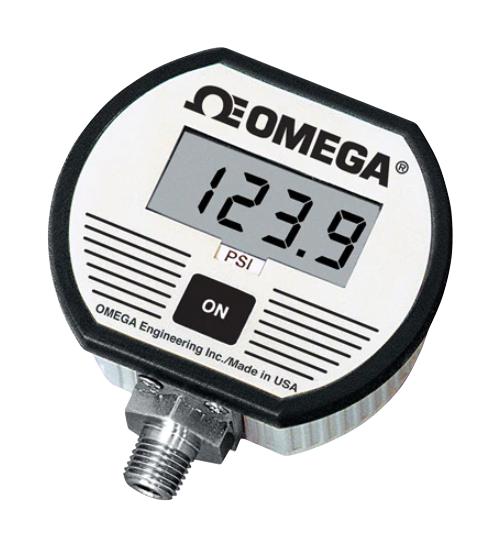

OMEGA DPG1000B1KG Digital Pressure Gauge
The DPG1000 Series is a versatile industrial digital pressure and vacuum gauge family offering precise measurement with ±0.10% or ±0.25% accuracy, suitable for liquids and gases compatible with 316 stainless steel. It features multiple power options—battery, loop, or AC/DC—with robust extruded aluminum or NEMA 4X cases. The large LCD display provides clear readings, and models include features like auto shut-off, low-battery warning, and test calibration. Suitable for a wide temperature range, these durable gauges support various ranges up to 5000 psi for pressure and vacuum applications.
OMEGA DPG1000B1KG Digital Pressure Gauge Specifications:
- Power: 2 AA batteries (approx. 2500 hours), auto shut-off 5 min, low-battery warning
- Power: 8 to 32 Vdc or 8 to 24 Vac, reverse polarity protected
- Display Type/Size: LCD, 13 mm (0.5 inches) digit height, 3 readings/sec
- Accuracy: ±0.10% or ±0.25% FSO, includes linearity/hysteresis/repeatability
- Temperature Stability: ±0.25% FSO typical at 25°C, 0-70°C range, ±1% FS offset/span
- Operating Temp: -20 to 85°C (-4 to 185°F)
- Storage Temp: -55 to 95°C (-67 to 203°F)
- Connection: 316 SS %-18 MNPT, wetted parts include all wetted components
- Overpressure Rating: 2x rated pressure, Burst: 4x rated pressure
- Dimensions (Std Case): 86 x 73 x 42 mm; (NEMA 4X): 89 x 76 x 51 mm
Buy the Industrial Series Pressure Gauges: DPG1000B 1KG Precision Pressure Sensor
Enhance your industrial pressure measurement with the DPG1000B 1KG digital pressure gauge. Featuring ±0.10% accuracy, robust construction, and multiple power options, it ensures reliable readings in demanding environments. Its large LCD display offers clear, real-time pressure or vacuum readings, while the durable case withstands harsh conditions. Easy to install and operate, this pressure gauge is ideal for both portable and fixed applications, providing precise monitoring for liquids and gases up to 5000 psi. Order online today for superior performance.
Buy DPG1000B 1KG industrial digital pressure gauge now and experience unmatched reliability and performance for demanding applications.
