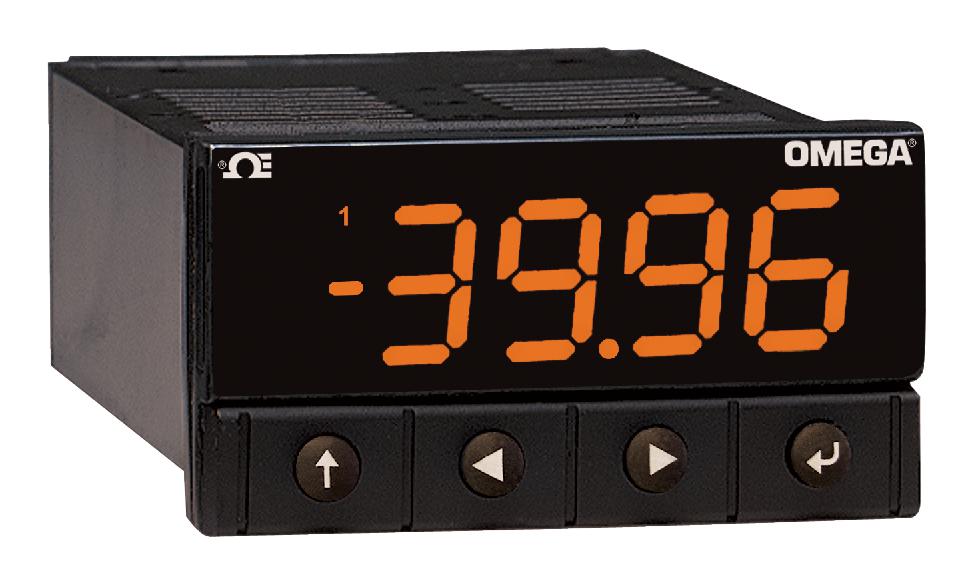

OMEGA CN32PT144 Temperature Process Controller
The CN32PT144 is a versatile temperature and process controller featuring a 4-digit, 9-segment LED display with bright, wide viewing angles. It supports multiple input types including thermocouples, RTDs, thermistors, and process voltage/current. With fully firmware configurable inputs and outputs, it offers programmable control functions like PID, auto-tune, ramp, and soak programs. Multiple alarms, serial communications (USB, optional Ethernet, RS485), and a robust NEMA 4X front bezel make it ideal for industrial process control applications demanding precision, flexibility, and easy setup.
OMEGA CN32PT144 Temperature Process Controller Specifications:
- Display: 4-digit, 9-segment LED with wide viewing angle
- Input Types: Thermocouples, RTDs, thermistors, process voltage/current, strain
- Input Ranges: -100 to 100 mV, -1 to 1 V, -10 to 10 V, 4-20 mA, 0-24 mA, PT thermocouples, RTDs, thermistors
- Control Modes: ON/OFF, PID (auto-tune, fuzzy logic adaptive tuning), manual, proportional, derivative
- Ramp and Soak: Up to 99 programs, 8 segments per program, chainable
- Outputs: 2 to 6 programmable control/alarm/retransmission outputs including relay, SSR, DC pulse, analog voltage/current
- Communication: USB, optional Ethernet RJ45, RS232/RS485, MODBUS® protocols
- Power Supply: 90-240 Vac, low-voltage option 12-36 Vdc
- Environmental Conditions: 0 to 50°C (32-122°F), 90% RH non-condensing
- Certification: UL, cUL, CE, NEMA 4X (IP65) front bezel
Buy the Omega Series Temperature Process Controller: CN32PT144
Upgrade your process control system with the Omega Series CN32PT144 controller. Featuring a bright LED display, wide input support including thermocouples, RTDs, and process signals, it offers advanced PID control with auto-tune and fuzzy logic. Multiple programmable outputs and alarms ensure flexible configurations for industrial applications. With USB and optional Ethernet communication, setup is straightforward, enabling seamless integration. Its rugged NEMA 4X front bezel guarantees durability in demanding environments. Purchase online today to optimize your temperature and process management with this high-performance controller.
Order your Omega Series CN32PT144 temperature and process controller today and enhance your industrial control systems with this versatile, high-precision device.
