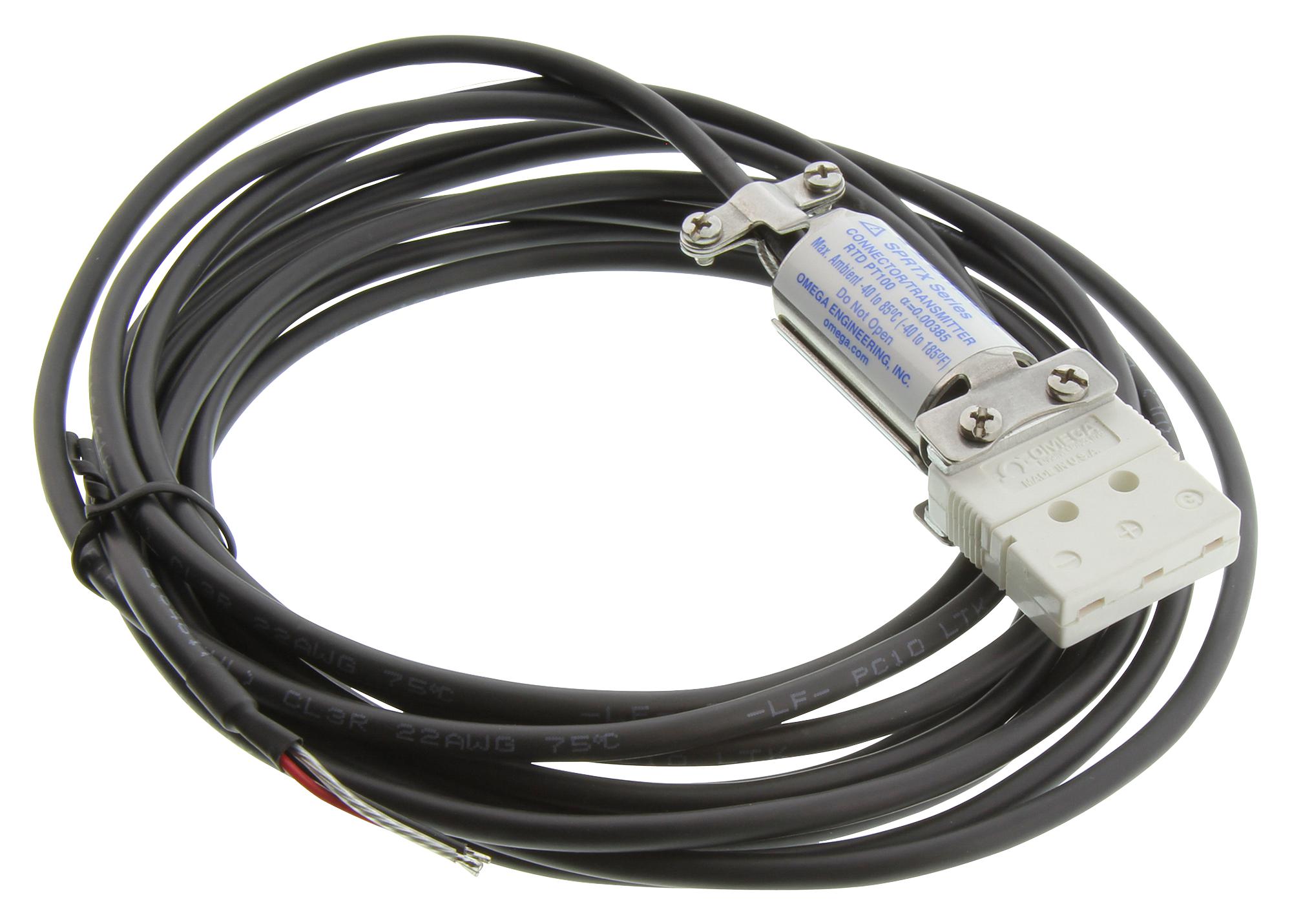

OMEGA SPRTXM1 RTD and Thermocouple Connector Transmitter
High-performance industrial 2-wire connector-transmitter designed for RTDs and thermocouples, offering precise temperature signal transmission. Encapsulated electronics ensure high accuracy, stability, and repeatability. Suitable for challenging environments with operating temperatures from -40°C to 85°C. Pre-calibrated for immediate use, it provides a linear 4 to 20 mA output, with open sensor wire indication. Features include a universal connector, dual locking clips, and includes a 3-meter shielded cable. Ideal for process control and temperature monitoring applications in various industrial settings.
OMEGA SPRTXM1 RTD and Thermocouple Connector Transmitter Specifications:
- Supply Voltage: 9 to 24 Vdc @ 30 mA
- Output: Linearized 4 to 20 mA
- Accuracy: +0.5% of FS @ 23°C (73°F)
- Repeatability: +0.25°C (+0.5°F)
- Temperature Effect: +0.0022 mA/°C (+0.0012 mA/°F)
- Max Load Resistance: (Vsupply — 9V)/0.02 A
- Max Input Lead Resistance: 50V
- Transmitter Operating Temperature: -40 to 85°C (-40 to 185°F)
- Dimensions: 24H x 18W x 79mmL (SPRTX-M1, SPRTX-M2), 36H x 18W x 83mmL (SPRTX-S1, SPRTX-S2)
- Input Connection: 3-prong miniature or standard connector depending on model
- Approvals: CE marked
- Includes: Fully assembled with connector, built-in transmitter, and 3m shielded cable
Buy the Omega Series SPRTX RTD Connector Transmitter: SPRTXM1
Order the Omega RTD and thermocouple connector-transmitter online today to enhance your temperature sensing applications. This robust, pre-calibrated device provides accurate 4-20mA signals, ensuring reliable data for process control. Featuring a durable encapsulated design, universal connectors, and a 3-meter shielded cable, it is ideal for industrial environments. Easy to install and designed for stability across a broad temperature range, it offers high accuracy, repeatability, and open sensor wire indication, making it essential for precise temperature monitoring in manufacturing and automation systems.
Get Omega SPRTXM1 today—built for precise temperature measurement and reliable industrial performance.
