OMEGA SMPWCCTIF Miniature Cable Clamp Connector
The SMPW-CC Series miniature connector features an integral cable clamp and strain relief with grommet, enabling straight wire termination without the need for wire loops. Made from glass-filled nylon capable of withstanding temperatures from -29°C to 180°C, it accepts wire sizes from 40 AWG up to 20 AWG, or larger cables with optional grommets. This connector includes captive screws, a write-on window, and internal wire divider, providing secure, quick, and reliable electrical connections suitable for various industrial applications.
OMEGA SMPWCCTIF Miniature Cable Clamp Connector Specifications:
- Material: Glass filled nylon
- Temperature Rating: -29°C to 180°C (-20°F to 356°F)
- Wire Range: 40 AWG up to 20 AWG, or larger cables with grommet
- Clamp Diameter: 0.22 inches (5.5 mm)
- Connector Dimensions: Length 12.7 mm (0.5 inch), width 12.5 mm (0.10 inch), access hole 3.17 mm (0.13 inch)
- Screw Type: Combination Phillips/slot head, captive screws
- Rated for flexible or armored cable, with internal wire divider for organized termination
- Connector body: Glass filled nylon, resistant to temperature variations
- Sold individually or in bulk packs of 5, 50, 100 units
- Additional accessories include silicone wire grommets and strain relief grommets for enhanced cable management

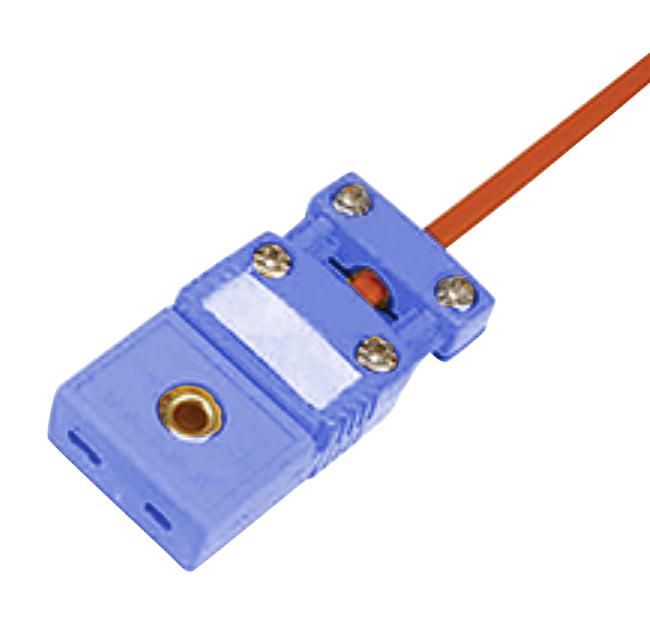

Buy the Omega Series SMPW-CC Strain Relief Connector: SMPW-CC-TIF
Secure your electrical wiring efficiently with the Omega SMPW-CC series miniature connector. Featuring integral cable clamp, strain relief, and a quick termination design, this connector supports wire sizes from 40 AWG to 20 AWG. Made from durable glass-filled nylon, it operates from -29°C to 180°C, ensuring reliable performance in diverse environments. Easy to assemble with captive screws and internal wire divider, offering organized, dependable electrical connections. Available in single units or bulk packs for flexible industrial applications.
Order your Omega Series SMPW-CC strain relief connector today and secure your wiring assembly with reliable, quick-to-install features for industrial use.
Frequently Asked Questions
Where can I buy OMEGA SMPWCCTIF?
You can click on the BUY or RFQ button to purchase SMPWCCTIF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SMPWCCTIF?
You can download the SMPWCCTIF datasheet or visit the OMEGA website for support.
Who is the manufacturer of SMPWCCTIF?
OMEGA
