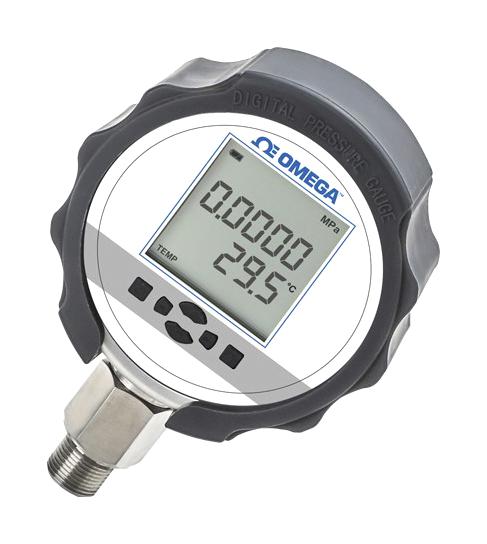

OMEGA DPG210030A Digital Pressure Gauge
This digital pressure gauge features a large 55x55 mm LCD screen displaying real-time pressure, temperature, and max/min values. It supports 19 preset units including MPa, kPa, psi, bar, and Torr, with high accuracy classes of 0.2/0.1/0.05%FS. Powered by three AA batteries or USB, it offers stable, high-precision digital readings, shock resistance, and adjustable data acquisition rates from 1 to 10 seconds. Suitable for industrial environments, it includes functions like zero clearing, unit switching, backlight control, and automatic shutdown, ensuring reliable pressure measurement and data logging.
OMEGA DPG210030A Digital Pressure Gauge Specifications:
- Display: 55x55 mm LCD screen with main and auxiliary displays
- Pressure Units: MPa, kPa, psi, bar, Pa, mBAR, mmHg, mH2O, Torr, kgf/cm²
- Accuracy: 0.2/0.1/0.05%FS
- Power Supply: Three AA batteries (service life >3600 hours) or USB 5V
- Sampling Rate: 1 to 10 seconds adjustable
- Temperature Display: Celsius and Fahrenheit
- Dimensions: 105 mm size
- Shock Resistance: High
- Data Functions: Max/Min pressure values, zero clearing, auto shutdown in 10 mins
- Communication: RS485 option, adjustable baud rate (4800/9600/19200)
Buy the Omega DPG210 – Digital Pressure Gauge with LCD Display and Multi-Unit Support
Purchase the Omega DPG210 digital pressure gauge online today to enhance your industrial pressure monitoring. Featuring a large LCD, multi-unit support, high accuracy, and long battery life, it provides precise readings of pressure and temperature data. Its robust digital design ensures stable performance even in shock-prone environments. Easily switch units, clear zero offsets, and view max/min data. Whether for manufacturing, testing, or process control, ordering online guarantees fast delivery and professional support for reliable pressure management in your facility.
Buy Omega DPG210 now and experience unmatched digital pressure measurement accuracy and versatile data logging for industrial environments.
