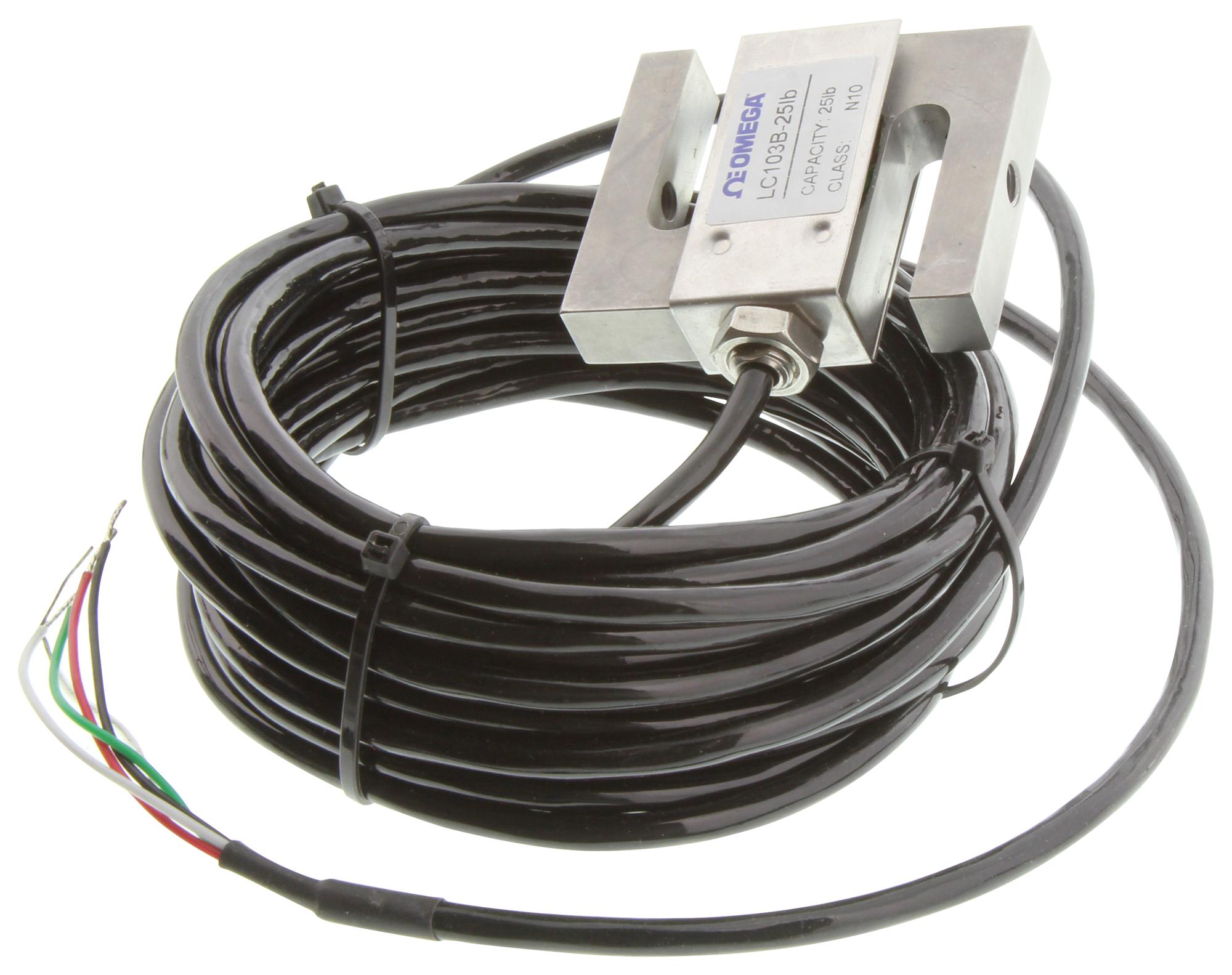

OMEGA LC103B25 Stainless Steel S-Beam Load Cell
Omega's LC103B stainless steel S-beam load cells deliver high accuracy and durability for tension and compression applications. Suitable for tank weighing, hoppers, suspended loads, and truck scales, these rugged, sealed load cells feature IP67 ingress protection and are ideal for harsh environments. They provide excellent linearity and temperature performance, meeting OIML R60 C3 class standards for legal metrology. With capacities ranging from 25 to 20,000 lbs., they offer reliable performance in various industrial weighing and force measurement applications, ensuring precision in demanding conditions.
OMEGA LC103B25 Stainless Steel S-Beam Load Cell Specifications:
- Accuracy: class C3 for loads over 25 lbs
- Approvals: OIML R60
- Output sensitivity: 3.04 ± 0.008 mV/V (<25 lbs 2.0 ± 0.006 mV/V)
- Maximum load intervals: 3000
- Verification interval ratio: 10000
- Combined error: ±0.020% FS
- Safe overload: 150% FS
- Ultimate overload: 300% FS
- Zero balance: ±1.0% FS
- Excitation voltage: 5 to 12 V DC (recommended), max 18 V DC
- Input resistance: 430 ± 60 Ω
- Output resistance: 351 ± 2 Ω
- Insulation resistance: ≥5000 MΩ at 50 V DC
- Operating temperature: -35°C to 65°C
- Storage temperature: -40°C to 70°C
- Ingress protection: IP67
- Element material: stainless steel
- Recommended torque on fixation: varies by thread size, up to 1070 lbf.ft for 1 1/8" UNF
- Physical dimensions vary by capacity, with cable diameter 25 mm, standard length 6 m
Buy the Omega Series LC103B Stainless Steel Load Cell: Reliable S-Beam Force Measurement
Purchase Omega LC103B stainless steel S-beam load cells online today for highly accurate tension and compression measurement. Designed with rugged stainless steel, IP67 ingress protection, and calibrated for legal metrology standards, these load cells are suitable for harsh environments like tank weighing, hoppers, and suspended loads. Available in capacities from 25 to 20,000 pounds, they offer excellent linearity, temperature stability, and reliability. Perfect for industrial, manufacturing, and force measurement applications, ensuring precise results with durable construction that withstands challenging conditions.
Get Omega LC103B today—built for precision and long-lasting durability with a wide capacity range for demanding industrial weighing.
