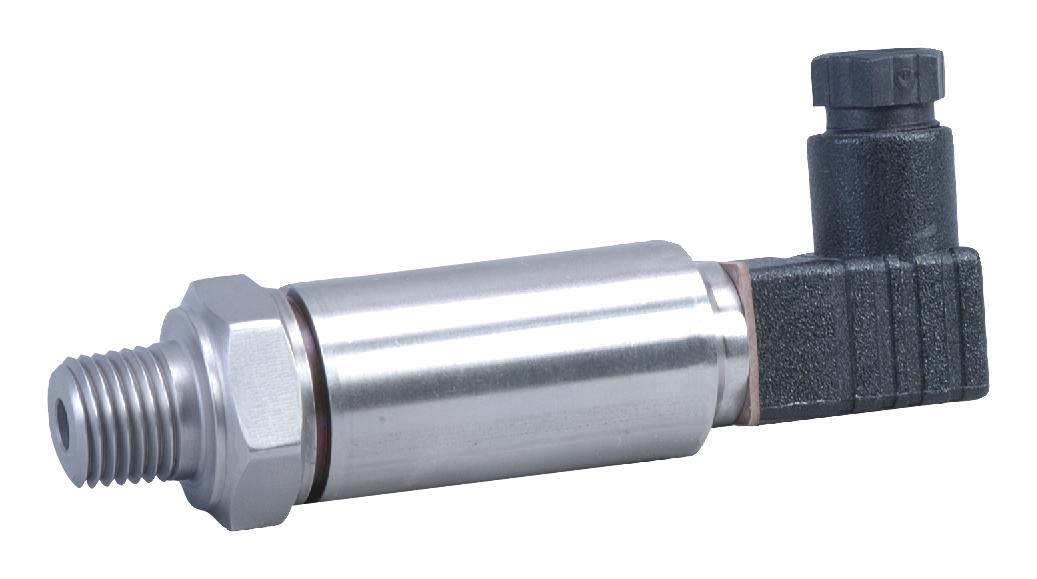

OMEGA PX319100GI pressure transducer
The PX319 series high-performance general purpose pressure transducer utilizes advanced silicon technologies to deliver reliable measurements. It features an accuracy of ±0.25% FS including combined linearity, hysteresis, and repeatability. This transducer has a gauge pressure range of 0 to 6.9 bar (0 to 100 psi) and is constructed entirely from stainless steel for durability. It provides a 4 to 20 mA analog output and is designed with high stability and low drift, ensuring consistent performance over time. The IP65 protection rating allows for resistance to dust and water ingress. The rugged, solid-state design is suitable for demanding environments, with a long-term stability of approximately ±0.25% over one year. It operates within a temperature range of -40°C to 85°C (-40°F to 185°F). The pressure port features a quarter-inch 18 MNPT connection, and it is equipped with a Micro-DIN connector. Supplied with a 5-point NIST-traceable calibration, this pressure transducer is ideal for various industrial applications.
OMEGA PX319100GI pressure transducer Specifications:
- Range: 0 to 6.9 bar (0 to 100 psi)
- Accuracy: ±0.25% FS including linearity, hysteresis, and repeatability
- Material: Stainless steel construction
- Outputs: 4 to 20 mA analog
- Protection: IP65 rated for dust and water resistance
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Pressure Port: 0.25 inch 18 MNPT
- Calibration: 5-point NIST-traceable
- Long-term stability: ±0.25% over 1 year
- Connections: Micro-DIN connector
- Design: Rugged solid-state for demanding environments
Buy the Omega Series PX319 Pressure Sensor: PX319100GI
Experience dependable and precise pressure measurement with the Omega PX319 series transducer. Crafted with stainless steel for durability, it offers 4-20 mA output, IP65 protection, and long-term stability. Perfect for demanding industrial environments, it includes a NIST-traceable calibration ensuring measurement accuracy. Its rugged design with a quarter-inch 18 MNPT port and Micro-DIN connector makes installation simple in various applications. Invest in this high-quality sensor today and enhance your process control with confidence and precision.
Order your Omega Series PX319 pressure transducer today and ensure reliable industrial measurements with high accuracy and durability.
Frequently Asked Questions
Where can I buy OMEGA PX319100GI?
You can click on the BUY or RFQ button to purchase PX319100GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX319100GI?
You can download the PX319100GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX319100GI?
OMEGA
