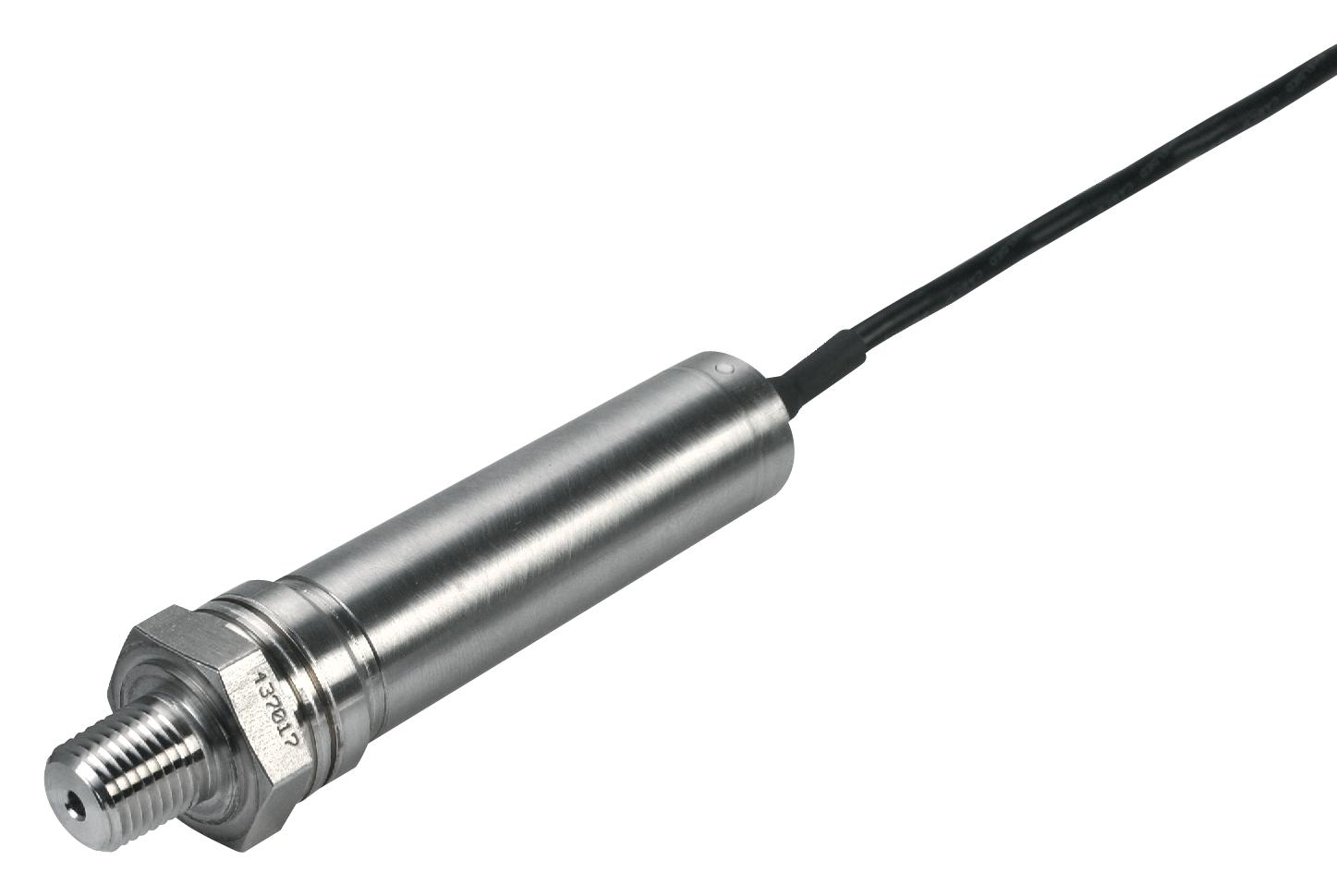

OMEGA PX40935KGUSBH Pressure Transducer
The PX409-3.5KGUSBH from Omega is a high-performance pressure transducer in the PX409-USBH series, designed for precise gauge pressure measurements. It features a micro-machined silicon sensor providing ±0.08% accuracy, with high-speed USB 2.0 output for direct computer connection. The rugged stainless steel wetted parts and environmental IP65 rating ensure durability in industrial and laboratory environments. It offers a broad temperature compensation range from -29°C to 85°C, over 1 million pressure cycles, and includes free PC software for data logging and charting, making it ideal for bio/pharmaceutical, test, and industrial applications needing long-term stable readings.
OMEGA PX40935KGUSBH Pressure Transducer Specifications:
- Accuracy: ±0.08% of full scale
- Resolution: Up to 5.5 significant figures
- Temperature Compensation Range: -29°C to 85°C (-20°F to 185°F)
- Wetted Parts: 316L stainless steel
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Environmental Protection: IP65
- Pressure Cycles: Over 1 million
- Input Power: 0.35 W typical
- Output: USB 2.0 high-speed, compatible with USB 1.0
- A/D Conversion: 24-bit
- Shock Resistance: 50 g, 11 ms half sine
- Vibration: 5-2000-5 Hz, 30 min cycle
- Bandwidth: DC to 1000 updates per second
- Sensor Type: Micro-machined silicon
- Construction: Modular with quick delivery
- Calibration: 5-point NIST traceable
- Fitting: 4-18 NPT male
- Weight: 227 g (8 oz)
- Environmental Conditions: Compatible with rugged industrial environments
Buy the Omega Series PX409 Pressure Sensor: PX409-3.5KGUSBH
Experience unrivaled accuracy with the Omega PX409-3.5KGUSBH pressure transducer, featuring stainless steel wetted parts, IP65 protection, and a USB output for seamless computer integration. Ideal for laboratory, industrial, and bio/pharmaceutical applications, it offers over 1 million pressure cycles and broad temperature compensation from -29°C to 85°C. The included free software enables real-time data logging, charting, and analysis. Its rugged, modular design ensures quick configuration and delivery, making it a reliable choice for demanding measurement environments.
Get Omega PX409-3.5KGUSBH today—built for precision and long-lasting durability in industrial and laboratory applications.
