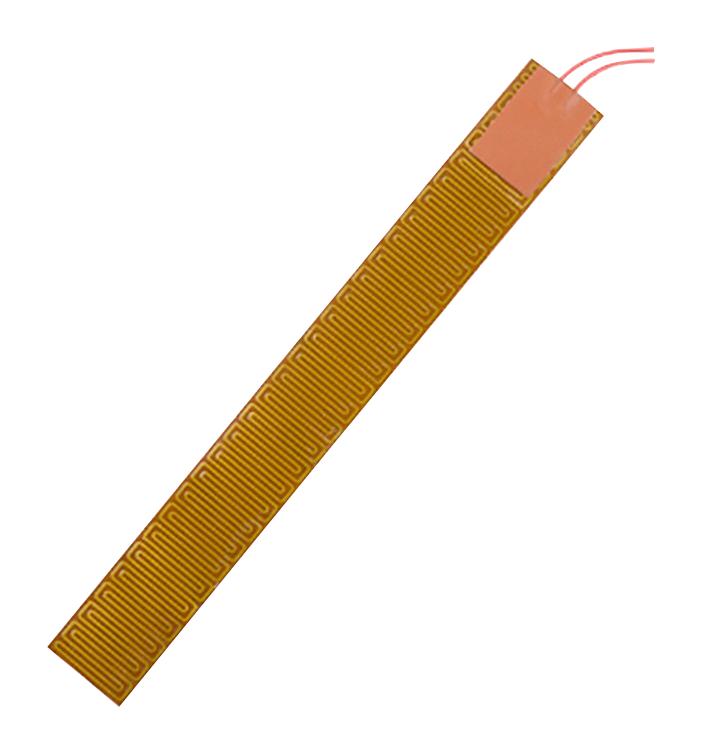

OMEGA KHLVA1042 Polyimide Heater
The KHLVA series polyimide film insulated heaters are flexible, lightweight, and designed for precision heating in industrial applications. Constructed with Inconel 600 resistive foil elements encased in polyimide material, these heaters offer an operating temperature up to 150°C (302°F). Available in various sizes and watt densities, they can be used with optional pressure-sensitive adhesive for easy application. Suitable for chemical resistance and versatile installation, these heaters are ideal for demanding environments requiring reliable, customizable thermal solutions.
OMEGA KHLVA1042 Polyimide Heater Specifications:
- Material: Polyimide film with Inconel 600 resistive foil
- Operating Temperature: -57°C to 150°C (without PSA), -40°C to 149°C (with PSA)
- Maximum Thickness: 0.010 inches
- Dielectric Strength: 1250 VAC for 1 second
- Minimum Bending Radius: 0.032 inches
- Wattage Ratings: 2.5, 5, or 10 W/in²
- Voltage: 115V, 230V, or 28V (configurable)
- Heaters equipped with UL 1180 PTFE insulated wiring, stranded AWG 22
- Optional pressure-sensitive adhesive (PSA) available for easy attachment
- Design ensures chemical resistance, flexibility, and precise heat delivery
- Provides reliable thermal performance for industrial and laboratory environments
Buy the Omega KHLVA1042 – Reliable Polyimide Film Heater for Industrial Applications
Order the Omega polyimide heater online today to benefit from high-quality, customizable thermal solutions suitable for demanding industrial environments. Designed with durable materials, these heaters feature Inconel foil encased in a flexible polyimide film, capable of operating up to 150°C (302°F). Available in various sizes, watt densities, and options for pressure-sensitive adhesive application, they ensure precise heat delivery, chemical resistance, and easy installation. Purchase now to ensure reliable, efficient heating performance tailored to your specific industrial needs.
Buy Omega KHLVA1042 now and experience unmatched reliability and performance in precise industrial heating solutions.
Frequently Asked Questions
Where can I buy OMEGA KHLVA1042?
You can click on the BUY or RFQ button to purchase KHLVA1042 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA1042?
You can download the KHLVA1042 datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA1042?
OMEGA
