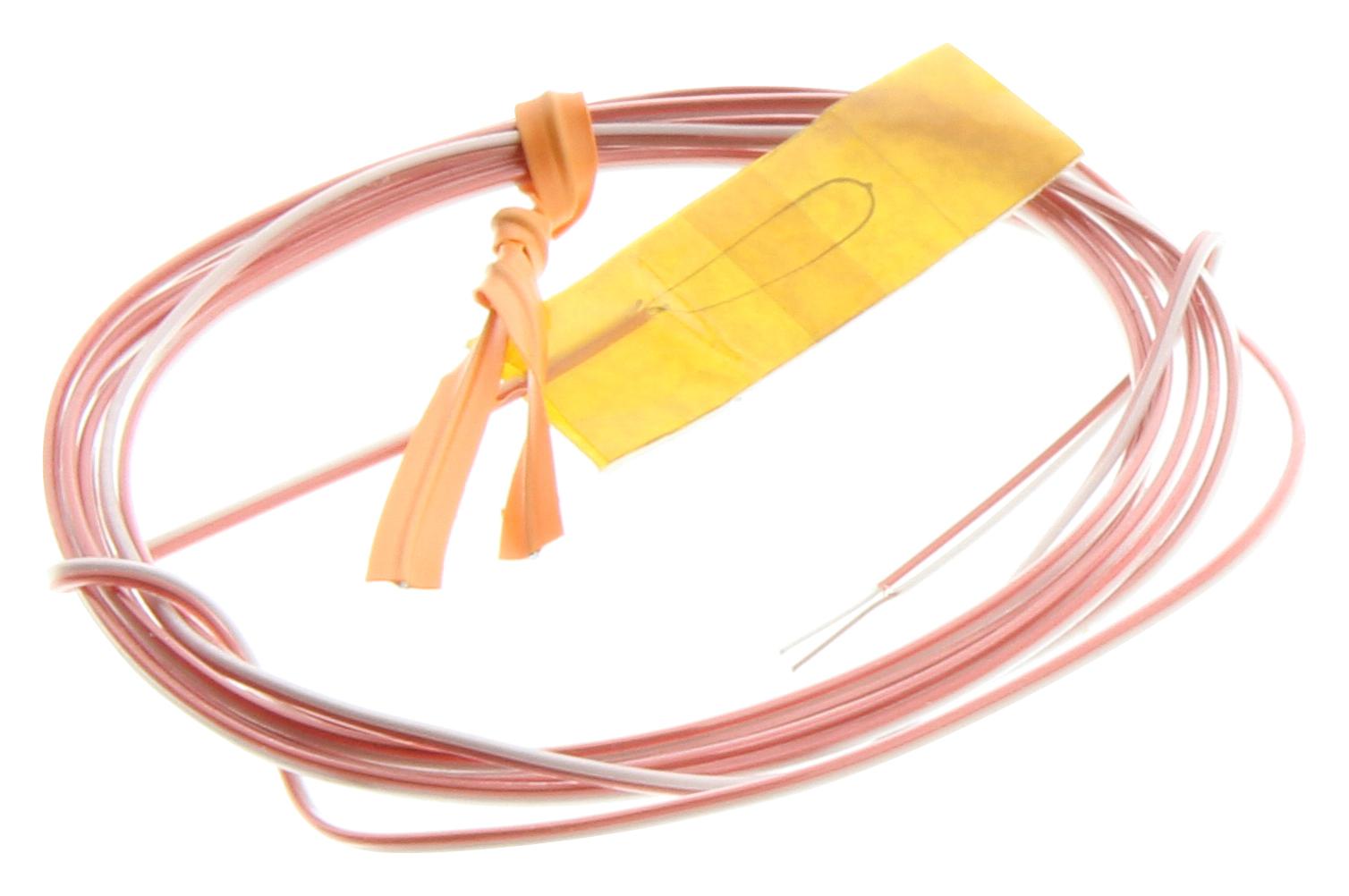

OMEGA SA3J Surface Thermocouple
The SA3 series self-adhesive surface thermocouples provide fast response temperature measurements in various environments, including outdoors and wet conditions. They feature a thin, flexible polyimide carrier with a self-adhesive backing, resistant to chemicals and oils. Suitable for ambient temperatures from -40°C to 260°C, these thermocouples are available in Type J, K, T, and E with ANSI or IEC color coding. Options include stripped leads or miniature connectors, ideal for precise, quick response applications across industrial, environmental, and scientific settings.
OMEGA SA3J Surface Thermocouple Specifications:
- Thermocouple Type: J, K, T, E (ANSI or IEC color codes)
- Accuracy: Special limits of error
- Junction Type: Ungrounded sensor construction
- Base Material: Polyimide tape with silicone adhesive and peel sheet
- Cover Material: Polyimide tape
- Cable: PFA insulated, jacketed 30 AWG wire
- Connector: Glass filled nylon (optional)
- Temperature Range: Sensor -17 to 260°C (0 to 500°F), Connector -29 to 180°C (-20 to 356°F)
- Insulation Resistance: Minimum 100 MQ at 100 VDC
- Adhesive: Self-adhesive backing with chemical and oil resistance
- Leads: Stripped #30 AWG or with miniature color-coded connector
- Dimensions: Sensor length approximately 1.01 mm (0.04 inch), width about 0.50 mm (0.02 inch)
Buy the Thermo Solutions Thermocouple – Reliable SA3 Series for Industrial Applications
Purchase the Thermo Solutions SA3 Series self-adhesive thermocouples online today to enjoy fast response time, high accuracy, and durable construction suitable for outdoor, wet, and industrial conditions. These flexible, chemically resistant sensors with optional miniature connectors are perfect for precise temperature monitoring in scientific and industrial environments. Easy to install with self-adhesive backing, they ensure reliable performance across a wide temperature range. Order now and enhance your temperature measurement capabilities with our trusted thermocouple solutions.
Order your Thermo Solutions SA3 Series thermocouple today and ensure quick, accurate temperature readings in challenging environments with our flexible, self-adhesive design.
