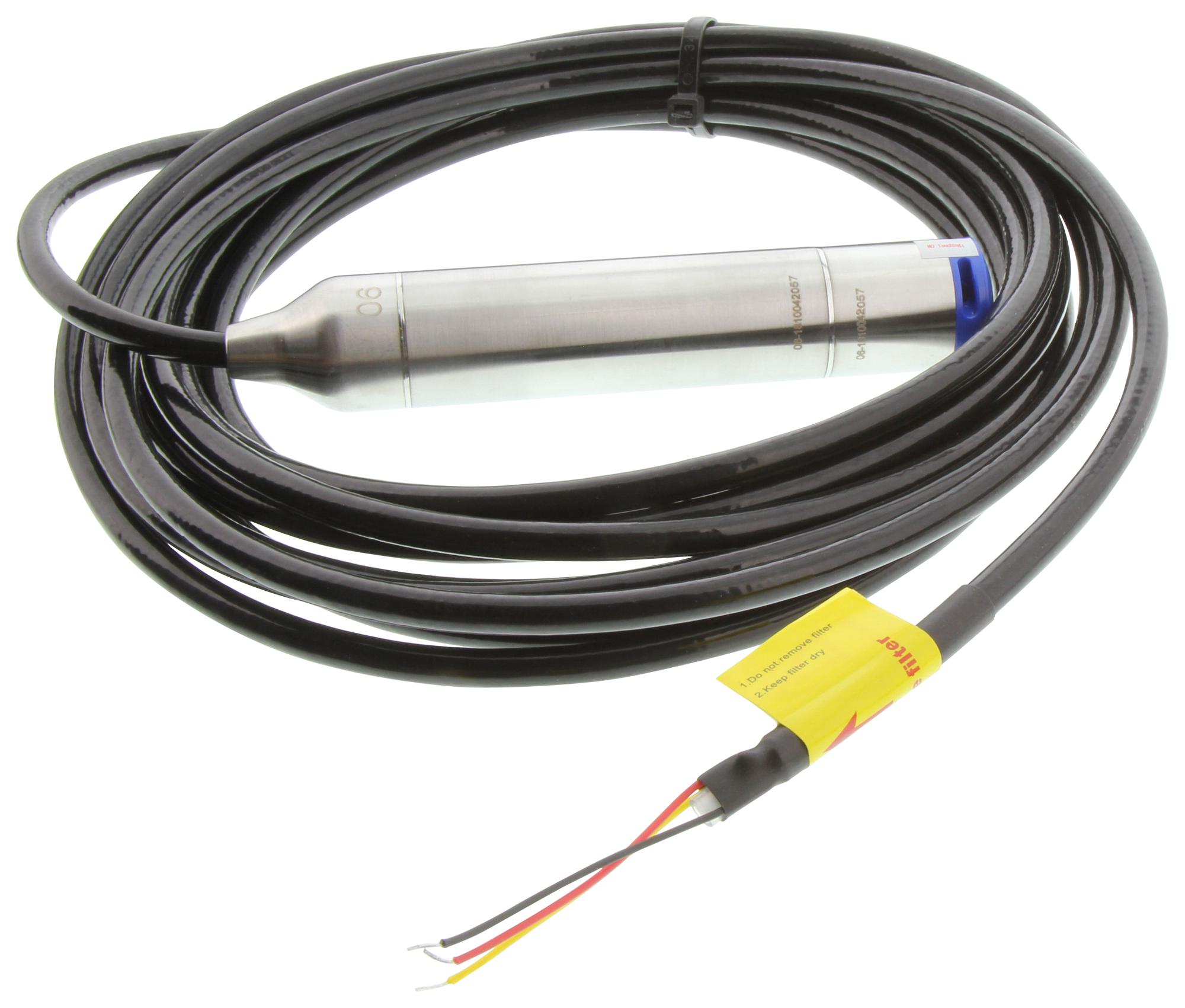

OMEGA PX633A1250GI Submersible Level Transmitter
The PX633A1250GI is a high-accuracy submersible level transmitter designed for demanding liquid level measurement applications. It features advanced microprocessor technology with temperature and linearity compensation, ensuring precise readings. Its rugged stainless steel body, dual seal design, and full potting provide long-term durability and reliable performance in turbulent, harsh environments. The sensor’s water-tight integrity is maintained by a unique cable seal system, making it ideal for continuous submersion. It is fully temperature compensated, CE certified, and tested for accuracy, stability, and environmental resilience. An excellent choice for industrial water and fluid level monitoring.
OMEGA PX633A1250GI Submersible Level Transmitter Specifications:
- Accuracy: 0.25% FS NLHR at 20°C, 0.01% FS NLHR for PX633A1
- Long Term Stability: +0.2% FS per year
- Temperature Effects: ±0.2% FS/10K from 20°C to 80°C
- Supply Voltage: 10.5 to 55 VDC
- Output Signal: 4 to 20mA DC with load resistance calculation (U-10)/0.021
- Maximum Current: 20.8mA
- Transmission Distance: up to 1000m
- Operating Temperature: -10°C to 70°C
- Storage Temperature: -30°C to 80°C
- Protection Class: IP68
- Sensor Material: 316 stainless steel
- Fill Fluid: Silicon oil
- Electrical Connection: PUR cable, ø7.5±0.2mm
- Diaphragm Material: 316 SS
- Certification: CE
Buy the Buy Omega PX633A1250GI Submersible Level Transmitter Part Number PX633A1250GI Online
Acquire the Omega PX633A1250GI submersible level transmitter online today. Engineered for high accuracy and reliability in harsh environments, it features advanced microprocessor technology, temperature compensation, and a rugged stainless steel body. Ideal for demanding liquid level measurement tasks, it provides precise readings with long-term stability and water-tight integrity. Its CE certification and comprehensive calibration ensure consistent performance. Order now for a dependable, durable solution designed for industrial fluid monitoring in challenging conditions.
Get Omega PX633A1250GI today—built for high accuracy, durability, and long-term stability for demanding level measurement applications.
