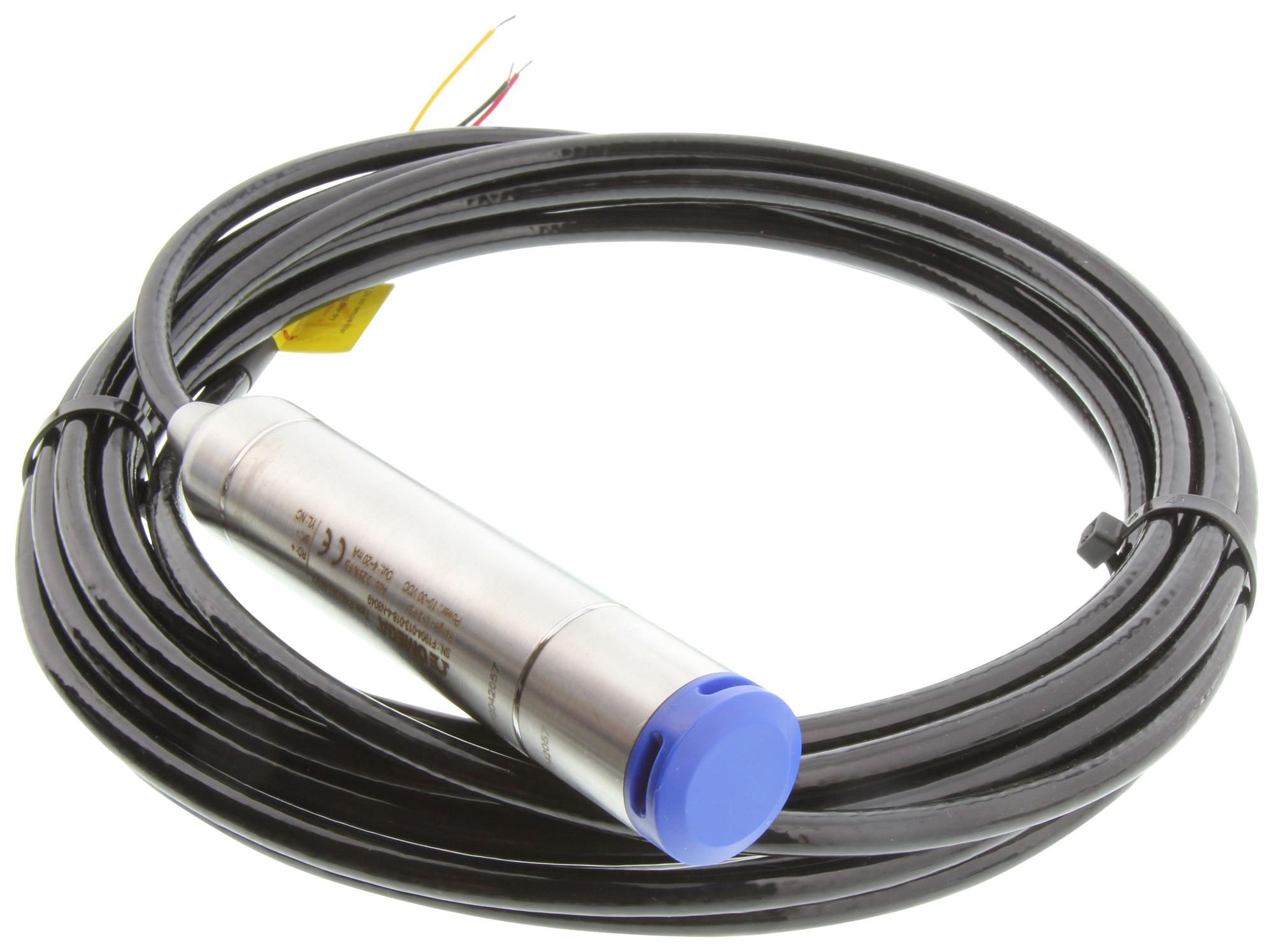

OMEGA PX633A2003GI Submersible Level Transmitter
The PX633 submersible level transmitter offers high accuracy and reliable performance in demanding liquid level measurement applications. Designed with a rugged stainless steel body, advanced microprocessor technology, and comprehensive temperature compensation, it ensures precise readings even under turbulent conditions. Its full potting and dual seal design protect against condensation and leaks, providing long-term stability. The transmitter features transient voltage protection and a unique cable seal system to maintain water-tight integrity. Suitable for various industrial environments, it combines durability with high measurement accuracy, making it ideal for critical level monitoring and control.
OMEGA PX633A2003GI Submersible Level Transmitter Specifications:
- Measurement Range: 0 to 3 psi, 0 to 5 psi, 0 to 15 psi, 0 to 30 psi, 0 to 100 psi, 0 to 150 psi, 0 to 250 psi, 0 to 300 psi
- Accuracy: 0.01% FS NLHR (PX633A1), 0.25% FS NLHR (PX633A2), 0.50% FS NLHR (PX633A5)
- Long Term Stability: +0.2% FS per year
- Operating Temperature: -10 to 70°C
- Supply Voltage: 10.5 to 55 VDC
- Output Signal: 4-20mA DC
- Protection Class: IP68
- Electrical Cable: PUR cable, 7.5mm diameter
- Sensor Material: 316 SS Diaphragm, O-ring seal
- Fill Fluid: Silicon oil
- Vibration Resistance: ≤0.1% FS at 20g (5-2000Hz)
- Maximum Transmission Distance: < 1000m
- Power Consumption: 500mW at 24VDC
- Certifications: CE
Buy the OMEGA PX633 – Reliable Level Transmitter for Industrial Applications
Discover the advanced PX633 submersible level transmitter designed for precise liquid level measurement in demanding environments. Its rugged stainless steel construction, full potting, and dual seal design ensure long-term stability and water-tight integrity even in turbulent media. Featuring microprocessor-based technology with temperature compensation, this transmitter provides high accuracy and repeatability. It’s ideal for critical industrial applications requiring reliable performance under harsh conditions. Purchase online today to enhance your level monitoring systems with durable, high-precision technology from a trusted brand.
Order your OMEGA PX633 series high-accuracy submerged level transmitter today and ensure reliable liquid level measurement in demanding industrial environments.
