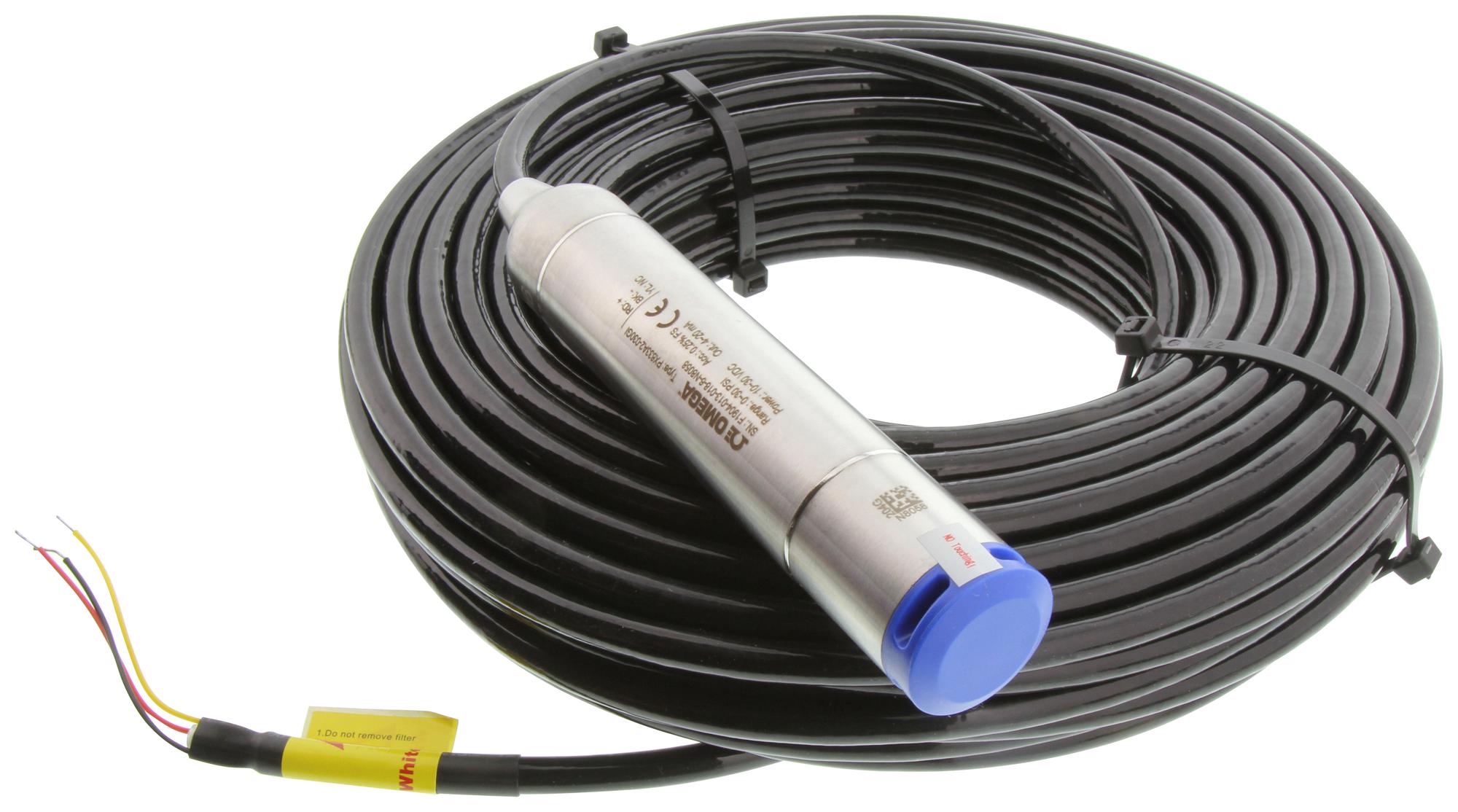

OMEGA PX633A2030GI Submersible Level Transmitter
The PX633 submersible level transmitter provides high accuracy level measurement in demanding environments. It features advanced microprocessor technology, comprehensive temperature compensation, and a rugged stainless steel body for reliability. The device is fully submersible with a unique cable seal system ensuring water-tight integrity, making it ideal for applications requiring long-term stability and precision in turbulent process media. It includes a CE certificate, calibration certifications, and a transmitting module with transient voltage protection for harsh surge environments, ensuring performance in industrial grade settings.
OMEGA PX633A2030GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS (PX633A1), 0.25% FS (PX633A2), 0.50% FS (PX633A5)
- Long Term Stability: +0.2% FS per year
- Ambient Temperature Effects: 40.2% FS/10K (20°C to 80°C)
- Power Supply: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Transmission Distance: up to 1000m
- Protection Class: IP68
- Materials: Stainless steel body, Silicon oil fill fluid, FMK O-ring seal
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Electrical Connection: PUR cable, diameter 7.5mm
- Sensor Seal: O-ring, FMK
- Diaphragm Material: 316 SS
- Side Cover Material: 316 SS, diameter 28mm
Buy the Omega Series PX633 Submersible Level Transmitter: PX633A2030GI
Purchase the Omega PX633 submersible level transmitter online to ensure accurate level measurements in challenging media conditions. This robust device offers high precision, temperature compensation, and water-tight integrity, making it ideal for industrial applications such as water treatment, tank level monitoring, and process control. With certification, calibration, and a durable stainless steel body, it guarantees reliable long-term performance. Order now to enhance your measurement capabilities with a trusted, precision-engineered sensor designed for demanding environments and harsh conditions.
Get Omega PX633A2030GI today—built for high-precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA PX633A2030GI?
You can click on the BUY or RFQ button to purchase PX633A2030GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX633A2030GI?
You can download the PX633A2030GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX633A2030GI?
OMEGA
