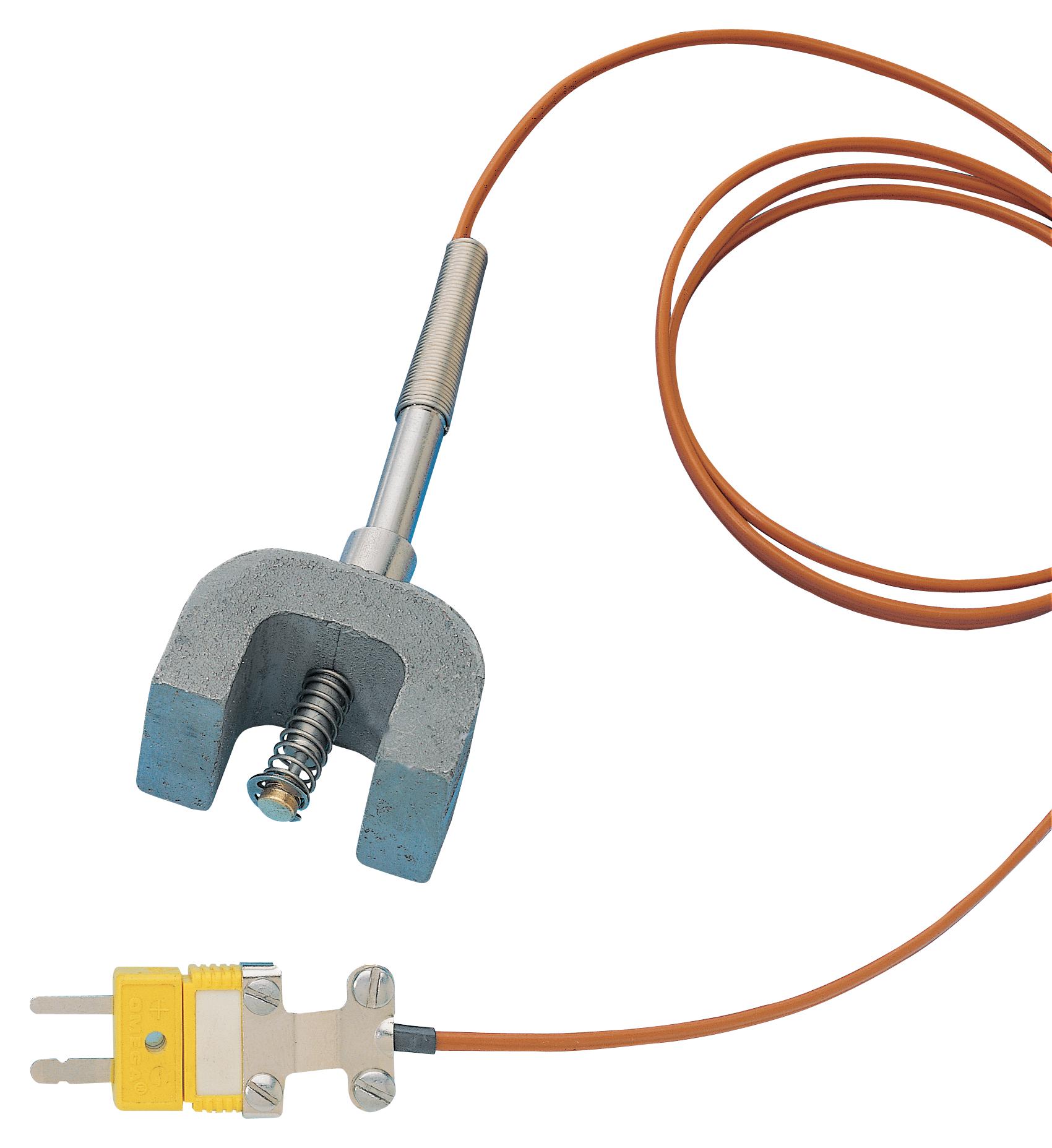

OMEGA MP1K36SMPWM Magnetic Thermocouple Probe
The magnetic mount thermocouple probe features a compact size with SS overbraided glass lead wires and optional PFA insulation, suitable for high-temperature environments up to 370°C (700°F). It uses SMPW subminiature connectors with a write-on window for easy identification. Available as single or dual magnet models with handle, these probes are ideal for surface temperature measurements on ferrous materials. They provide reliable retention, quick setup, and are compatible with types J, K, E, or T thermocouples for precise temperature monitoring in industrial applications.
OMEGA MP1K36SMPWM Magnetic Thermocouple Probe Specifications:
- Lead Wires: 1 m (40") SS overbraided glass insulated, optional PFA insulated with suffix “TT” for additional cost
- Magnet Dimensions: MP2 - 108 H x 64 W x 25 mm D (4.3 x 2.5 x 1.5 inches); MP1 - 25 H x 38 W x 25 mm D (1.0 x 1.5 x 1.0 inches)
- Material: Stainless steel overbraided glass insulation, optional PFA insulation for higher temperature resistance
- Temperature Rating: Up to 370°C (700°F)
- Connector Type: SMPW subminiature connector with write-on window
- Probe Type: Single or dual magnet with handle, compatible with J, K, E, T thermocouples
- Additional features: Spring-mounted, retains ~90% of pull force, optional ungrounded configuration available
- Ordering: Specify calibration type, model number, and optional PFA insulation; example MP1-K-36-SMPW-M-TT
Buy the Magnets Thermocouple Mount – Reliable Surface Probe for Industrial Applications
Enhance your industrial temperature measurements with this magnetic thermocouple probe featuring SS overbraided glass wires and optional PFA insulation. Its compact, durable design allows reliable contact with ferrous surfaces up to 370°C (700°F). Available in single or dual magnet models with handle, it supports types J, K, E, and T thermocouples. Easy to install and maintain, this probe offers accurate and quick surface temperature readings, making it an essential tool for manufacturing and maintenance professionals worldwide.
Buy Magnet Mount thermocouple probe now and ensure precise temperature measurement with durable, high-temperature rated magnetic surface sensing solutions.
