OMEGA SA1XLJ120 Surface Thermocouple
The SA1XL surface thermocouple provides fast response times for temperature measurement in industrial environments. Featuring fiberglass-insulated leads rated up to 900°F (482°C), it can be self-adhesive or cemented onto surfaces for durability. Available in multiple lengths including 1, 2, and 3 meters, with optional stainless steel overbraid for enhanced durability. The thermocouple supports J, K, T, and E thermocouple types, with a built-in miniature connector for easy installation. It is suitable for temperature ranges up to 600°F (315°C) when cemented and offers quick, reliable readings for process monitoring and control.
OMEGA SA1XLJ120 Surface Thermocouple Specifications:
- Thermocouple Types: J, K, T, E
- Lead Wire Rating: 482°C (900°F)
- Lead Wire Diameter: 30 AWG
- Response Time: Less than 0.15 seconds
- Temperature Range: Up to 315°C (600°F) when cemented, up to 260°C (500°F) when self-adhesive
- Lead Lengths Available: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches)
- Insulation Material: Fiberglass
- Connector: Molded miniature connector with optional strain relief
- Biread Option: Stainless steel overbraid (model suffix -SB)
- Adhesive: Silicone-based, rated to 260°C (500°F)
- Cement Set: OMEGABOND® high-temperature sets available
- Dimensions: Strip length approximately 25.4 mm (1 inch), bare wire length 12.7 mm (0.5 inch)
- Certifications: Suitable for industrial temperature monitoring and process control
- Response Time: Approximate patch response in less than 0.15 seconds

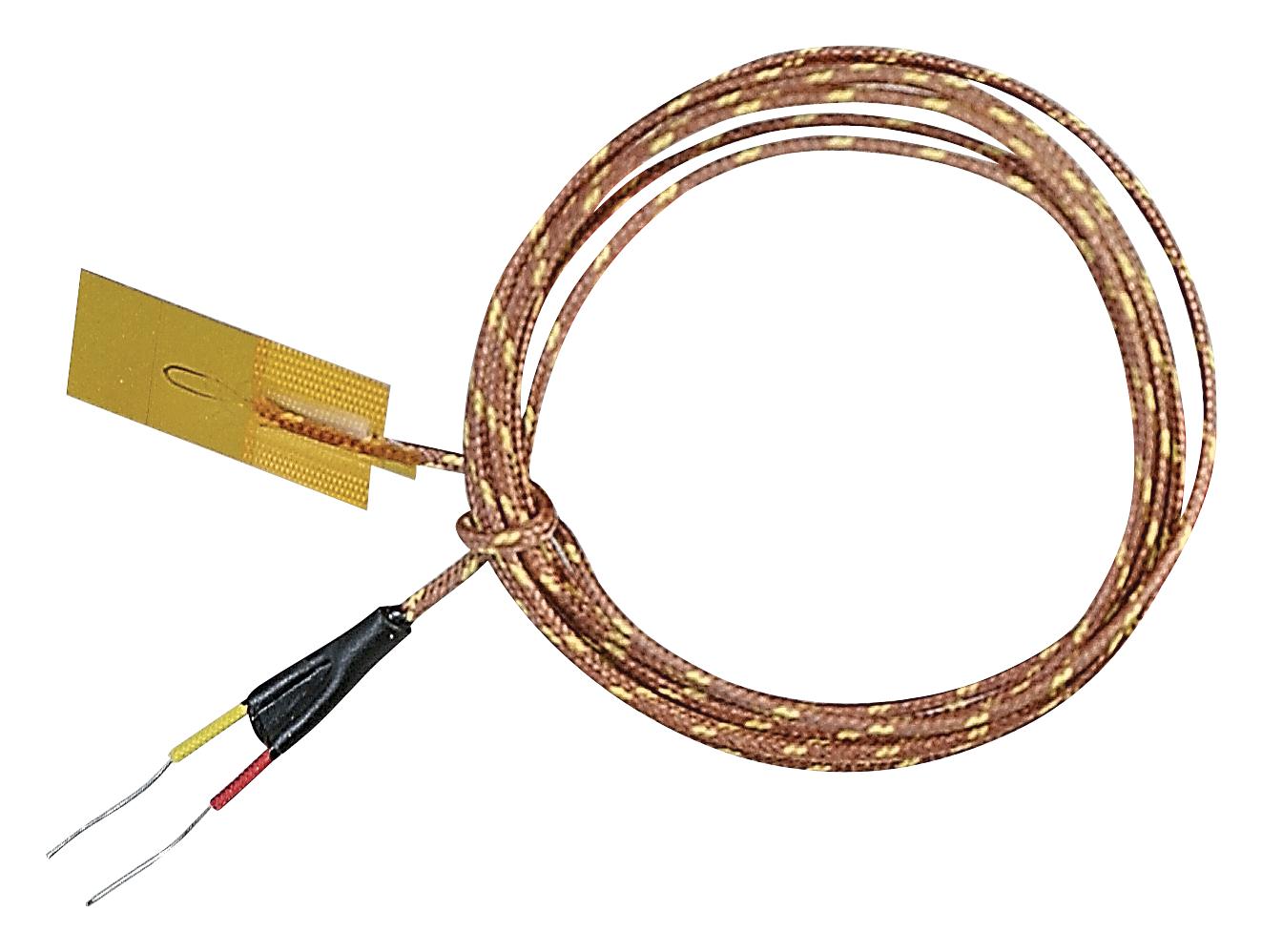

Buy the Omega Series SA1XL Thermocouple: SA1XL-K-120
Purchase Omega Series SA1XL surface thermocouple online today for fast, accurate temperature measurements. Designed with fiberglass-insulated leads, it offers quick response times less than 0.15 seconds. Suitable for surface temperature monitoring in industrial settings, it supports multiple thermocouple types including J, K, T, and E. Available in lengths of 1, 2, and 3 meters, with optional stainless steel overbraid for added durability. Easy to install, self-adhesive or cemented, perfect for process control or electronic component testing.
Get Omega Series SA1XL thermocouple today—designed for rapid temperature detection and long-lasting performance in industrial applications.
Frequently Asked Questions
Where can I buy OMEGA SA1XLJ120?
You can click on the BUY or RFQ button to purchase SA1XLJ120 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA1XLJ120?
You can download the SA1XLJ120 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA1XLJ120?
OMEGA
