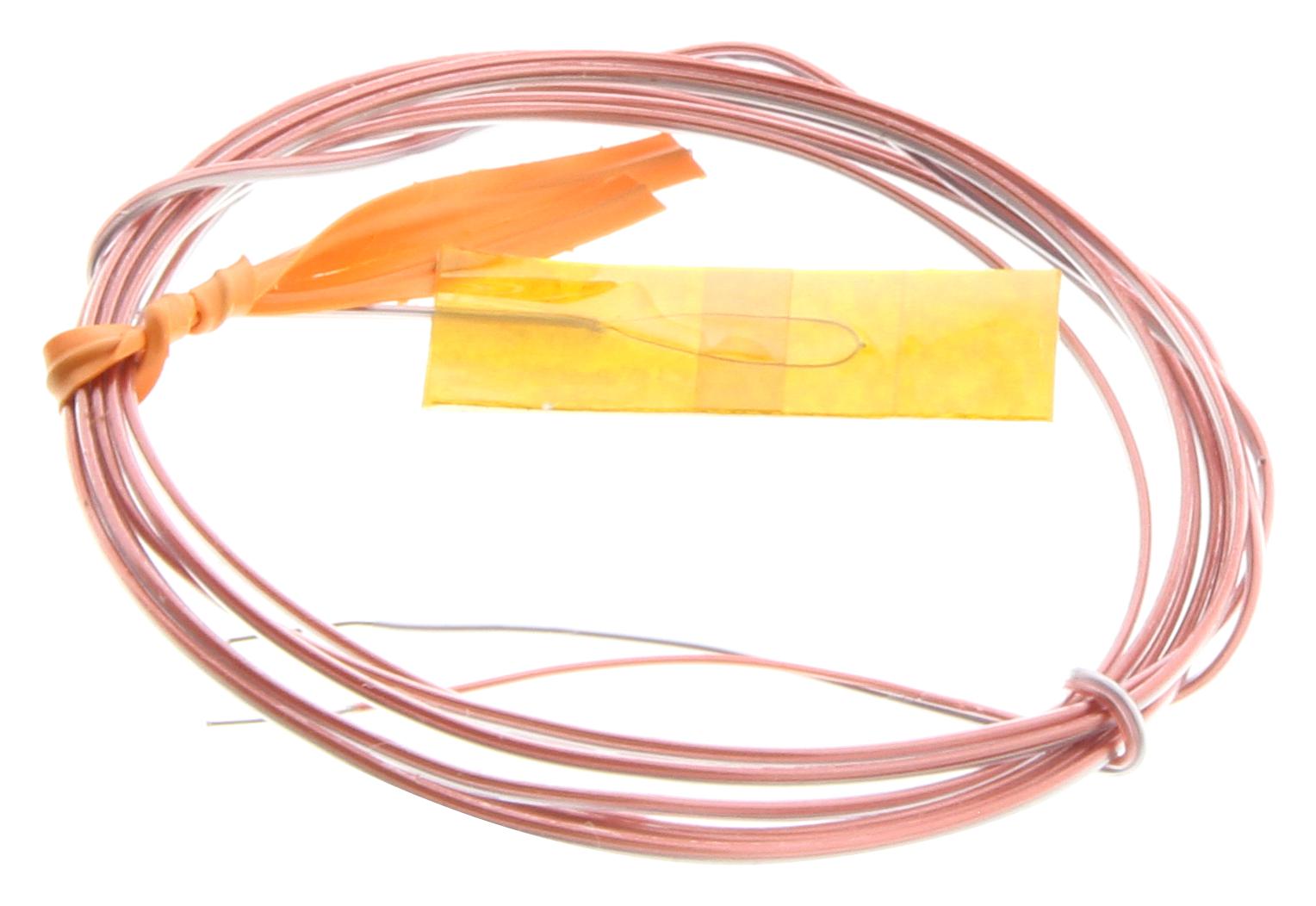

OMEGA SA3K6SRTC Fast Response Surface Thermocouple
The SA3 Series Fast Response Surface Thermocouples feature a polyimide carrier with self-adhesive backing, designed for rapid temperature measurement in demanding environments. Suitable for outdoor and wet settings, these thermocouples offer high accuracy, resistance to chemicals and oils, and quick response times due to their low mass junction. Available in Type J, K, T, and E with ANSI or IEC color codes. They come with options for solid leads or miniature color-coded connectors, ensuring versatile installation in industrial, chemical, or research applications.
OMEGA SA3K6SRTC Fast Response Surface Thermocouple Specifications:
- Thermocouple Types: J, K, T, E with ANSI or IEC color codes
- Accuracy: Special limits of error
- Junction Type: Ungrounded sensor construction
- Base Material: Polyimide tape with silicone adhesive
- Cover Material: Polyimide tape
- Cable: PFA insulated, jacketed 30 AWG wire
- Connector Options: Glass-filled nylon or miniature color-coded connectors
- Temperature Range: Sensor -17 to 260°C (0 to 500°F), Connector -29 to 180°C (-20 to 356°F)
- Insulation Resistance: Minimum 100 MQ at 100 Vdc
- Lead Lengths Available: 1m, 2m, 3m
- Environmental Suitability: Outdoor, wet, sunlight resistant
- Construction: Fast response, low mass junction, flexible mounting pad
Buy the Thermocouple Series SA3 K: SA3K6SRTC
Experience precise temperature measurement with the SA3 Series fast response thermocouple, designed for outdoor, wet, and chemical environments. The self-adhesive backing ensures easy installation on various surfaces, while its rapid response junction provides accurate readings essential for process control and research. Available with solid leads or miniature connectors, these thermocouples withstand sunlight, oils, and chemicals, making them ideal for industrial, chemical, and environmental applications. Order online today for reliable, fast temperature measurement solutions.
Buy SA3K6SRTC fast response self-adhesive thermocouple now and ensure quick, accurate temperature measurements in harsh industrial environments.
