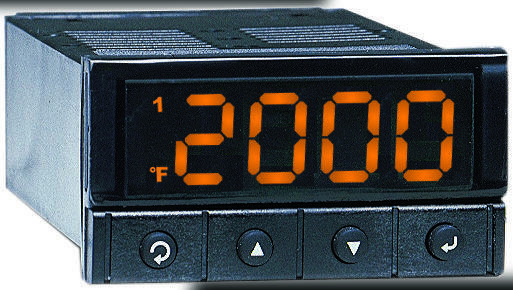

OMEGA DPI32DC Process and Temperature Meter
The DPI32DC is a highly accurate and compact process and temperature meter designed for industrial applications. It offers programmable color displays, multiple universal inputs including thermocouple, RTD, voltage, current, and strain, and features built-in excitation for transmitters and transducers. With RS232 and RS485 serial communication, 2 control outputs, and analog retransmission, it provides versatile control and monitoring. Its robust design includes a NEMA-4 (IP65) front bezel, easy configuration via free software, and a 5-year warranty, making it ideal for precise industrial process control.
OMEGA DPI32DC Process and Temperature Meter Specifications:
- Display: Programmable color display with 9-segment LED characters
- Inputs: Thermocouple, RTD, process voltage/current, strain
- Built-in excitation: 24 Vdc @ 25 mA for transmitters; 5 Vdc @ 40/60 mA for bridge transducers
- Serial communication: RS232 and RS485 interfaces
- Control outputs: Two SPDT relays, SSRs, or analog voltage/current outputs
- Dimensions: 0.906 inches (22.99 mm) panel thickness compatible
- Temperature stability: ±0.04°C/°C RTD and ±0.05°C/°C thermocouple at 25°C
- Protection: NEMA-4 (IP65) front bezel, front removable connectors
- Power supply: 90-240 Vac, 50-60 Hz
- Linearization: 10-point for nonlinear transducers
- Control features: Full autotune PID control and programmable alarm setpoints
Buy the Omega DPI32DC – Reliable Temperature and Process Monitoring for Industrial Applications
Enhance your industrial monitoring with the Omega DPI32DC process and temperature meter. Featuring programmable color display, universal inputs including thermocouple, RTD, voltage, and current, and built-in excitation, it provides precise control. Its durable design includes a NEMA-4 front bezel, RS232 and RS485 serial interfaces, and two control relays. Perfect for demanding environments, this meter offers full autotune PID control, linearization for nonlinear transducers, and a 5-year warranty. Order online today for reliable industrial process management.
Buy Omega DPI32DC now and experience unmatched precision and versatile control for industrial temperature and process measurement needs.
