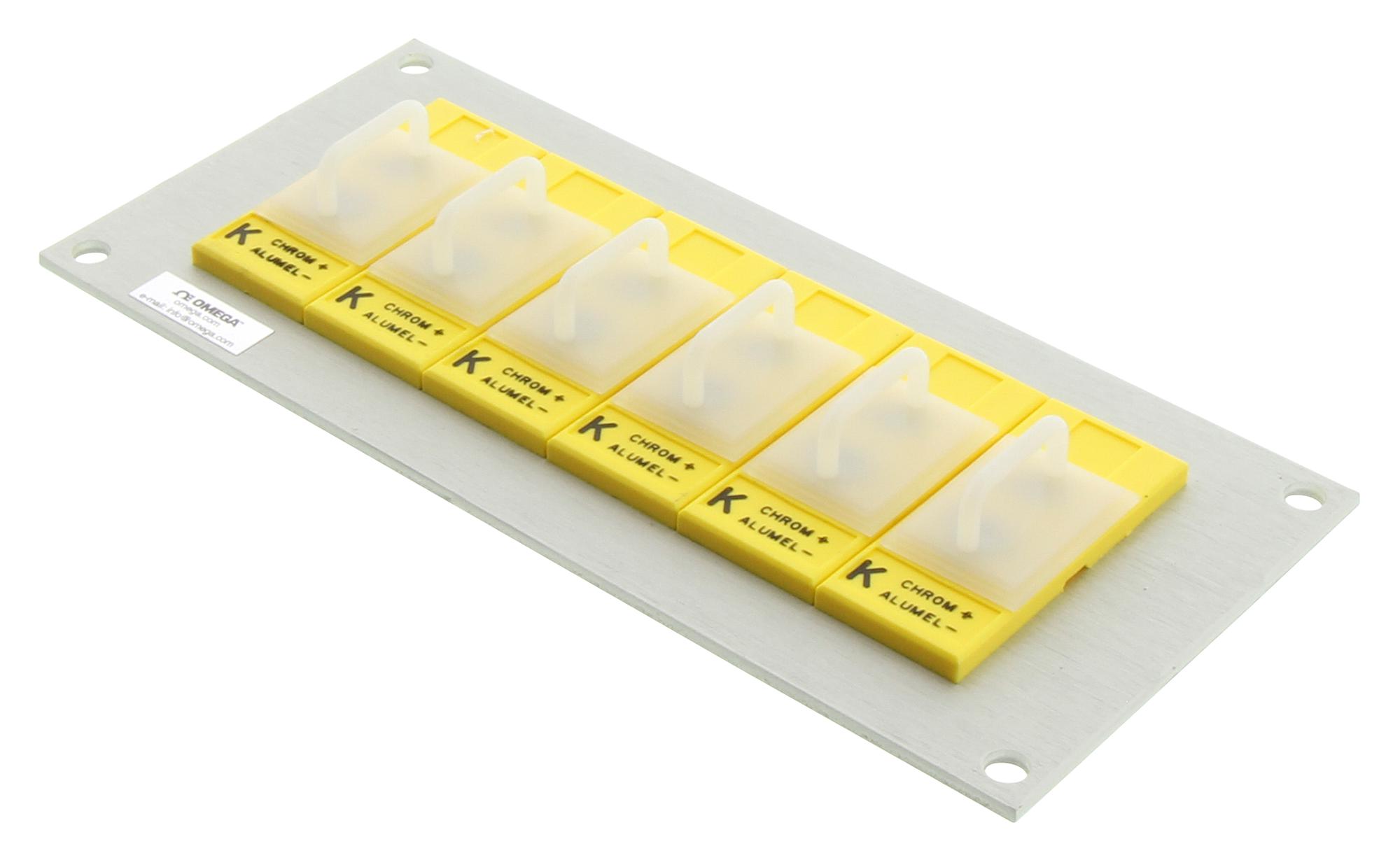

OMEGA SJP106K Thermocouple Connector Panel
The Jack Panels in the SJP Series are color-coded, fully assembled, and easy-to-install modules designed for thermocouple connections. Made from durable brushed anodized aluminum and featuring rugged snap-in female connectors, these panels accept wires up to 14 AWG. The high-impact plastic connector bodies withstand temperatures up to 205°C (401°F), ensuring reliable performance in industrial environments. Available in various configurations, these panels facilitate organized, corrosion-resistant thermocouple connections, suitable for lab and field applications. Custom sizes, color coding, and calibration options are available upon request.
OMEGA SJP106K Thermocouple Connector Panel Specifications:
- Material: 2.3 mm (0.09") anodized aluminum with brushed finish
- Connector Type: Snap-in female thermocouple connectors with collet-type terminals
- Wire Compatibility: Accepts wires up to 14 AWG
- Maximum Service Temperature: 205°C (401°F)
- Panel Dimensions: Standard size fabricated from durable aluminum
- Hole Spacing: 4.8 mm (0.19") on both sides
- Mounting Hole Diameter: 4.8 mm (0.19") for #8 screw
- Calibration Options: J, K, T, E, R, S, N, U
- Assembly: Fully assembled, color-coded, customizable panels
- Additional Features: Clear anodized for durability and corrosion resistance, accepts standard or miniature thermocouple connectors
Buy the Omega Series SJP Thermocouple Connector Panel: SJP106K
Order the Omega Thermocouple Connector Panel SJP106K online today to experience reliable, corrosion-resistant thermocouple connections. Crafted from robust anodized aluminum and equipped with snap-in female connectors, this panel is ideal for industrial temperature measurement. It accepts wires up to 14 AWG and can be customized with various calibrations like J, K, T, and more. Suitable for lab and field applications, it ensures organized, durable, and precise thermocouple connections. Purchase online now for fast delivery and superior performance.
Get Omega SJP106K today—built for precision, durability, and customizable thermocouple connections in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA SJP106K?
You can click on the BUY or RFQ button to purchase SJP106K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SJP106K?
You can download the SJP106K datasheet or visit the OMEGA website for support.
Who is the manufacturer of SJP106K?
OMEGA
