OMEGA SLPSS4048 Industrial Power Supply

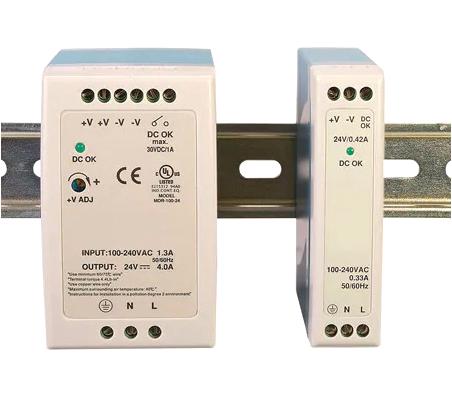

The SL-PS series of power supplies provides a reliable DC power source for industrial control systems, including PLCs, sensors, and switches. These compact, space-saving units are designed to install easily on 35 x 7.5mm or 35 x 15mm DIN rails, offering protections against short circuits, overloads, and over-voltages. They feature universal AC inputs, a power-on LED indicator, and a built-in DC OK signal or relay contact for status monitoring. UL/CUL listed, CE marked, and NEC Class 2 compliant, they ensure safety and reliability in diverse industrial environments, with models supporting up to 100 W output power.
OMEGA SLPSS4048 Industrial Power Supply Specifications:
- Input Voltage: 85 to 264 Vac, 47 to 63 Hz, 120 to 370 Vdc
- Output Voltage: 24 Vdc
- Output Power: 10W to 100W depending on model
- Current: 0.42A to 4A
- Ripple and Noise: 150 mVp-p
- Voltage Tolerance: +1%
- Line and Load Regulation: +1%
- Working Temperature: -20 to 70°C
- Working Humidity: 20 to 90% RH non-condensing
- Dimensions: 90 H x 100 mm D, width varies per model
- Protections: Short circuit, overload (105-160%), overvoltage
- Efficiency: 84 to 88%
- Certifications: UL508, EN60950-1, UL/CUL Listed, CE marked, NEC Class 2
- Withstand Voltage: I/P-0/P 3k Vac; I/P-FG 1.5k Vac
- Insulation Resistance: 100 MΩ at 500 Vdc
- EMI Compliance: EN55011, EN55022 (CISPR22), EN61204-3 Class B
- Harmonic Current: EN61000-3-2, 3
Buy the Buy SEAR Power Supply Part Number SLPSS4048 Online
Purchase the SEAR industrial power supply online and ensure reliable energy for your control systems. This efficient, UL-listed unit offers 24V output with protection features like short circuit, overload, and overvoltage. Its DIN rail mounting allows easy installation in compact control cabinets, saving space without compromising performance. Designed for harsh environments, it supports wide input voltages, includes a DC OK signal or relay contact, and has passed rigorous burn-in testing to guarantee durability. Elevate your industrial automation with trusted, high-quality power supplies available online today.
Buy SEAR SLPSS4048 now and experience unmatched reliability and performance with space-saving design and comprehensive protections for industrial control systems.
