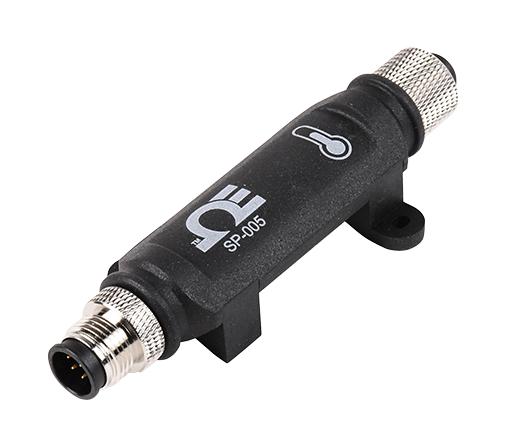

OMEGA SP0051 Thermocouple and RTD Smart Probe
The Layer N SP-005 thermocouple and RTD smart probe provides an easy and flexible solution for temperature measurement, integrating standard thermocouples and RTDs through M12 connectors. It supports up to two thermocouple inputs or one RTD input with 2, 3, or 4-wire configurations, and features plug-and-play connectivity, smart data logging, integrated alarms, and sensor health monitoring. The device is compatible with Layer N ecosystem software, offering configuration via SYNC, cloud data access, and modular smart interfaces. Designed for industrial environments, it combines reliability, advanced data management, and ease of installation for precise temperature control applications.
OMEGA SP0051 Thermocouple and RTD Smart Probe Specifications:
- Input Power: 2.8 Vo. - 3.3 Voc
- Digital Inputs: 2.2 V threshold, 3 Vein
- Digital Outputs: 2x Open Drain 100 mA max, Vutax = 30 Voc
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Rating: IP67 when mated
- Dimensions: 22.1 mm W x 96.7 mm L (0.87” x 3.80”), excluding mounting tabs
- Agency Approvals: CE, EMC 2014/30/EU, LVD 2014/35/EU
- Compatible with Layer N Ecosystem, SYNC software, Layer N Cloud, and Modbus networks
- Supports multiple thermocouple types (J, K, T, E, N, R, B, C) with specified ranges and accuracies
- RTD Types: Pt100, PT1000, with temperature ranges up to 850°C, varying accuracies (0.3°C to 0.6°C)
- Mechanical: Modular M12 construction, plug & play design, sensor health monitoring
- Environmental: IP67 rated, suitable for industrial temperature environments
- Connectors: M12 4-pin, 8-pin, screw terminal options, and cables for flexible installation
Buy the Buy OMEGA Thermocouple and RTD Smart Probe Model SP-005-1 Online
Order the OMEGA SP-005-1 thermocouple and RTD smart probe today to enhance your temperature sensing capabilities. This advanced device supports up to two thermocouple inputs or a single RTD, featuring plug-and-play connectivity, data logging, and integrated alarms. Its modular design with M12 connectors allows flexible installation in demanding environments. Compatible with Layer N ecosystem, it enables seamless data access via cloud and software configuration. Invest now to ensure accurate, reliable temperature monitoring tailored for industrial applications, backed by OMEGA's quality and innovation.
Get OMEGA SP-005-1 thermocouple and RTD smart probe today—built for precise temperature measurement and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA SP0051?
You can click on the BUY or RFQ button to purchase SP0051 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SP0051?
You can download the SP0051 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SP0051?
OMEGA
