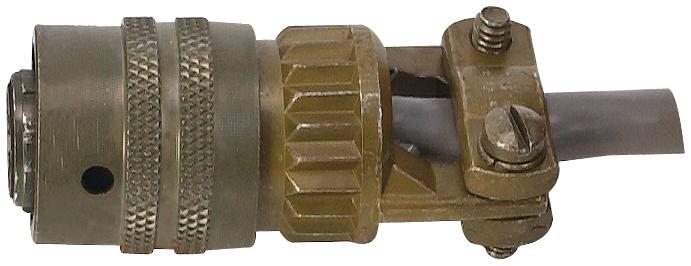

OMEGA CA4PC242A015 Miniature Universal Load Cell
OMEGA's LC203/LC213 series offers a high-accuracy, miniature, low-profile industrial load cell ideal for test stands and locations with limited space. Constructed with tough, corrosion-resistant steel and high-accuracy strain gauges, these load cells are suitable for a wide range of industrial weighing applications. Available in cable (LC203) or connector (LC213) styles, and with a variety of capacity ranges, these load cells provide versatile solutions for various measurement needs. A 5-point NIST traceable calibration certificate is included with each load cell.
OMEGA CA4PC242A015 Miniature Universal Load Cell Specifications:
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V ±0.25%
- 5-Point Calibration: in Tension: 0%, 50%, 100%, 50%, 0%
- Linearity: ±0.15% FSO
- Hysteresis: ±0.1% FSO
- Repeatability: ±0.05% FSO
- Zero Balance: ±2% FSO
- Deflection: 0.025 to 0.075 mm (0.001 to 0.003")
- Protection Class: IP65
- Operating Temp Range: -46 to 107°C (-50 to 225°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Thermal Effects Zero: 0.006% FSO/°C
- Thermal Effects Span: 0.009% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: 360 Ω minimum
- Output Resistance: 350 ±10 Ω
- Construction: Stainless steel
- Electrical: 3 m (10') 4-conductor PVC shielded cable
- Mating Connector: PT06F10-6S, sold separately
