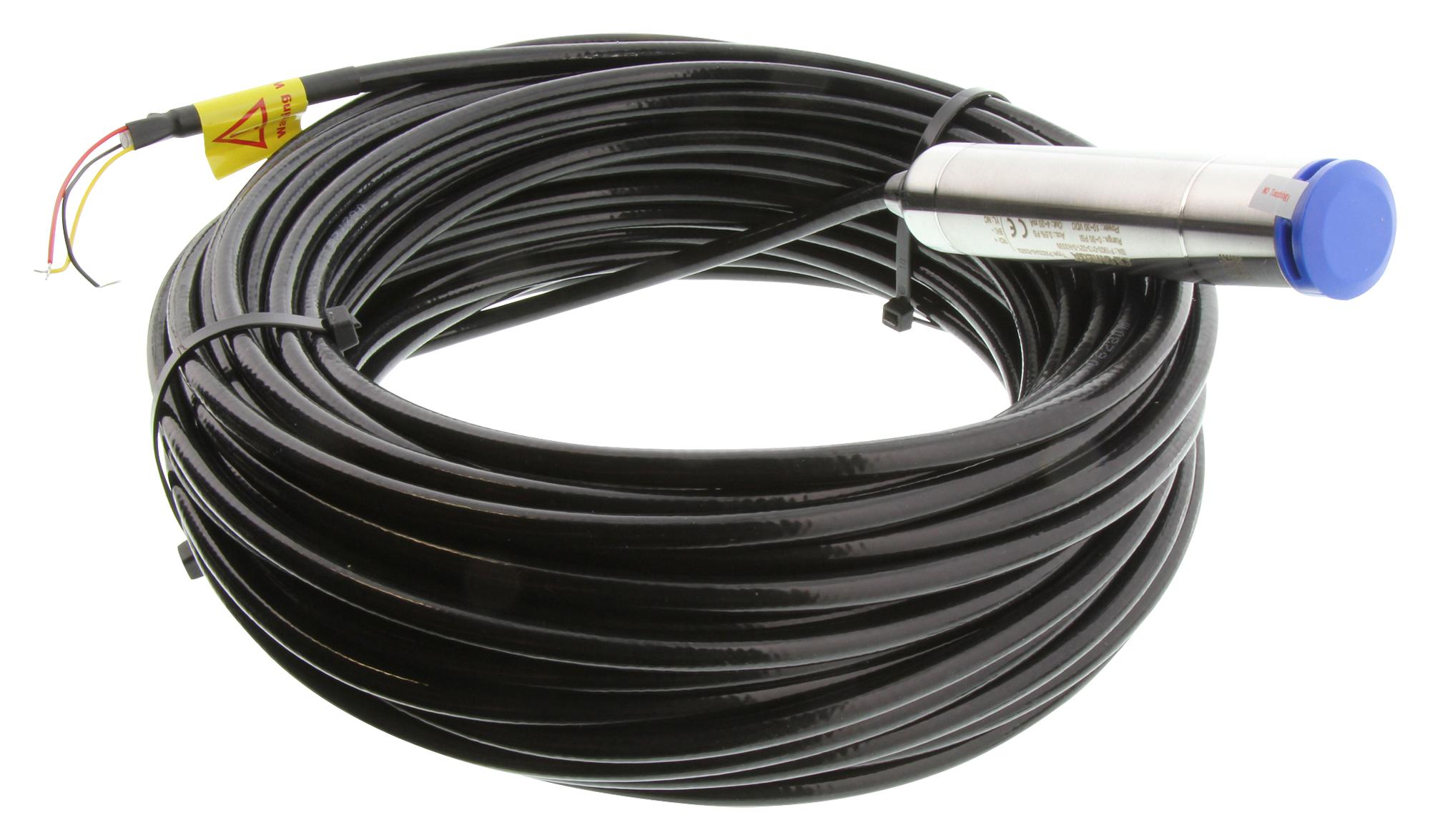

OMEGA PX633A5030GI Submersible Pressure Transmitter
The PX633 high accuracy submersible pressure transmitter is designed for demanding level measurement applications. Featuring advanced microprocessor technology, it offers high-precision readings with optional accuracies up to 0.1%. The device employs a rugged stainless steel body, full potting, dual seals, and a unique cable seal system for water-tight integrity. Suitable for submerged conditions, it ensures long-term reliability, stability, and performance even in turbulent environments. Optional calibration and CE certification enhance its suitability for diverse industrial and environmental monitoring projects.
OMEGA PX633A5030GI Submersible Pressure Transmitter Specifications:
- Accuracy: 0.01% FS NLHR (PX633A1), 0.25% FS NLHR (PX633A2), 0.50% FS NLHR (PX633A5)
- Long Term Stability: +0.2% FS/year
- Ambient Temperature Effects: 40.2% FS/10K from 20°C to 80°C
- Power Supply: 10.5 to 55VDC, maximum current 20.8mA, power consumption 500mW
- Output Signal: 4 to 20mA DC, load resistance < (U-10)/0.021
- Operating Temperature: -10 to 70°C, Storage: -30 to 80°C
- Protection Class: IP68, electrical connection via PUR cable with 7.5mm diameter
- Sensor Material: 316 Stainless Steel, Fill Fluid: Silicon Oil, Seal: O-ring FMK
- Maximum Transmission Distance: 1000m, Vibration resistance: 20g, EMC compliant according to GB/T 9254 and IEC standards
Buy the OMEGA PX633 – Reliable Submersible Pressure for Industrial Applications
Purchase the OMEGA PX633 submersible pressure transmitter online and ensure precise, reliable level measurement for demanding industrial and environmental monitoring. Designed with advanced technology, it features rugged stainless steel construction, high accuracy options up to 0.1%, and comprehensive environmental protection, including IP68 rating. Its long-term stability, temperature compensation, and water-tight cable seal system make it ideal for submerged applications in turbulent and harsh conditions. Order now for a durable, high-performance level measurement solution delivered quickly and with professional support.
Get OMEGA PX633 today—built for high-accuracy level measurements in demanding industrial environments.
