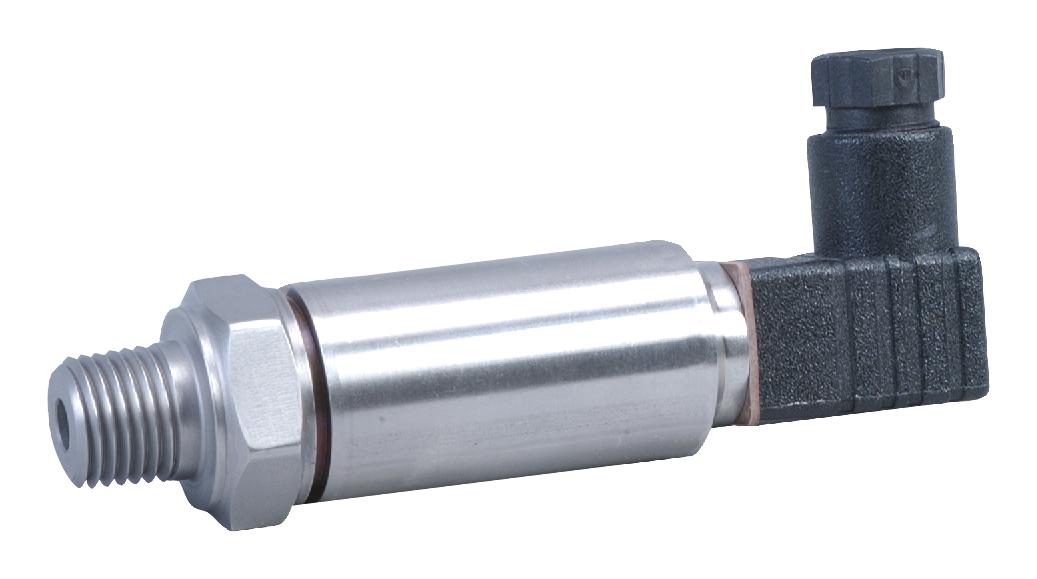

OMEGA PX3193KGI Pressure Transducer
The PX319 series high-performance pressure transducer is crafted from stainless steel, utilizing advanced silicon technology for precise measurements. It provides a ±0.25% accuracy of full scale, suitable for gauge and absolute pressure from 0 to 207 bar (0 to 3000 psi). With a rugged, solid-state design, it features a 4 to 20 mA output, excellent long-term stability, and low drift. Protected to IP65, operating from -40°C to 85°C, it includes a 5-point NIST calibration, and has a 4-18 MNPT pressure port with a Micro-DIN connector, ideal for industrial and OEM applications.
OMEGA PX3193KGI Pressure Transducer Specifications:
- Material: Stainless Steel
- Accuracy: ±0.25% full scale
- Range: 0 to 207 bar (0 to 3000 psi)
- Output Signal: 4 to 20 mA
- Protection: IP65
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Pressure Port: 4-18 MNPT
- Calibration: 5-point NIST traceable
- Voltage: 10 Vdc (typical)
- Stability: Long-term ±0.25% per year
- Design: Rugged all stainless steel, solid-state
- Response Time: <1 ms
- Shock and Vibration: 50 g, 20 g
Buy the Buy OMEGA Pressure Transducer Part Number PX3193KGI Online
Discover the OMEGA PX319 series pressure transducer designed for reliable, high-precision measurement in industrial settings. Made from stainless steel with advanced silicon technology, it ensures accurate readings from 0 to 3000 psi with a ±0.25% accuracy. Its rugged construction is protected to IP65, suitable for harsh environments. Featuring a 4 to 20 mA output, operating from -40°C to 85°C, it includes a 5-point NIST-traceable calibration, pressure port, and Micro-DIN connector. Perfect for OEM, manufacturing, and automation applications, it guarantees stability, low drift, and dependable performance over time.
Get OMEGA PX3193KGI today—built for precision and long-lasting durability in industrial monitoring.
Frequently Asked Questions
Where can I buy OMEGA PX3193KGI?
You can click on the BUY or RFQ button to purchase PX3193KGI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX3193KGI?
You can download the PX3193KGI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX3193KGI?
OMEGA
