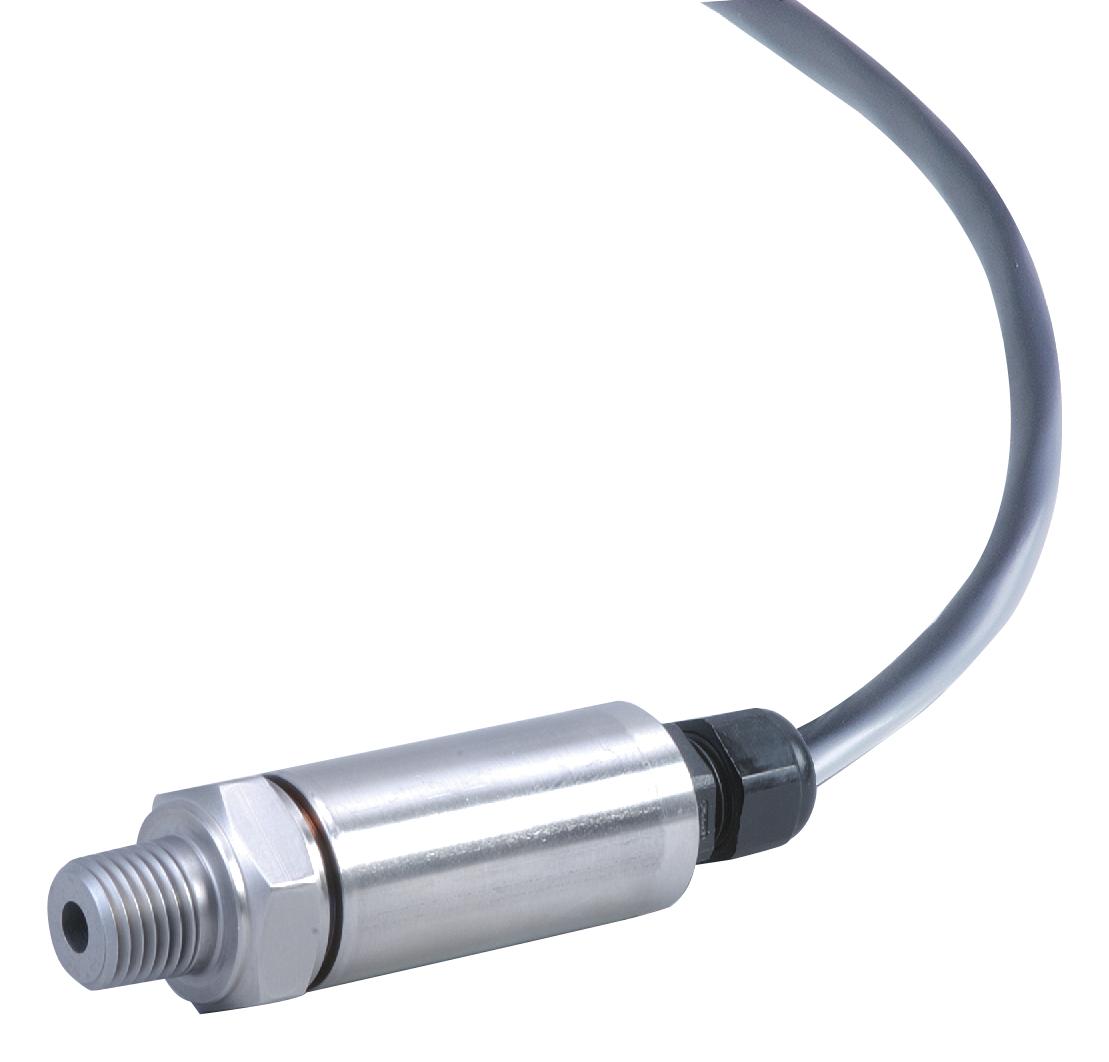

OMEGA PX3091KGI Pressure Transducer

The PX309 series high-performance general-purpose pressure transducer utilizes advanced silicon technologies to deliver precise measurements. It features a gauge pressure range from 0 to 69 bar (0 to 1000 psi), with all stainless steel construction for durability. The device provides a 4 to 20 mA output signal, high stability with low drift, and an accuracy of ±0.25% full scale (including linearity, hysteresis, and repeatability). It is built with an IP65 protection rating, making it suitable for demanding environments. The rugged, solid-state design offers long-term stability over one year and can operate in temperatures from -40°C to 85°C (-40°F to 185°F). The pressure port is quarter-inch 18 MNPT, and it includes a 1.5-meter (5-foot) cable connection. The package contains the pressure transducer with a 5-point NIST-traceable calibration.

View PX3091KGIDatasheet [pdf]

Buy the Buy Omega Pressure Transducer Part Number PX3091KGI Online

Enhance your industrial measurement capabilities by purchasing the Omega PX309 pressure transducer online. This rugged stainless steel device offers 0-69 bar measurement range, 4-20 mA output, IP65 protection, and exceptional stability over long periods. Its durable design withstands demanding environments, providing precise data essential for process control and automation. Easy to install with a quarter-inch MNPT port and a 1.5-meter cable, it comes with a 5-point NIST calibration, ensuring accuracy and reliability. Buy now to upgrade your measurement system today.

Order your Omega PX309 pressure transducer today and ensure reliable, accurate measurements for your industrial projects.
