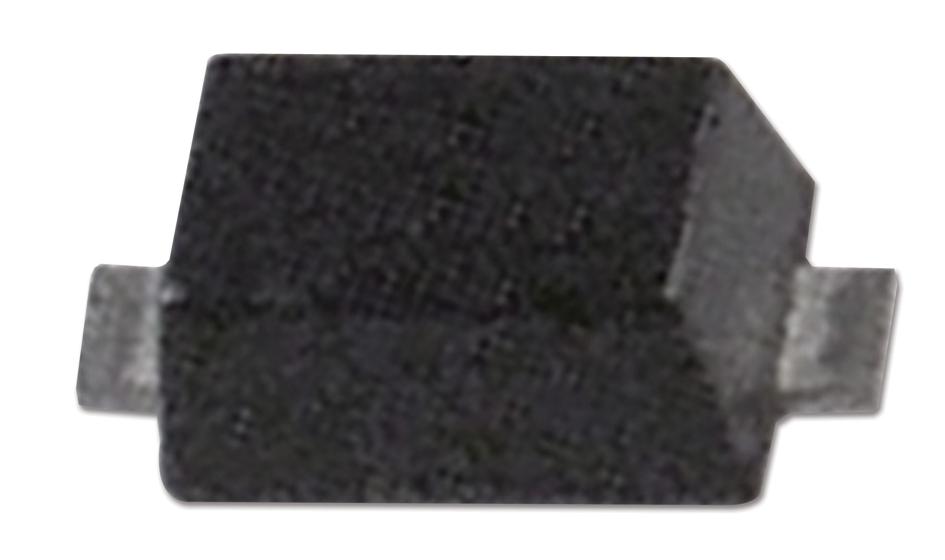

ONSEMI 1SS400T1G High-Speed Switch Diode
The high-speed switching diode features a compact SOD-523 package, ideal for automotive and power switching applications. It is RoHS, halogen, and BFR free, with lead finish of 100% matte tin. The device supports a maximum reverse voltage of 100 V, forward current of 200 mA, and surge of 500 mA. Thermal dissipation reaches 200 mW with a junction-to-ambient resistance of 635 °C/W. Key electrical parameters include a reverse leakage current of 0.1 μA at 80 V, a diode capacitance of 30 pF, and a forward voltage of 1.2 V at 100 mA. Suitable for high-speed, low-loss switching in compact designs.
ONSEMI 1SS400T1G High-Speed Switch Diode Specifications:
- Reverse Voltage: 100 V
- Forward Current: 200 mA
- Peak Forward Surge Current: 500 mA
- Total Device Dissipation: 200 mW
- Thermal Resistance, Junction-to-Ambient: 635 °C/W
- Storage Temperature Range: -55°C to +150°C
- Reverse Leakage Current: 0.1 μA at 80 V
- Diode Capacitance: 30 pF at 0 V, 1.0 MHz
- Forward Voltage: 1.2 V at 100 mA
- Maximum Reflow Temperature: Qualified for automotive applications, lead finish: 100% matte tin
- Package: SOD-523, Case 502
Buy the ON Semiconductor Series High-Speed Switch Diode 1SS400T1G
Purchase the ON Semiconductor high-speed switching diode 1SS400T1G online today for reliable performance in automotive and power switching applications. The device features a compact SOD-523 package, supporting a maximum reverse voltage of 100 V and a forward current of 200 mA. Its robust thermal characteristics include a total dissipation of 200 mW and junction-to-ambient resistance of 635 °C/W. Suitable for high-speed, low-loss switching in small, space-constrained designs, it is RoHS, halogen, and BFR free, with lead finish of 100% matte tin. Make your electronic projects or manufacturing processes more efficient and reliable with this qualified diode today.
Get ON Semiconductor 1SS400T1G today—designed for high-speed switching, automotive reliability, and compact space efficiency.
Frequently Asked Questions
Where can I buy ONSEMI 1SS400T1G?
You can click on the BUY or RFQ button to purchase 1SS400T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 1SS400T1G?
You can download the 1SS400T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 1SS400T1G?
ONSEMI
