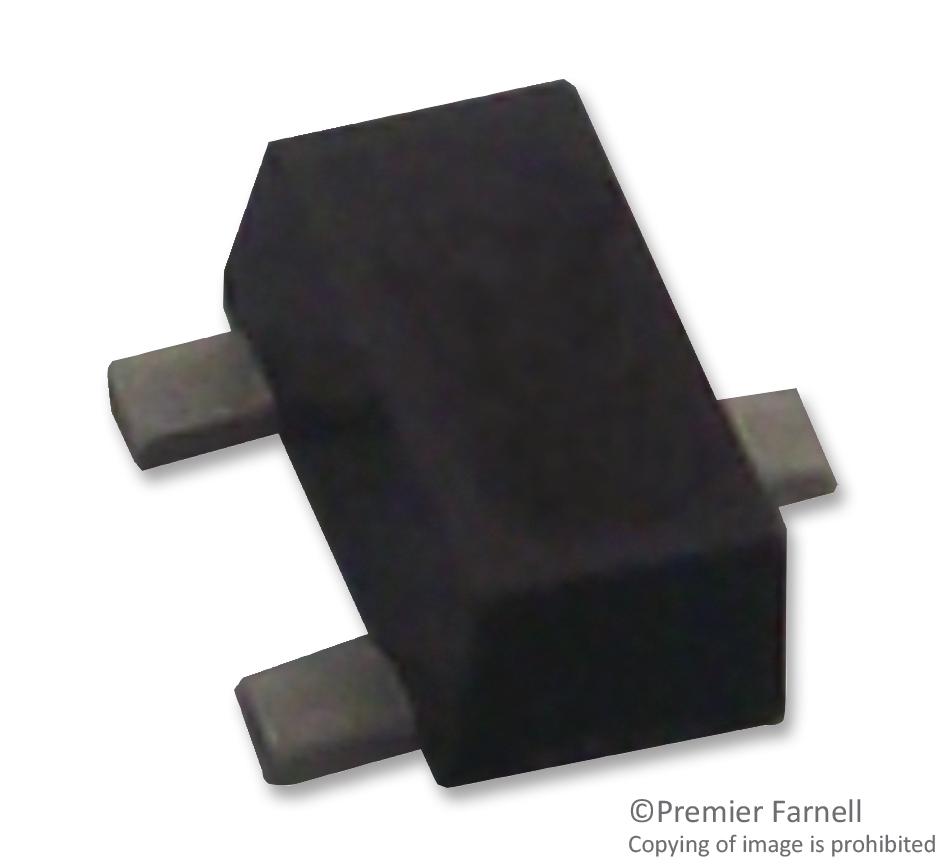

ONSEMI NZL7V5AXV3T1G ESD Protection Diode
The NZL7V5AXV3T1G is a dual monolithic silicon ESD protection diode designed for use in voltage- and ESD-sensitive electronic equipment. It features a dual junction common anode configuration in an SC-89 package, suitable for space-constrained boards. With an ESD rating exceeding 16 kV per the human body model and IEC61000-4-2 Level 4 compliance, it provides reliable surge protection. Its low leakage current under 5.0 μA, Pb-Free construction, and robust mechanical design ensure durability in critical applications like computers, communication systems, and medical devices.
ONSEMI NZL7V5AXV3T1G ESD Protection Diode Specifications:
- Package: SC-89 monolithic silicon ESD protection diode
- Configuration: Dual common anode junction, unidirectional or bidirectional
- ESD Rating: Class N exceeding 16 kV, meets IEC61000-4-2 Level 4
- Leakage Current: Less than 5.0 μA
- Max Power Dissipation: 240 mW on FR-5 board at 25°C, derates 1.9 mW/°C above 25°C
- Junction to Ambient Thermal Resistance: 525 °C/W
- Operating Temperature Range: -55°C to +150°C
- Lead Finish: 100% Matte Sn (Tin), soldering max temperature 260°C
- Device Meets MSL 1 qualification, durable epoxy case UL 94V-0
- Mechanical: Void-free transfer-molded plastic, mounting position any
- Voltage: Vawm 3.0-5.0 V, typical breakdown voltage 5.32-6.46 V, working peak reverse voltage up to 5.88 V
- Capacitance: ~200-250 pF depending on voltage bias
- Application: Surge and ESD protection in computers, printers, communication, and medical electronics
