ONSEMI NCHRSL10101Q48ABG Wireless Communication Module
The RSL10 is an ultra-low-power, multi-protocol Bluetooth 5 System-on-Chip (SoC) designed for high-performance wearable and medical applications. It features an ARM Cortex-M3 processor clocked up to 48 MHz, a dual Harvard DSP core supporting audio codecs, and a highly integrated RF transceiver supporting Bluetooth 5, IEEE 802.15.4, and proprietary protocols. With efficient power management, deep sleep and standby modes, 384 KB of flash, 76 KB of SRAM, and firmware over-the-air support, the RSL10 enables versatile and energy-efficient wireless solutions.
ONSEMI NCHRSL10101Q48ABG Wireless Communication Module Specifications:
- ARM Cortex-M3 processor clocked up to 48 MHz
- Dual 32-bit Harvard DSP core supporting audio codecs
- Bluetooth 5 certified with LE 2M PHY support
- Rx sensitivity (BLE 1 Mbps): -94 dBm
- Transmitting power: -17 to +6 dBm
- RF data rate: 62.5 to 2000 kbps
- Supply voltage range: 1.1 — 3.3 V
- Deep sleep current (VBAT 1.25 V): 50 nA (IO wake-up), 300 nA (8 KB RAM retention)
- Includes 384 KB flash, 76 KB SRAM, supports FOTA updates
- Integrated Power Management Unit (DC-DC and LDO options)
- Multiple digital interfaces: I2C, UART, SPI, PCM, GPIO
- Low power consumption: RX/TX modes <18 mA, standby 17–30 pA
- Support for custom protocols, audio streaming, and coexistence with Bluetooth
- Supports external crystal oscillators, programmable clocking, and RF filters

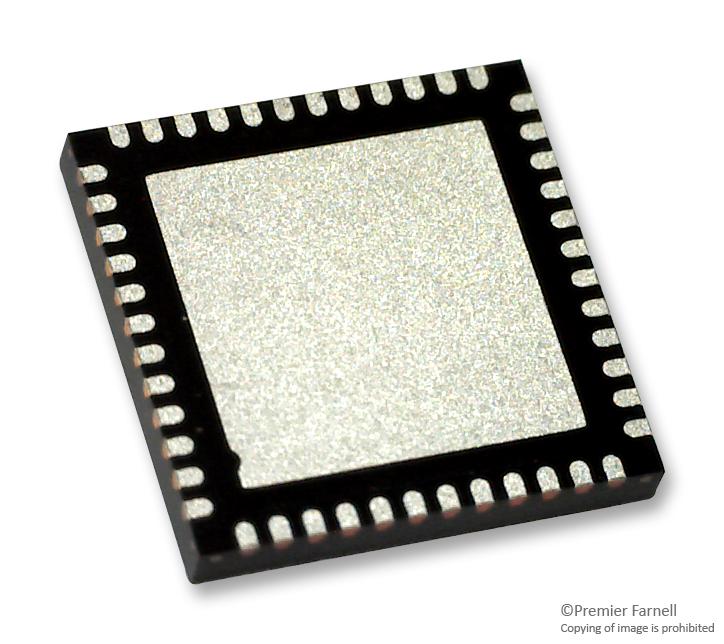

Buy the ON Semiconductor RSL10 – Reliable Bluetooth 5 for Industrial Applications
Discover the ON Semiconductor RSL10, an ultra-low-power wireless system-on-chip supporting Bluetooth 5, IEEE 802.15.4, and proprietary protocols. Featuring an ARM Cortex-M3 processor, dual DSP cores for audio, and comprehensive power management, it ensures energy-efficient operation for wearable, medical, and industrial wireless solutions. With integrated flash memory, support for firmware updates, and multiple interface options, the RSL10 enables flexible, reliable, and low-power wireless connectivity. Purchase online today and elevate your IoT and medical device projects with advanced wireless capabilities.
Get ON Semiconductor RSL10 today—built for low power, high-performance wireless connectivity in wearable and medical devices.
Frequently Asked Questions
Where can I buy ONSEMI NCHRSL10101Q48ABG?
You can click on the BUY or RFQ button to purchase NCHRSL10101Q48ABG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCHRSL10101Q48ABG?
You can download the NCHRSL10101Q48ABG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCHRSL10101Q48ABG?
ONSEMI
