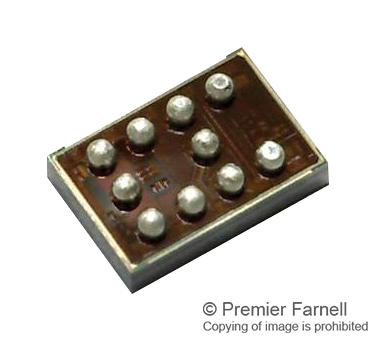

ONSEMI CM120508CP ESD Protection Array
The CM1205 surge protection array offers high-level electrostatic discharge (ESD) protection for sensitive electronic devices, safeguarding against +25 kV contact discharges in compact chip scale packages. Suitable for portable electronics like smartphones, PDAs, and digital cameras, it features OptiGuard™ coating for enhanced reliability, multiple channels in a small footprint, and RoHS compliance. Designed to dissipate ESD strikes beyond IEC 61000-4-2 standards, the device ensures robust protection for I/O ports, buttons, and circuitry in space-constrained applications, providing durable, lead-free protection for modern electronic equipment.
ONSEMI CM120508CP ESD Protection Array Specifications:
- Surge Protection: 8 channels in a chip scale package
- ESD Withstand Voltage: +25 kV contact discharge per IEC 61000-4-2
- Maximum Storage Temperature: 65°C to +150°C
- Operating Temperature Range: -40°C to +85°C
- Channel Capacitance: 39 to 47 pF at 2.5V, 1 MHz
- Maximum Reflow Temperature: 260°C
- Pad Size on PCB: 0.275 mm, round, non-solder mask defined
- Solder Stencil Opening: 0.330 mm, with no clean solder paste
- Package Type: 10-bump CSP, dimensions approx. 3.10x1.15 mm
- RoHS and Pb-Free compliant: Yes
- Storage Temperature Range: -65°C to +150°C
Buy the Buy ON Semiconductor CM1205 Part Number CM120508CP Online
Secure the advanced ESD protection for your sensitive electronic devices with the CM1205 chip scale array featuring 8 channels, +25 kV contact discharge, and OptiGuard coating for enhanced reliability. Its compact 10-bump CSP design saves valuable space on your PCB, making it ideal for portable gadgets like smartphones, tablets, and cameras. Ensuring compliance with IEC 61000-4-2 and RoHS standards, this lead-free component provides durable, space-efficient protection for I/O ports, buttons, and circuitry in critical applications, supporting high-performance, quality electronics manufacturing.
Buy ON Semiconductor CM120508CP now and experience unmatched reliability and high-level ESD protection for sensitive electronic components.
Frequently Asked Questions
Where can I buy ONSEMI CM120508CP?
You can click on the BUY or RFQ button to purchase CM120508CP from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CM120508CP?
You can download the CM120508CP datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CM120508CP?
ONSEMI
