ONSEMI 74AC541MTCX Octal Buffer Driver
The 74AC541 and 74ACT541 are octal buffer and line driver ICs designed for memory, address, clock, and bus communication applications. Featuring 3-state outputs and opposite side inputs and outputs, these devices facilitate microprocessor interface with enhanced PCB density. The 74AC541 offers flow-through architecture and is a non-inverting version of similar devices, with TTL-compatible inputs in the 74ACT version. Available in various package types, they support high current sourcing and sinking, making them ideal for high-speed data transfer and digital system buffering.
ONSEMI 74AC541MTCX Octal Buffer Driver Specifications:
- Package Types: SOIC, SOP, TSSOP, PDIP
- Number of Leads: 20
- Supply Voltage (Vcc): 2.0V to 6.0V (AC), 4.5V to 5.5V (ACT)
- Input Voltage Range: 0V to Vcc
- Output Current Source/Sink: 24mA
- Operating Temperature Range: 40°C to +85°C
- Propagation Delay: 2.0 to 9.0 ns depending on voltage and type
- Input Capacitance: 45 pF
- Power Dissipation Capacitance: 30-70 pF (for AC and ACT respectively)
- Maximum Storage Temperature: -65°C to +150°C
- Junction Temperature: 140°C
- Absolute Max Ratings: Supply Voltage up to 7.0V, Input Diode Current up to 20mA, DC Output Current up to 50mA
- Input and output opposite side layout for simplified PCB design

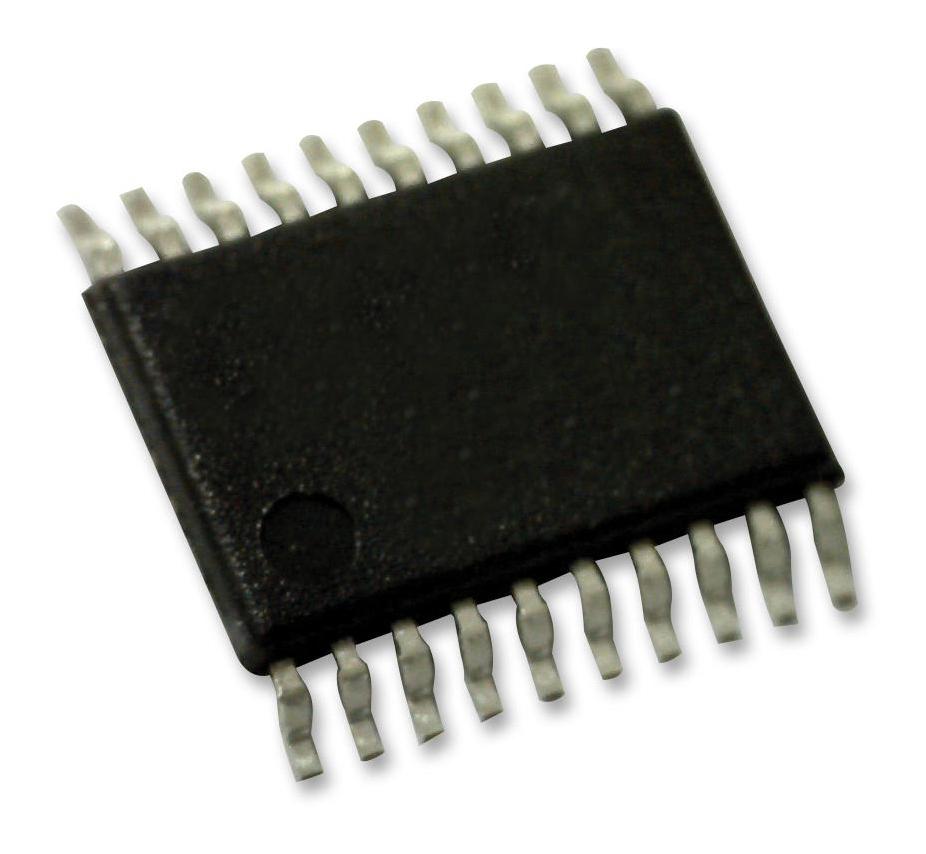

Buy the Buy ON Semiconductor 74AC541MTCX Part Number 74AC541MTCX Online
Enhance your digital systems with the high-performance octal buffer and line driver IC available online. The 74AC541 supports memory, address, and bus interface applications, providing reliable 3-state outputs and high current capacity. Its various package options ensure compatibility with different PCB layouts, while low propagation delays support high-speed data transfer. Whether for microprocessor interfacing or bus transceiver tasks, this device offers exceptional performance, easy integration, and durability for demanding electronic environments.
Buy ON Semiconductor 74AC541MTCX now and experience unmatched reliability and performance in high-speed digital buffering and line driving.
Frequently Asked Questions
Where can I buy ONSEMI 74AC541MTCX?
You can click on the BUY or RFQ button to purchase 74AC541MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74AC541MTCX?
You can download the 74AC541MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74AC541MTCX?
ONSEMI
