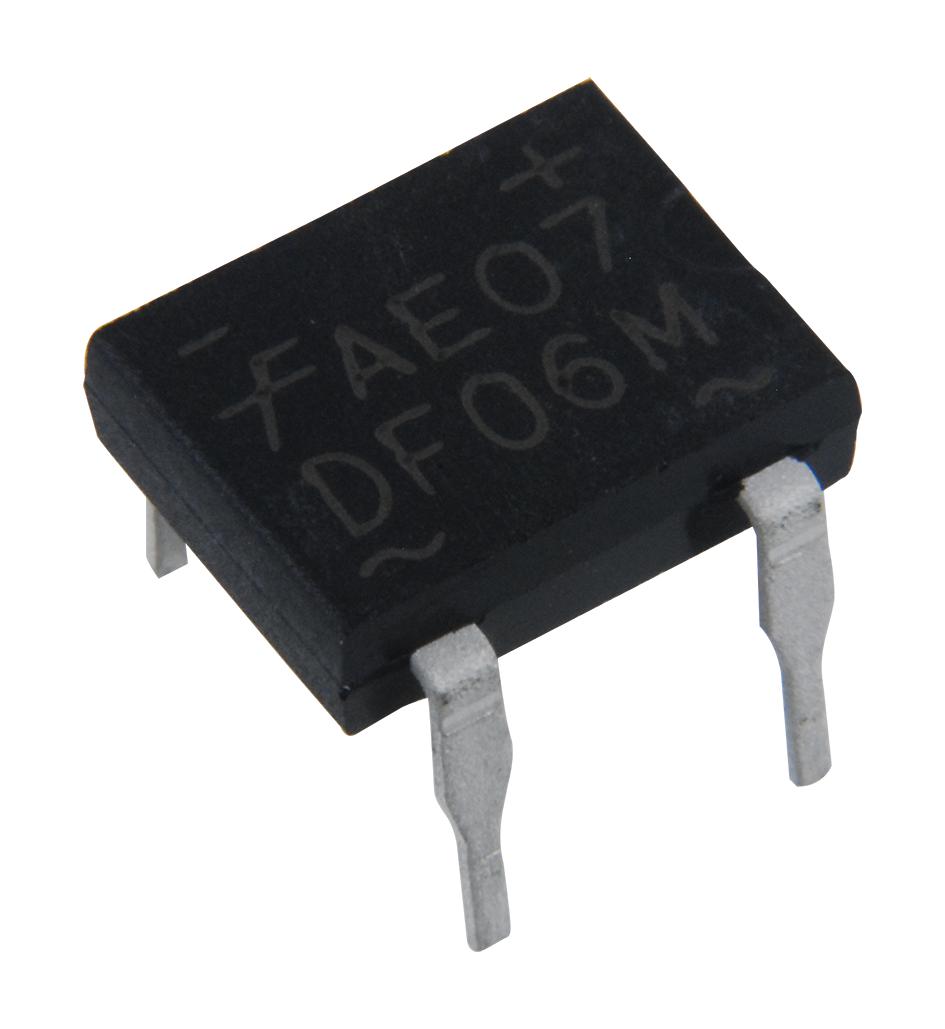

ONSEMI DF06M Bridge Rectifier
The DF06M is a single-phase glass-passivated bridge rectifier designed for general-purpose use. It features low leakage current, a peak surge overload current of 50A, and a maximum RMS input voltage of 420V. Suitable for various applications including mains rectification, this component provides reliable performance in industrial and electronic power conversion systems. It complies with UL certification and is engineered for durability and safety, making it ideal for controlling power in industrial equipment, power supplies, and automation systems.
ONSEMI DF06M Bridge Rectifier Specifications:
- Surge Overload Rating: 50 Amperes Peak
- Glass Passivated Junction
- Maximum RMS Bridge Input Voltage: 420V
- DC Reverse Voltage at Rated IR: 600V
- Average Rectified Forward Current: 15A
- Storage Temperature Range: -55°C to +150°C
- Junction Operating Temperature: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 40°C/W
- Power Dissipation: 3.1 W
- Forward Voltage, per Element: 1.1V at 1.0A
- Peak Forward Surge Current, 8.3ms: 50A
- Dimensions: 8.51mm x 8.05mm x 6.50mm (L x W x H), DIP package
- UL Certified: UL #E258596
Buy the Fairchild DF06M – Reliable Bridge Rectifier for Industrial Applications
Get the Fairchild DF06M bridge rectifier online today and enhance your power management solutions. This high-quality component features a surge rating of 50A, an RMS voltage of 420V, and low reverse leakage, ensuring durability and fast switching in power supply circuits. Perfect for industrial, automation, and electronic systems that demand reliable rectification. Easy to integrate, UL certified, and designed for long-term performance, it helps optimize your power conversion and distribution processes, delivering efficiency and safety in every application.
Buy Fairchild DF06M now and experience unmatched reliability and power efficiency in your industrial power systems.
Frequently Asked Questions
Where can I buy ONSEMI DF06M?
You can click on the BUY or RFQ button to purchase DF06M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part DF06M?
You can download the DF06M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of DF06M?
ONSEMI
