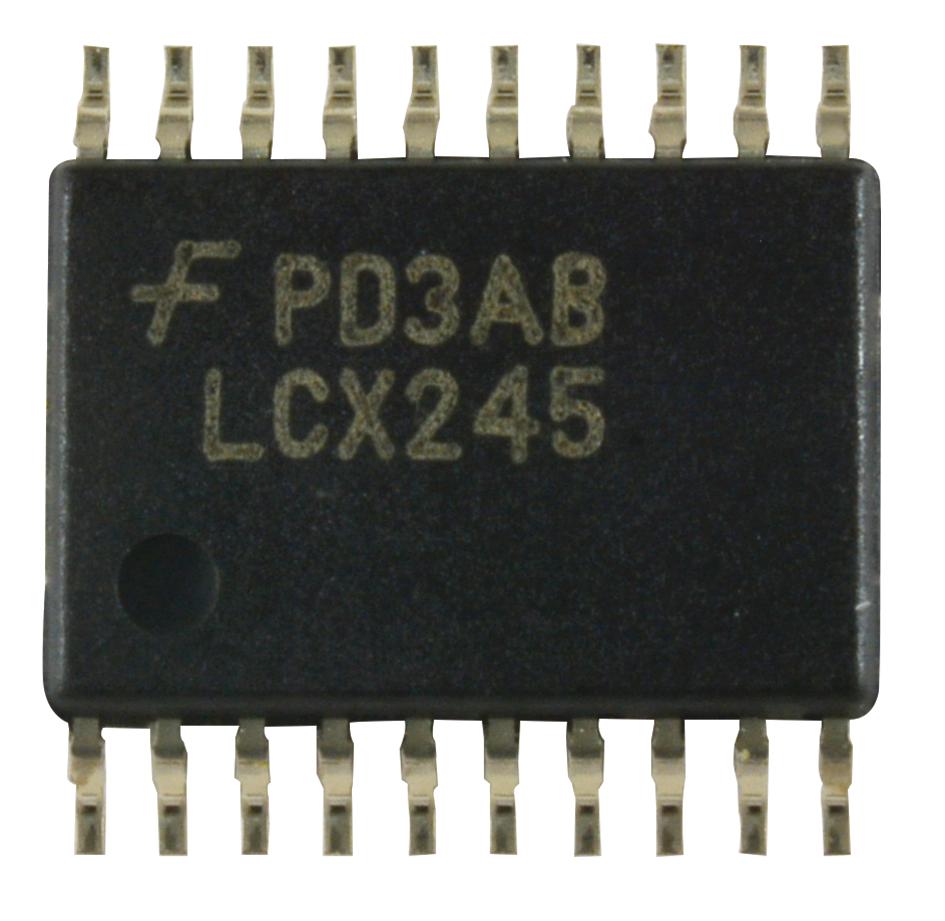

ONSEMI 74LCX245MTC Bidirectional Transceiver
The 74LCX245MTC is a low-voltage, non-inverting bidirectional transceiver with 3-state outputs, designed for bus-oriented applications. It supports low-voltage operation at 2.5V and 3.3V while being compatible with 5V signal environments. The device features a T/R# input to control data direction and an OE# input to disable both ports by placing them in high-impedance state. Fabricated using advanced CMOS technology, it offers high-speed performance with low power consumption. Additional features include power-down high impedance inputs and outputs, patented noise and EMI reduction circuitry, latch-up immunity exceeding 500mA, 5V tolerant inputs and outputs, a propagation delay of approximately 7ns with a maximum of 10µA ICCQ, support for live insertion or withdrawal, and a ±24mA output drive capacity. It is suitable for industrial and signal processing applications.
ONSEMI 74LCX245MTC Bidirectional Transceiver Specifications:
- Power Supply Voltage: 2.0V to 3.6V
- Input Voltage: 0V to 5.5V
- Output Voltage: 0V to 5.5V
- Propagation Delay: approximately 7ns (max 10ns)
- Output Drive Current: ±24mA at Vcc = 3.0V
- Input Leakage Current: ±5.0nA
- ESD Protection: >2000V Human body model, >200V Machine model
- Temperature Range: -65°C to +150°C
- Power Dissipation Capacitance: 25pF
- Package Types: SOIC, SOP, SSOP, TSSOP, DQFN
- Latching and noise/EMI reduction circuitry implemented
- Supports live insertion/withdrawal
Buy the Buy ON Semiconductor 74LCX245MTC Part Number 74LCX245MTC Online
Secure your supply of high-performance digital interface components by purchasing ON Semiconductor 74LCX245MTC online. This low-voltage bidirectional transceiver supports both 2.5V and 3.3V operations, is compatible with 5V signals, and offers fast propagation delays for busy industrial and signal processing systems. Its advanced CMOS technology ensures low power consumption, high noise immunity, and robust latch-up performance exceeding 500mA. Designed for bus applications, supports live insertion, and includes patented noise and EMI reduction circuitry, making it an excellent choice for electronics engineers requiring reliable and efficient data communication solutions.
Buy ON Semiconductor 74LCX245MTC now and experience unmatched reliability and high-speed performance with low power consumption.
