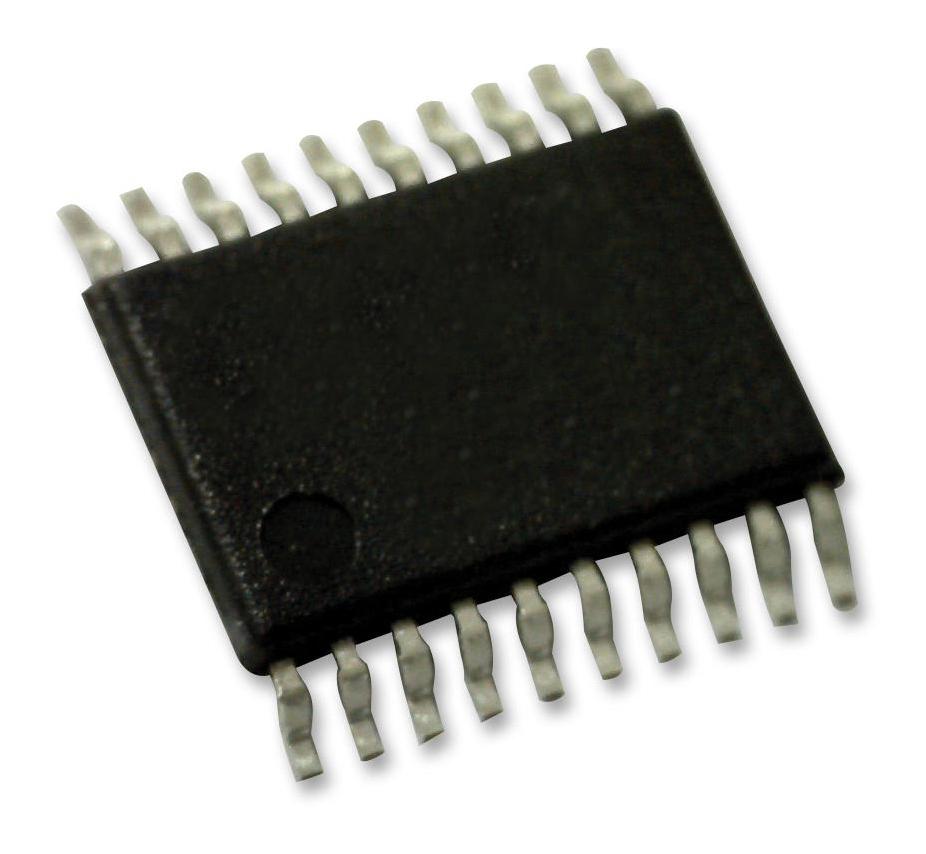

ONSEMI 74LVX244MTCX Octal Buffer/Line Driver
The ONSEMI 74LVX244 is a versatile octal non-inverting buffer and line driver suitable for a wide range of applications including memory address drivers, clock drivers, and bus-oriented transmitter/receiver circuits. Its low voltage operation and input voltage translation capabilities make it ideal for interfacing 5V systems with 3V systems. The device offers improved PC board density and dynamic threshold performance, ensuring reliable signal transmission in various industrial and commercial settings.
ONSEMI 74LVX244MTCX Octal Buffer/Line Driver Specifications:
- Supply Voltage (VCC): 2.0V to 3.6V
- Input Voltage (VI): 0V to 5.5V
- Output Voltage (Vo): 0V to VCC
- Operating Temperature (TA): –40°C to 85°C
- Input Rise and Fall Time: 0 ns
- HIGH Level Input Voltage (VIH): 1.5V to 3.6V
- LOW Level Input Voltage (VIL): 0V to 0.8V
- HIGH Level Output Voltage (VOH): 1.9V to 3.0V
- LOW Level Output Voltage (VOL): 0.0V to 0.1V
- Input Diode Current (IIK): –20 mA
- Output Diode Current (IOK): –20 mA
- DC Output Source or Sink Current (IO): ±25 mA
- DC VCC or Ground Current (ICCor IGND): ±75 mA
- Storage Temperature (TSTG): –65°C to 150°C
- Power Dissipation: 180 mW
