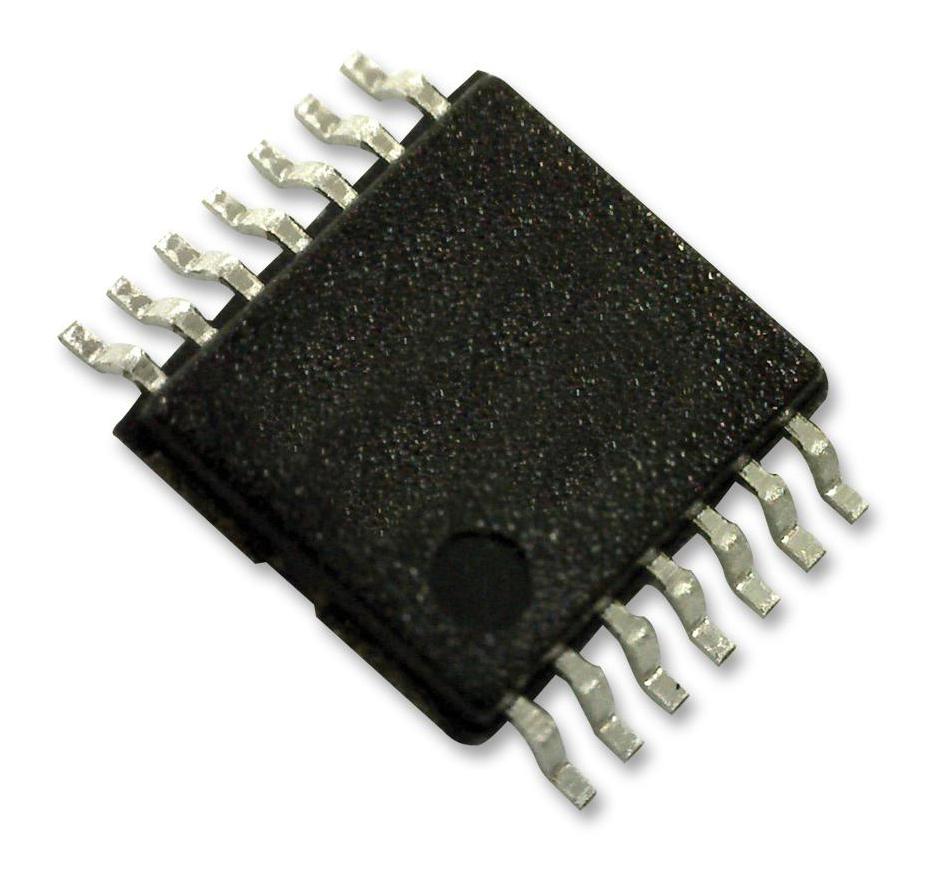

ONSEMI 74LVX32MTCX Quad 2-Input OR Gate
The ONSEMI 74LVX32MTCX is a versatile quad 2-input OR gate designed for a wide range of digital logic applications. Its key features include input voltage level translation from 5V to 3V, making it ideal for interfacing systems with different voltage levels. The device is optimized for low-power, low-noise 3.3V applications and offers guaranteed simultaneous switching noise level and dynamic threshold performance. It is commonly used in digital signal processing, microcontroller interfaces, and general-purpose logic circuits where reliable and efficient operation is required.
ONSEMI 74LVX32MTCX Quad 2-Input OR Gate Specifications:
- Supply Voltage: –0.5V to +7.0V
- DC Input Diode Current: –20mA
- DC Input Voltage: –0.5V to 7V
- DC Output Diode Current: –20mA to +20mA
- DC Output Voltage: –0.5V to VCC+0.5V
- DC Output Source or Sink Current: ±25mA
- DC VCC or Ground Current: ±50mA
- Storage Temperature: –65°C to +150°C
- Power Dissipation: 180mW
- Recommended Operating Conditions - Supply Voltage: 2.0V to 3.6V
- Recommended Operating Conditions - Input Voltage: 0V to 5.5V
- Recommended Operating Conditions - Output Voltage: 0V to VCC
- Recommended Operating Conditions - Operating Temperature: –40°C to +85°C
- Input Rise and Fall Time: 0ns/V to 100ns/V
- High Level Input Voltage: 1.5V to 5.5V (VCC=3.0V)
- Low Level Input Voltage: 0V to 0.8V (VCC=3.0V)
- High Level Output Voltage: 1.9V to VCC+0.5V
- Low Level Output Voltage: 0V to 0.44V
- Input Leakage Current: ±1.0µA
- Quiescent Supply Current: 20.0µA
- Propagation Delay Time: 5.8ns to 16.0ns
- Output to Output Skew: 1.5ns
- Input Capacitance: 4pF to 10pF
- Power Dissipation Capacitance: 14pF
Buy the 74LVX32MTCX ONSEMI Quad 2-Input OR Gate | myMectronic
Purchase the ONSEMI 74LVX32MTCX securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74LVX32MTCX?
You can click on the BUY or RFQ button to purchase 74LVX32MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVX32MTCX?
You can download the 74LVX32MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVX32MTCX?
ONSEMI
