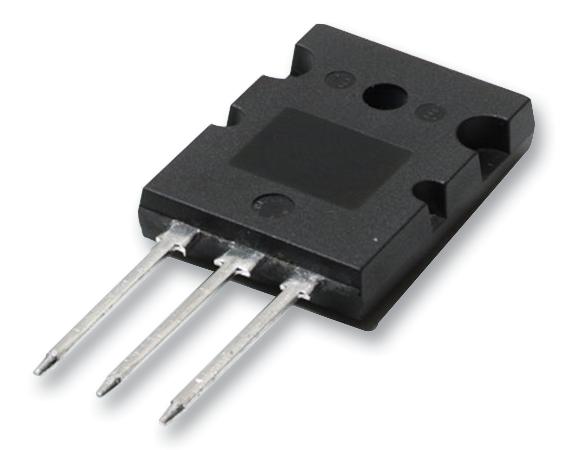

ONSEMI FJL6920TU High Voltage Display Transistor
The FJL6920TU is a high-voltage color display horizontal deflection output transistor designed for color monitors. It features a collector-base breakdown voltage of 1700V, low saturation voltage of 3V, and supports collector currents up to 20A with pulse capability of 30A. Suitable for high-voltage applications, this NPN triple diffused planar silicon transistor operates within a junction temperature of 150°C and offers robust electrical and thermal characteristics. Its TO-264 package ensures reliable performance in demanding industrial and consumer display systems.
ONSEMI FJL6920TU High Voltage Display Transistor Specifications:
- Collector-Base Breakdown Voltage: 1700V
- Collector-Emitter Voltage: 800V
- Emitter-Base Voltage: 6V
- Collector Current (DC): 20A
- Collector Current (Pulse): 30A
- Collector Dissipation: 200W
- Junction Temperature: 150°C
- Storage Temperature: -55°C to 150°C
- Package: TO-264
- Thermal Resistance, Junction to Case: 0.625°C/W
Buy the ON Semiconductor FJL6920TU – Reliable Display Transistor for Industrial Applications
Discover the high-voltage display transistor suitable for color monitors, offering 1700V collector-base breakdown voltage and 20A current capacity. This robust transistor is designed for demanding industrial and consumer display applications, ensuring durability and reliable operation. Its TO-264 package, excellent thermal characteristics, and low saturation voltage make it ideal for horizontal deflection circuits in high-performance video display systems. Purchase online today to upgrade your professional or hobbyist display equipment with proven quality and dependable electrical performance.
Order your ON Semiconductor FJL6920TU high-voltage display transistor today and ensure reliable performance in your color monitor projects.
Frequently Asked Questions
Where can I buy ONSEMI FJL6920TU?
You can click on the BUY or RFQ button to purchase FJL6920TU from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FJL6920TU?
You can download the FJL6920TU datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FJL6920TU?
ONSEMI
