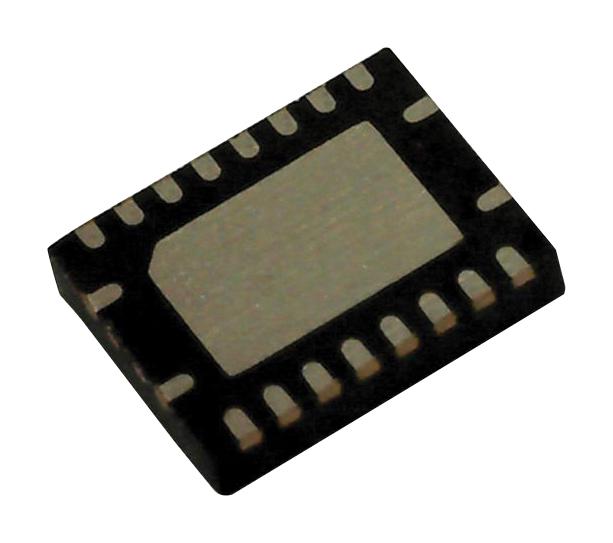

ONSEMI 74VCX245BQX Bidirectional Transceiver
The ONSEMI 74VCX245BQX is a versatile 8-bit bidirectional transceiver suitable for a wide range of bus-oriented applications. Its 3.6V tolerant inputs and outputs, combined with low voltage operation (1.4V to 3.6V), make it ideal for modern digital systems. The device incorporates proprietary noise reduction circuitry for enhanced performance and supports live insertion and withdrawal, simplifying system integration. It's fabricated with advanced CMOS technology for high-speed operation and low power dissipation.
ONSEMI 74VCX245BQX Bidirectional Transceiver Specifications:
- Supply Voltage: 1.4V to 3.6V
- Input Voltage: 0.3V to 3.6V
- Output Voltage: 0V to VCC
- Input Diode Current: ≤ 50 mA
- Output Diode Current: ≤ 50 mA
- Propagation Delay: 3.5 ns max (at 3.0V VCC)
- Static Drive Current: ±24 mA @ 3.0V VCC
- ESD Performance: Human body model: 2000V, Machine model: 200V
Buy the 74VCX245BQX ONSEMI Bidirectional Transceiver | myMectronic
Purchase the ONSEMI 74VCX245BQX securely and reliably for your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VCX245BQX?
You can click on the BUY or RFQ button to purchase 74VCX245BQX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VCX245BQX?
You can download the 74VCX245BQX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VCX245BQX?
ONSEMI
