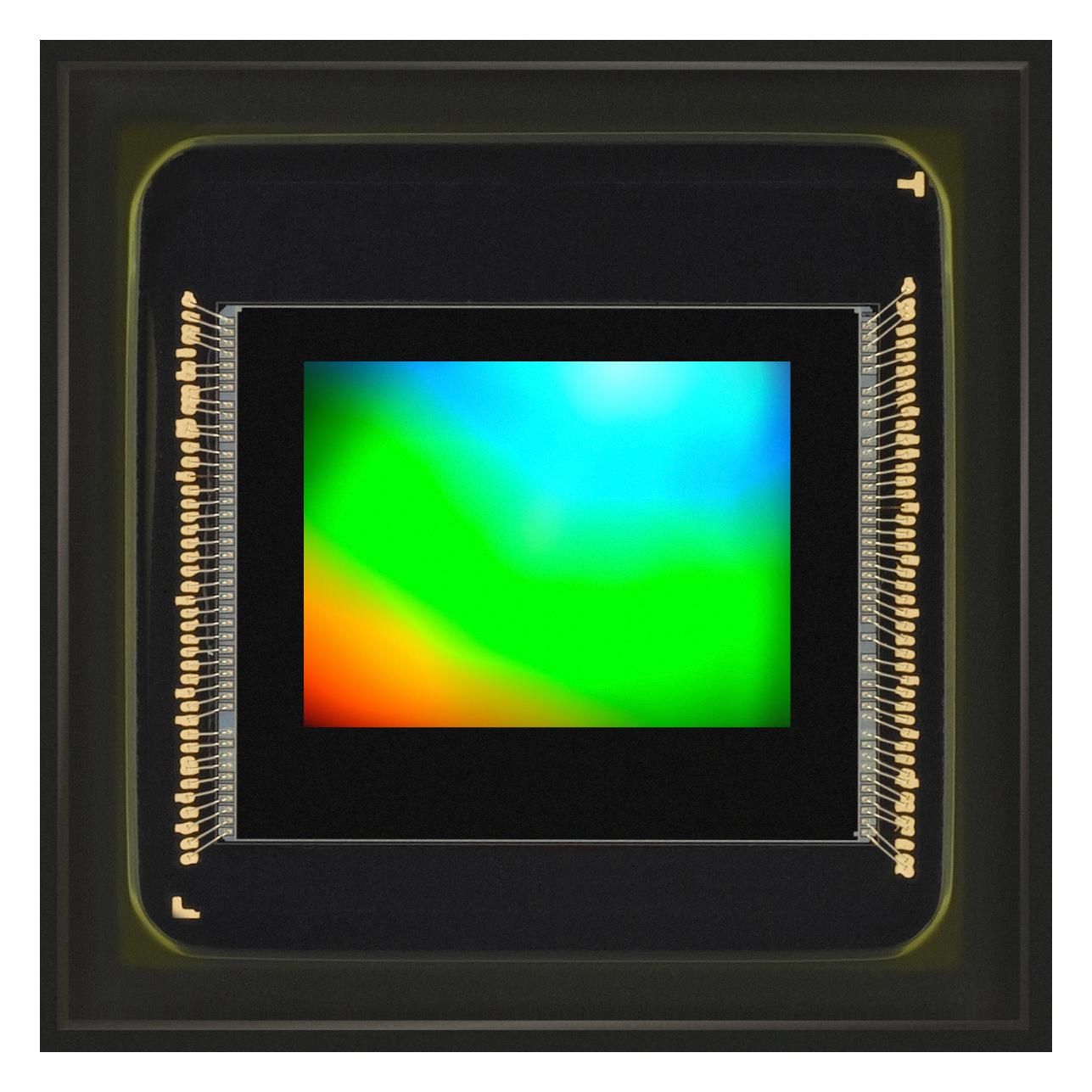

ONSEMI AR0238CSSC12SHRA0DP2 CMOS Image Sensor
The AR0238 is a high-performance 1/2.7-inch CMOS digital image sensor suitable for HD video and surveillance applications. Featuring a 2.1 MP active pixel array of 1928Hx1088V with a 3.0 um pixel size, it supports full HD at 1080p60 fps, HDR mode with up to 96 dB dynamic range, and dual gain for excellent low-light performance. Its advanced functionalities include windowing, binning, image corrections, and programmable exposure. The sensor offers versatile interfaces such as HiSPi and parallel, optimized for high-quality imaging in demanding environments. Designed for wide temperature operation from -30°C to +85°C, it includes internal temperature monitoring and flexible configuration options, making it ideal for surveillance, streaming, and high-dynamic-range imaging systems.
ONSEMI AR0238CSSC12SHRA0DP2 CMOS Image Sensor Specifications:
- Optical format: 1/2.7-inch (6.6 mm diagonal)
- Active pixels: 1928 x 1088
- Pixel size: 3.0 um x 3.0 um
- Resolution support: up to 2.1 MP in HDR mode
- Frame rate: 1080p at 60 fps, HDR with up to 96 dB dynamic range
- Sensor type: CMOS active pixel array with dual conversion gain
- Image capture modes: linear and high dynamic range
- Interfaces supported: HiSPi serial (4-lane) and parallel
- Operating temperature: -30°C to +85°C
- Supply voltages: analog 2.8 V, digital I/O 1.8/2.8 V, power management: integrated PLL
- Power consumption: approximately 300 mW in linear mode at 1080p30
- Programmed via two-wire serial interface, includes auto black level calibration
- Supports external mechanical shutter, windowing, and binning
- Embedded metadata and statistics output capabilities
- Physical dimensions: 11.43 x 11.43 mm in PLCC48 package
Buy the Buy ON Semiconductor AR0238 Part Number AR0238CSSC12SHRA0DP2 Online
Experience superior imaging with the ON Semiconductor CMOS Image Sensor AR0238. Designed for high-definition video and surveillance, it supports 1080p60 fps, HDR mode up to 96 dB, and excellent low-light sensitivity thanks to dual gain technology. Its broad temperature range and flexible interfaces like HiSPi and parallel ensure optimal performance in demanding environments. Easy programming via serial interface, embedded statistics, and multiple operational modes make it the ideal choice for advanced security systems, industrial monitoring, and professional video streaming applications. Order online today to harness high-quality image capture with exceptional clarity and detail.
Buy ON Semiconductor AR0238 now and experience unmatched reliability and high-quality imaging with low-light performance and versatile interfaces.
Frequently Asked Questions
Where can I buy ONSEMI AR0238CSSC12SHRA0DP2?
You can click on the BUY or RFQ button to purchase AR0238CSSC12SHRA0DP2 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part AR0238CSSC12SHRA0DP2?
You can download the AR0238CSSC12SHRA0DP2 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of AR0238CSSC12SHRA0DP2?
ONSEMI
