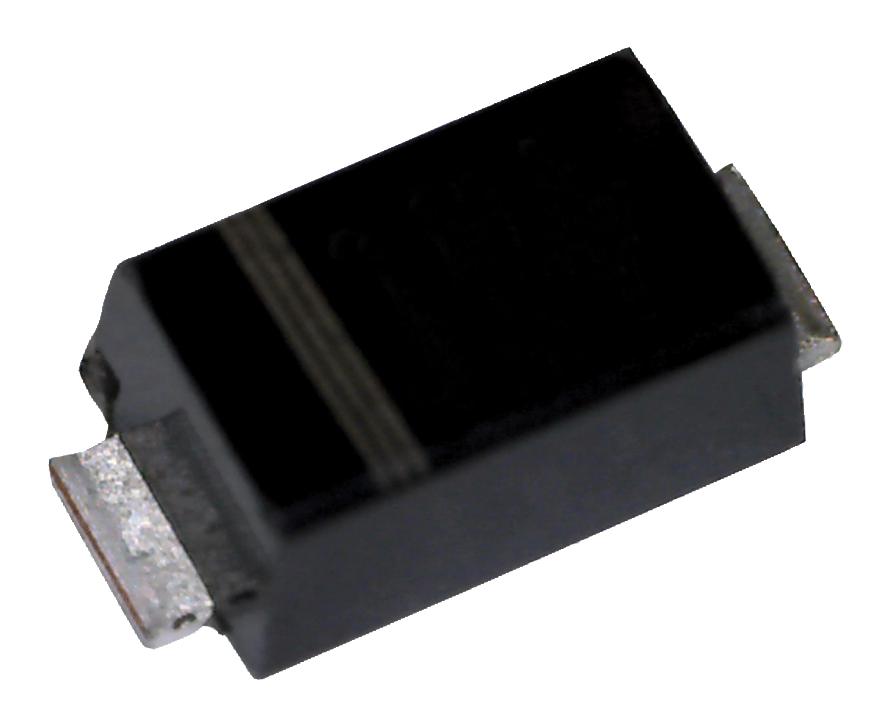

ONSEMI ESD9L50ST5G ESD Protection Diode
The ESD9L50ST5G is an ultra-low capacitance ESD protection diode designed for high-frequency applications. It effectively safeguards sensitive components during ESD and transient events, featuring a low capacitance of 0.5 pF, fast response time under 1 ns, and low leakage current. Suitable for USB 2.0 high-speed and antenna lines, it offers excellent clamping voltage, compact size (0.039” x 0.024”), and is RoHS compliant. Additional features include a stand-off voltage of 3.3 V, leading to its use in space-constrained, high-speed electronic designs.
ONSEMI ESD9L50ST5G ESD Protection Diode Specifications:
- Ultra Low Capacitance: 0.5 pF
- Clamping Voltage: Low
- Size: 0.039” x 0.024” (1.00 mm x 0.60 mm)
- Low Body Height: 0.016” (0.4 mm)
- Stand-off Voltage: 3.3 V
- Leakage Current: Low
- Response Time: Typically < 1.0 ns
- Electrical ratings: IEC 61000-4-2 Contact +10 kV, Air 415 V
- Maximum Power Dissipation: 150 mW on FR-5 board
- Operating Temperature Range: -55°C to +150°C
- Package: SOD-923, Lead Finish: 100% Matte Sn
- Qualified for Automotive and Commercial Use: AEC-Q101, RoHS compliant
Buy the ON Semiconductor ESD9L50ST5G – Reliable ESD Protection Diode for High-Frequency Applications
Purchase the ON Semiconductor ESD9L50ST5G online today for optimal ESD protection in your high-frequency electronics. This diode features ultra-low capacitance, rapid response time under 1 ns, and low leakage current, making it ideal for USB 2.0 high-speed data lines and antenna applications. Its compact size (0.039” x 0.024”), robust construction, and RoHS compliance ensure durability and environmental safety. Protect sensitive components from transient voltage events with this high-performance, reliable diode designed for demanding electronic environments.
Get ON Semiconductor ESD9L50ST5G today—built for precision, fast response, and reliable protection in space-constrained high-speed electronics.
Frequently Asked Questions
Where can I buy ONSEMI ESD9L50ST5G?
You can click on the BUY or RFQ button to purchase ESD9L50ST5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESD9L50ST5G?
You can download the ESD9L50ST5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESD9L50ST5G?
ONSEMI
