ONSEMI FDC3612 PowerTrench MOSFET
The FDC3612 is a high-performance N-Channel PowerTrench MOSFET designed to improve efficiency in DC/DC converters with low gate charge, low Rds(on), and fast switching capabilities. It features a drain-source voltage of 100V, continuous drain current up to 2.6A, and low gate charge of 14nC, making it ideal for synchronous or conventional switching PWM controllers. The device offers high power handling, quick switching times, and robust avalanche energy ratings, suitable for power management applications demanding reliable performance and efficient energy conversion.
ONSEMI FDC3612 PowerTrench MOSFET Specifications:
- Drain-Source Voltage: 100 V
- Gate-Source Voltage: +20 V
- Drain Current: 2.6 A (Continuous), 20 A (Pulsed)
- Maximum Power Dissipation: 1.6 W
- Operating Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 78°C/W
- Thermal Resistance, Junction-to-Case: 30°C/W
- Gate Charge: 14 nC (typical)
- On-Resistance Varies with Drain Current and Voltage, typical 125 mΩ at Vgs=10V
- Body Diode Forward Voltage: Typical 0.76V at 1.3A
- Switching Delay Times in nanoseconds, maximum 37 ns turn-off delay
- Avalanche Energy: 37 mJ

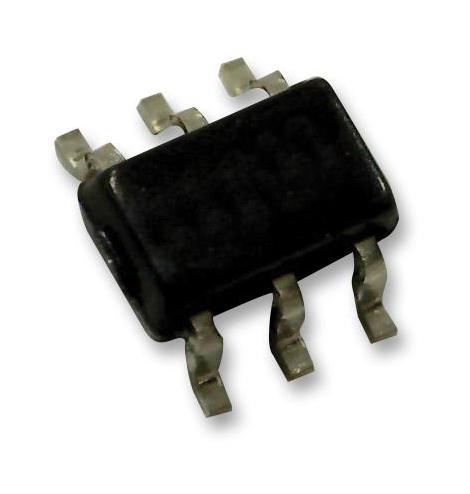

Buy the Buy ON Semiconductor FDC3612 Part Number FDC3612 Online
Purchase the ON Semiconductor FDC3612 PowerTrench MOSFET online today to ensure high-performance power management for your projects. Designed for improved efficiency, it features a drain-source voltage of 100V, continuous drain current up to 2.6A, and low gate charge of 14nC, providing fast switching speeds. Its robust avalanche energy ratings and thermal characteristics make it suitable for demanding DC/DC conversion applications. Ordering online guarantees quick delivery, authentic product quality, and technical support to optimize your circuit designs for performance and efficiency.
Buy ON Semiconductor FDC3612 now and experience unmatched reliability and efficiency in power switching applications with fast, low-charge MOSFET technology.
Frequently Asked Questions
Where can I buy ONSEMI FDC3612?
You can click on the BUY or RFQ button to purchase FDC3612 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDC3612?
You can download the FDC3612 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDC3612?
ONSEMI
