ONSEMI BC847CWT1G NPN Silicon Transistor

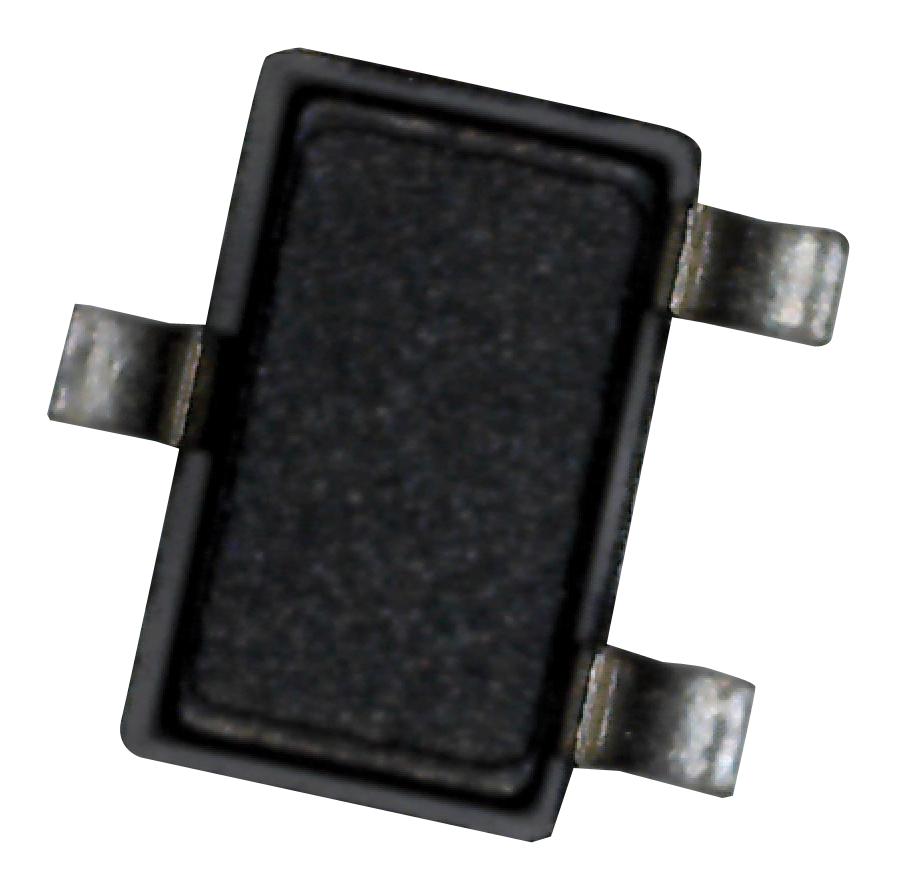

The BC847C is a general-purpose NPN silicon transistor housed in a SC-70/SOT-323 package, suitable for low power amplifier applications. It features high hFE gain, low collector-emitter saturation voltage, and excellent switching capabilities. Qualified for automotive and industrial use, it is RoHS, halogen, and BFR free, with supports for automotive and other specialized applications. Its maximum collector-emitter voltage is 45V, collector-base voltage 50V, and collector current up to 100mA, making it ideal for small signal amplification and switching in compact surface-mount designs.
ONSEMI BC847CWT1G NPN Silicon Transistor Specifications:
- Package: SC-70/SOT-323
- Type: NPN Silicon
- Maximum Collector-Emitter Voltage: 45 V
- Maximum Collector-Base Voltage: 50 V
- Maximum Emitter-Base Voltage: 6.0 V
- Collector Current: 100 mA
- Thermal Resistance, Junction-to-Ambient: 620 °C/W
- Total Device Dissipation on FR-5 Board: 200 mW
- Storage Temperature Range: -55°C to +150°C
- RoHS, Halogen Free, BFR Free, Pb-Free
- AEC-Q101 Qualified
- Case Dimensions: 1.0 x 0.75 x 0.062 inch (Pb-Free)
Buy the ON Semiconductor BC847C U+2013 Reliable NPN Transistor for Industrial Applications
Order the BC847C NPN silicon transistor online today to enhance your electronic projects with high gain, low saturation voltage, and dependable performance. Ideal for low power amplification and switching applications, its compact SC-70/SOT-323 package makes it suitable for space-constrained designs. Supported by RoHS, halogen, and BFR free certifications, this transistor ensures compliance with industry standards. Perfect for industrial and automotive circuits, secure your supply of this versatile component now and benefit from fast delivery and quality assurance.
Buy ON Semiconductor BC847C now and experience unmatched reliability and performance in low power amplification and switching in surface-mount designs.
Frequently Asked Questions
Where can I buy ONSEMI BC847CWT1G?
You can click on the BUY or RFQ button to purchase BC847CWT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BC847CWT1G?
You can download the BC847CWT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BC847CWT1G?
ONSEMI
