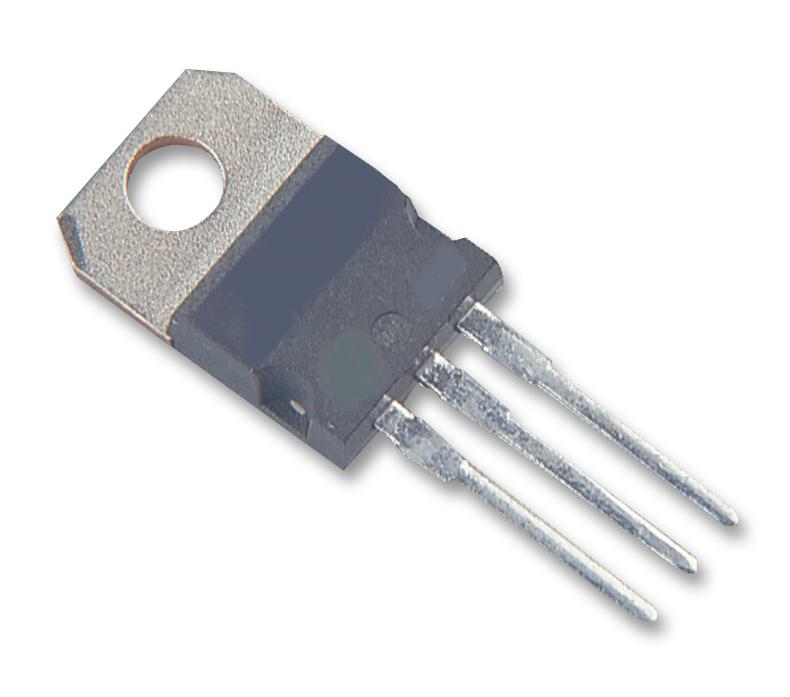

ONSEMI MBR2535CTG Power Rectifier
The MBR2535CTG is a switching mode power rectifier featuring a molded epoxy case with a cathode band for polarity, corrosion-resistant surfaces, and a guard ring for stress protection. Built on the Schottky barrier principle with platinum barrier metal, it delivers a low forward voltage drop and operates efficiently at high junction temperatures up to 175°C. Its robust construction and UL 94 V-0 flammability rating make it suitable for power management, industrial, and high-reliability applications, ensuring durability and stable performance under demanding conditions.
ONSEMI MBR2535CTG Power Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 35V (MBR2535CTG), 45V (MBR2545CTG)
- Average Rectified Forward Current: 30A per device, 15A per diode
- Peak Repetitive Forward Current: 30A (square wave, 20 kHz, Tg=150°C)
- Surge Current: 150A (halfwave, single phase, 60Hz)
- Reverse Surge Current: 1.0A at 2.0µs
- Storage Temperature Range: -65°C to +175°C
- Operating Junction Temperature: -65°C to +175°C
- Thermal Resistance Junction-to-Case: 15°C/W
- Thermal Resistance Junction-to-Ambient: 50°C/W
- Forward Voltage: 0.50V at 30A, 25°C; 0.65V at 30A, 125°C
- Reversal Current: 0.2mA at 25°C, 9.0mA at 125°C
- Case: TO-220, epoxy, UL 94 V-0
- Lead Soldering Temperature: Max 260°C for 10 seconds
- Weight: Approximately 1.9 grams
Buy the ON Semiconductor MBR2535CTG – Reliable Switching Mode Power Rectifier for Industrial Applications
Purchase the ON Semiconductor MBR2535CTG power rectifier online today and ensure durable, efficient power management in your industrial systems. Designed with a molded epoxy case and platinum barrier Schottky technology, it offers low forward voltage and high junction temperature tolerance. Ideal for optimal performance in industrial automation, power supplies, and high-reliability applications, this rectifier provides robust stress protection, corrosion resistance, and easy soldering. Order now to get fast delivery and enhance your power electronics with a dependable rectifier solution.
Get ON Semiconductor MBR2535CTG today—built for high current and high-temperature reliability in industrial power management solutions.
Frequently Asked Questions
Where can I buy ONSEMI MBR2535CTG?
You can click on the BUY or RFQ button to purchase MBR2535CTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBR2535CTG?
You can download the MBR2535CTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBR2535CTG?
ONSEMI
