ONSEMI BC848BLT1G NPN Bipolar Transistor
The BC848BLT1G is an NPN silicon bipolar transistor designed for versatile general-purpose use in linear and switching applications. Encased in a compact SOT-23 surface-mount package, it offers high reliability with a moisture sensitivity level-1, AEC-Q101 qualification, and PPAP capability. The device features an ESD rating exceeding 4000V for human body model and over 400V for machine model, making it suitable for automotive, industrial, and power management systems. Its low-power operation, combined with robust electrical specifications, ensures dependable performance in demanding environments.
ONSEMI BC848BLT1G NPN Bipolar Transistor Specifications:
- Package Type: SOT-23
- Maximum Collector-Emitter Voltage: 65 V
- Maximum Collector-Base Voltage: 80 V
- Maximum Emitter-Base Voltage: 6.0 V
- Maximum Collector Current: 100 mA
- Housed in Surface-Mount Package
- Moisture Sensitivity Level: 1
- ESD Rating: >4000 V (Human Body Model)
- >400 V (Machine Model)
- Temperature Range: -55°C to +125°C
- Thermal Resistance, Junction-to-Ambient: 556 °C/W
- Thermal Resistance, Junction-to-Ambient (Alumina): 417 °C/W
- Total Device Dissipation (FR-5 Board): 225 mW
- Derate above 25°C: 1.8 mW/°C
- Maximum Junction Temperature: +150°C

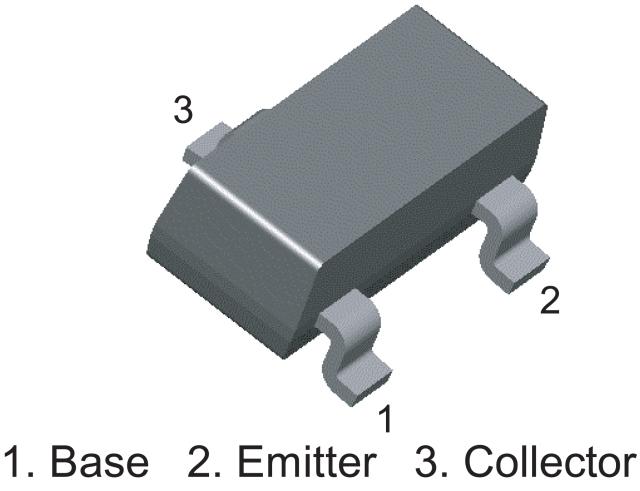

Buy the ON Semiconductor Series BC Series BC848: BC848BLT1G
Purchase the ON Semiconductor BC848BLT1G now and enhance your electronic projects with a reliable NPN transistor. Its compact SOT-23 package fits easily into surface-mount designs, offering high ESD protection over 4000V. Ideal for industrial, automotive, and power management applications, this device provides robust electrical characteristics and broad temperature range operation. Qalified for automotive and industrial standards, the BC848BLT1G ensures dependable switching and linear performance, making it an essential component for demanding environments.
Buy ON Semiconductor BC848BLT1G now and experience unmatched reliability and performance in industrial, automotive, and power management systems.
Frequently Asked Questions
Where can I buy ONSEMI BC848BLT1G?
You can click on the BUY or RFQ button to purchase BC848BLT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BC848BLT1G?
You can download the BC848BLT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BC848BLT1G?
ONSEMI
