ONSEMI CAT24C08C4ATR Serial EEPROM
The CAT24C08C4ATR is an 8-Kb CMOS serial EEPROM device supporting I2C protocol with a 1.7V to 5.5V supply voltage range. It offers a 16-byte page write buffer, hardware write protection, low power consumption, and data retention of 100 years. This device is ideal for industrial applications and supports multiple packages including WLCSP, SOIC, TSSOP, MSOP, and UDFN, with various temperature ranges and RoHS compliance. It features a simple two-wire interface, and the internal architecture supports over 1,000,000 program/erase cycles.
ONSEMI CAT24C08C4ATR Serial EEPROM Specifications:
- Memory Size: 8-Kb (1024 x 8 bits)
- Supply Voltage Range: 1.7V to 5.5V
- Page Size: 16 Bytes
- Endurance: >1,000,000 cycles
- Data Retention: 100 Years
- Supported Protocol: Standard (100 kHz) and Fast (400 kHz) I2C
- Temperature Range: Industrial (-40°C to +85°C) and Extended (-40°C to +125°C)
- Package Options: SOIC-8, TSSOP-8, MSOP-8, UDFN-8, WLCSP-4/5
- RoHS Compliant, Halogen-Free, Pb-Free
- Noise Suppression Filters on I2C bus
- Hardware Write Protection Pin (WP)

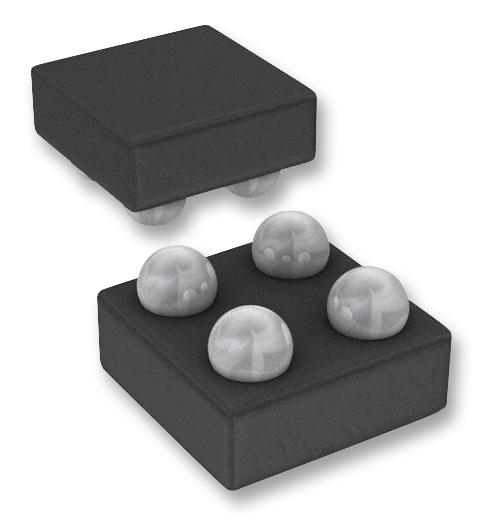

Buy the Buy ON Semiconductor CAT24C08C4ATR Serial EEPROM Part Number CAT24C08C4ATR Online
Order the ON Semiconductor CAT24C08C4ATR now to ensure reliable data storage with high endurance over 1 million cycles. Featuring I2C protocol, 16-byte page buffer, and extended temperature support, it is suitable for industrial and embedded systems. Available in various packages including SOIC, TSSOP, MSOP, UDFN, and WLCSP, this EEPROM offers low power consumption and 100-year data retention. Perfect for applications requiring long-term, reliable non-volatile memory with RoHS compliance, order online today for quick delivery and excellent service.
Get ON Semiconductor CAT24C08C4ATR today—built for precision, low power operation, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ONSEMI CAT24C08C4ATR?
You can click on the BUY or RFQ button to purchase CAT24C08C4ATR from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part CAT24C08C4ATR?
You can download the CAT24C08C4ATR datasheet or visit the ONSEMI website for support.
Who is the manufacturer of CAT24C08C4ATR?
ONSEMI
