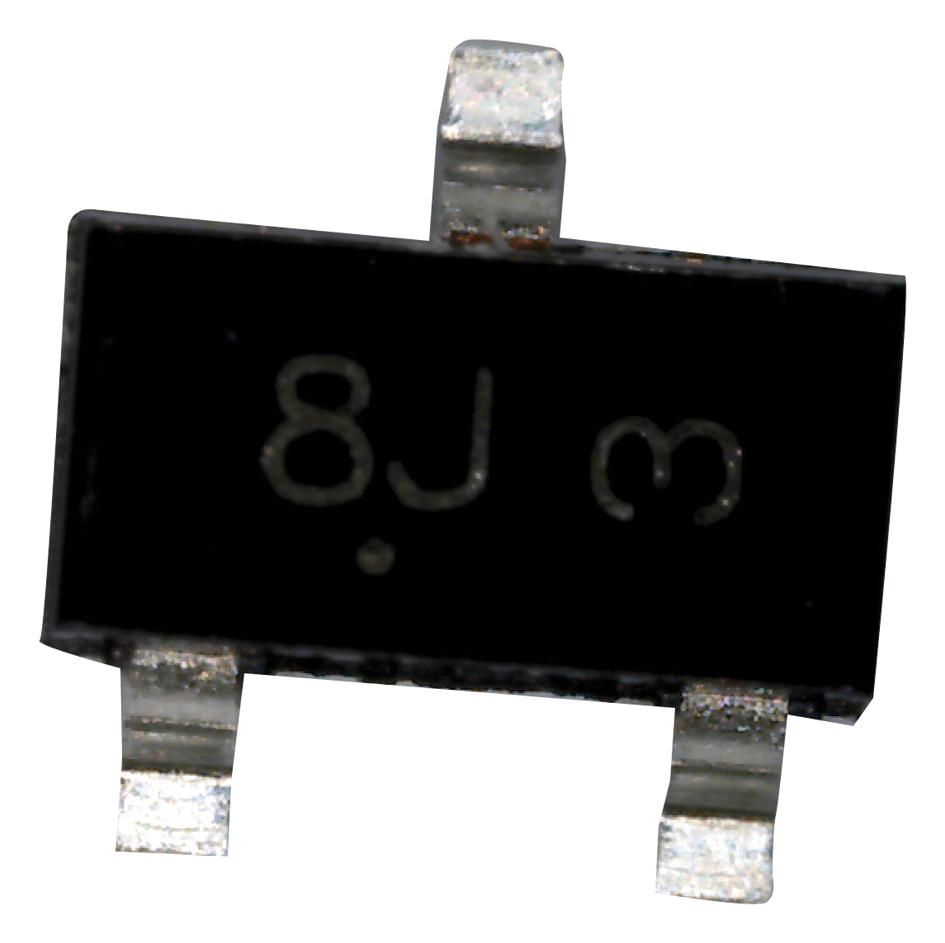

ONSEMI MUN2232T1G Bias Resistor Transistor
The MUN2232T1G is a monolithic bias resistor transistor (BRT) designed to replace a single device with external resistors, reducing system cost and board space. It features an NPN transistor with integrated bias resistors, simplifying circuit design, saving space, and lowering component count. Qualified for automotive applications under AEC-Q101, it is Pb-free, halogen-free, and RoHS compliant. Its maximum ratings include 50 V collector-base and collector-emitter voltages, with a continuous collector current of 100 mA. Ideal for compact, reliable electronic designs requiring integrated biasing solutions.
ONSEMI MUN2232T1G Bias Resistor Transistor Specifications:
- Collector-Base Voltage VoBo: 50 Vdc
- Collector-Emitter Voltage VcEo: 50 Vdc
- Collector Current Continuous Io: 100 mA
- Input Forward Voltage Vin: 30 Vdc
- Input Reverse Voltage Vinrev: 10 Vac
- Maximum Power Dissipation (SC-59): 230 mW at 25°C
- Thermal Resistance, Junction to Ambient (SC-59): 370 °C/W
- Total Device Dissipation (SOT-23): 246 mW at 25°C
- Junction to Ambient (SOT-23): 31 °C/W
- Total Device Dissipation (SC-70): 202 mW at 25°C
- Junction to Ambient (SC-70): 403 °C/W
- Total Device Dissipation (SC-75): 200 mW at 25°C
- Junction to Ambient (SC-75): 400 °C/W
- Total Device Dissipation (SOT-723): 260 mW at 25°C
- Junction to Ambient (SOT-723): 205 °C/W
- Junction and Storage Temperature Range: -55°C to +150°C
- Collector-Base and Collector-Emitter Breakdown Voltage: 50 V
- DC Current Gain (hFE): 15 to 30
- Collector-Emitter Saturation Voltage: 0.25 V at 10 mA
- Input Voltage (off): 1.2 V, (on): 2.0 V
- Output Voltage (on): 0.2 V, (off): 49 V
- Input Resistor: 3.3 to 6.4 kΩ
- Resistor Ratio RY/RO: 0.8 to 12
