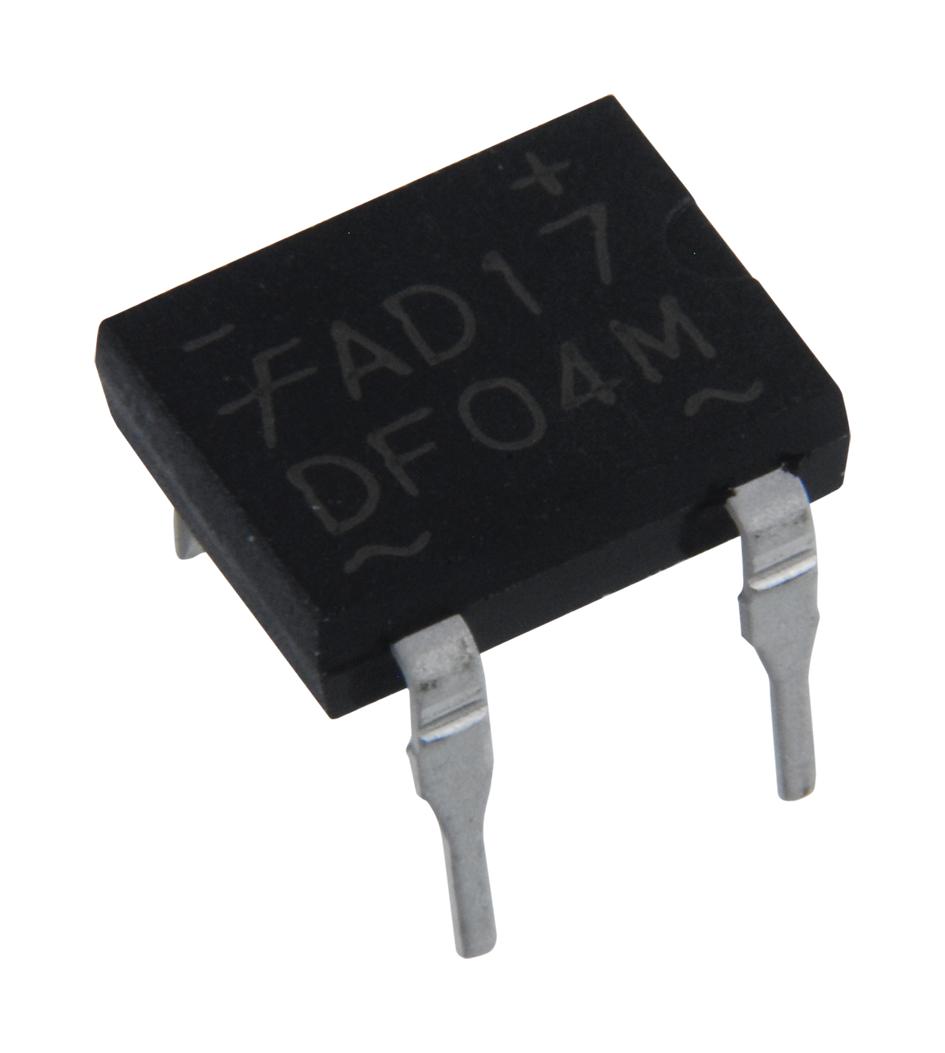

ONSEMI DF04M Bridge Rectifier
The DF04M bridge rectifier offers reliable single-phase conversion for various electronic applications. With glass passivated junctions, it ensures low leakage current and efficient performance. Designed for general use, it supports a maximum RMS input voltage of 280V and can withstand a surge overload current of 50A for brief periods. Its robust construction and thermal characteristics make it suitable for power supply rectification, ensuring stability and safety in operation. Ideal for industrial, commercial, and consumer electronics requiring high surge capacity and low leakage features.
ONSEMI DF04M Bridge Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 400 V
- Maximum RMS Bridge Input Voltage: 280 V
- DC Reverse Voltage at Rated In: 400 V
- Peak Forward Surge Current: 50 A
- Average Rectified Forward Current: 15 A at Ty=40°C
- Non-Repetitive Peak Forward Surge Current: 50 A for 8.3 ms
- Storage and Operating Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 40 °C/W
- Power Dissipation: 3.1 W
- Forward Voltage, per Element: 1.1 V at IF=1A
- Typical Capacitance, per Leg: 25 pF
Buy the Fairchild Series DF Series Bridge Rectifier: DF04M
Purchase the Fairchild Series DF04M bridge rectifier online today and enjoy efficient power rectification with low leakage and high surge overload capacity. Perfect for industrial, commercial, and consumer electronics, this component supports up to 280V RMS and 50A surge current. Its glass passivated junction guarantees durability and stability in demanding applications. Buy now to ensure your power systems operate reliably, safely, and efficiently with genuine parts from authorized distributors.
Order your Fairchild Series DF04M bridge rectifier today and ensure reliable power conversion for your industrial and electronic projects with high surge capacity.
Frequently Asked Questions
Where can I buy ONSEMI DF04M?
You can click on the BUY or RFQ button to purchase DF04M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part DF04M?
You can download the DF04M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of DF04M?
ONSEMI
