ONSEMI PZTA56 PNP Bipolar Transistor
The PZTA56 is a PNP bipolar transistor designed for general-purpose amplifier applications, supporting collector currents up to 300mA. It operates within a junction temperature range of -55°C to 150°C and is suitable for power management, industrial, and switching applications. Featuring a collector-emitter voltage of -80V and a collector-base voltage of -80V, this transistor provides reliable performance in diverse electronic circuits. Its thermal characteristics include a total device dissipation of up to 1000mW and a junction-to-ambient thermal resistance of 125°C/W. Ideal for various electronics requiring efficient amplification and switching functions.
ONSEMI PZTA56 PNP Bipolar Transistor Specifications:
- Collector-Emitter Voltage: -80 V
- Collector-Base Voltage: -80 V
- Emitter-Base Voltage: 4.0 V
- Collector Current: -500 mA continuous
- Operating and Storage Junction Temperature Range: -55°C to +150°C
- Total Device Dissipation: 1000 mW
- Thermal Resistance, Junction-to-Ambient: 125 °C/W
- Power Dissipation: 1000 mW
- Collector-Emitter Breakdown Voltage: -80 V
- Collector-Base Breakdown Voltage: -80 V
- Emitter-Base Breakdown Voltage: 4.0 V
- Collector Cut-Off Current: -0.1 pA at -60 V
- DC Current Gain: 100 at Ic = -100 mA
- Saturation Voltage (Vce(sat)): 0.25 V at Ic = -100 mA
- Base-Emitter On Voltage: 1.2 V at Ib = -100 mA
- Gain Bandwidth Product: 50 MHz at f= 100 MHz

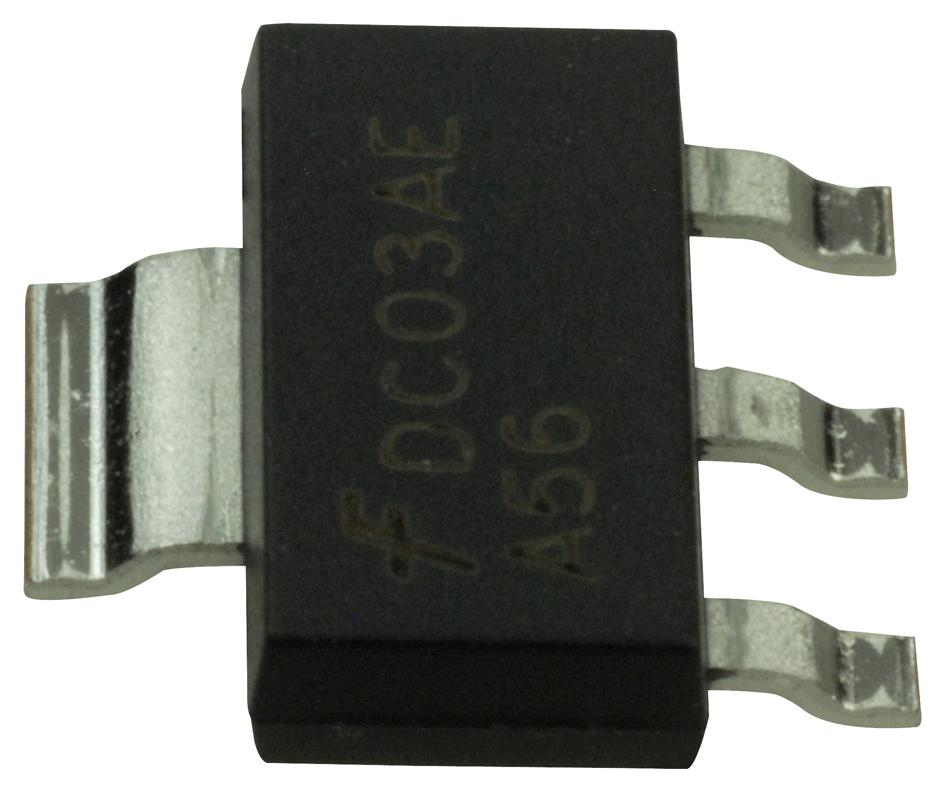

Buy the Buy Fairchild PZTA56 Part Number PZTA56 Online
