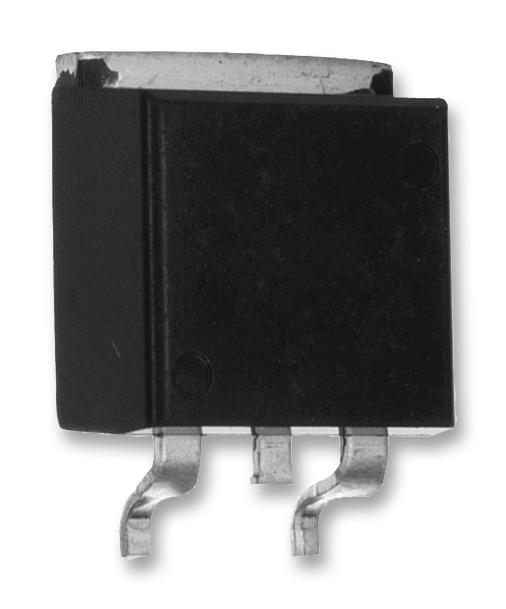

ONSEMI NCP1117DT33T5G Voltage Regulator
The NCP1117 series are low dropout positive voltage regulators capable of delivering over 1.0 A of output current with a maximum dropout voltage of 1.2 V at 800 mA. They feature nine fixed output voltages from 1.5 V to 12 V and include an adjustable option programmable from 1.25 V to 18.8 V using two external resistors. Internal protections include current limiting, thermal shutdown, and safe operating area compensation. Suitable for consumer, industrial equipment, and power post regulation, these Pb-Free devices operate with up to 20 V input and come in SOT-223 and DPAK packages, ensuring reliable and precise voltage regulation.
ONSEMI NCP1117DT33T5G Voltage Regulator Specifications:
- Maximum Input Voltage: 20 V
- Output Current: Over 1.0 A at 800 mA load with maximum dropout voltage of 1.2 V
- Fixed Output Voltages: 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, 12 V
- Adjustable Voltage Range: 1.25 V to 18.8 V via two external resistors
- Device Packages: SOT-223 and DPAK
- Protection Features: Current limiting, thermal shutdown, safe operating area compensation
- Operating Temperature: Up to 125°C
- Dropout Voltage: Max 1.2 V at 800 mA
- Input-Output Voltage Dropout: Typically 1.2 V at 800 mA
- Pb-Free: Yes, AEC-Q100 Qualified for automotive applications
Buy the ON Semiconductor Series Low Dropout Voltage Regulators: NCP1117DT33T5G
Purchase the ON Semiconductor NCP1117DT33T5G voltage regulator online today. Designed for reliable power regulation in consumer and industrial applications, it provides over 1.0 A output current with minimal dropout voltage, ensuring stable performance. This Pb-Free device features fixed and adjustable voltage options, internal protection features like current limiting and thermal shutdown, and comes in convenient SOT-223 and DPAK packages. Perfect for power supplies, post regulation, and critical electronic systems requiring precise voltage control and durability.
Get ON Semiconductor low dropout voltage regulator NCP1117DT33T5G today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy ONSEMI NCP1117DT33T5G?
You can click on the BUY or RFQ button to purchase NCP1117DT33T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1117DT33T5G?
You can download the NCP1117DT33T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1117DT33T5G?
ONSEMI
