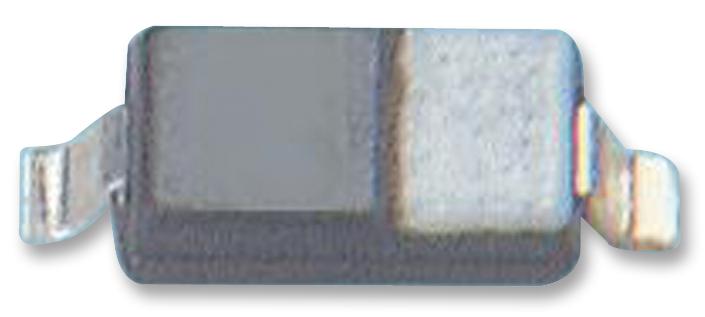

ONSEMI ESD7361HT1G High-Speed ESD Protection Diode
The low capacitance ESD protection diode is designed for high speed data lines, providing reliable ESD protection with maximum capacitance of 0.55 pF. It supports IEC and ISO standards, including IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, and ISO 10605, making it suitable for sensitive electronic devices like wireless chargers and NFC. The device features ultra-low capacitance, high ESD surge tolerance, lead-free, halogen-free, and RoHS compliance, ensuring safe and effective protection in automotive and industrial applications. It operates within -55°C to +125°C, with a storage temperature range of -55°C to +150°C.
ONSEMI ESD7361HT1G High-Speed ESD Protection Diode Specifications:
- Maximum Reverse Peak Pulse Current: 16 V
- Clamping Voltage: 31 V at Ipp, 34 V at Ipp
- Reverse Working Voltage: 5 V to 16 V
- Breakdown Voltage: 16.5 V at 1 mA
- Reverse Leakage Current: less than 1000 nA
- Junction Capacitance: 0.55 pF at 1 MHz, 0 V
- Dynamic Resistance: 0.735 ohms at TLP pulse
- Operating Junction Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Lead Solder Temperature: 260°C for 10 seconds
- Packaging: SOD-323, SOD-523, SOD-923, Tape & Reel
Buy the ON Semiconductor ESD7361 – Reliable ESD Protection Diode for Industrial Applications
Secure your sensitive electronic devices by ordering the ON Semiconductor ESD7361 diode online today. Engineered for high speed data lines, this low capacitance ESD protection diode offers exceptional surge tolerance and capacitance performance. Its compliance with IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, and ISO standards ensures reliable ESD and EFT protection. Suitable for wireless chargers, NFC, and automotive systems, it operates efficiently within -55°C to +125°C. Purchase now to enhance your device’s protection reliability in demanding industrial environments.
Order your ON Semiconductor ESD7361 protection diode today and ensure your high speed data lines are safeguarded with ultra-low capacitance and high ESD tolerance for industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI ESD7361HT1G?
You can click on the BUY or RFQ button to purchase ESD7361HT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESD7361HT1G?
You can download the ESD7361HT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESD7361HT1G?
ONSEMI
