ONSEMI ESD9X12ST5G ESD Protection Diode
The ESD9X12ST5G series are micro-packaged TVS diodes designed to protect voltage-sensitive components from electrostatic discharge (ESD). Featuring excellent clamping capability, low leakage current, and response times under 1 nanosecond, these devices offer robust protection against ESD events of up to 16 kV per Human Body Model and IEC 61000-4-2 Level 4 standards. With a small form factor of 0.039” x 0.024” and low body height of 0.017”, they are ideal for portable electronics like smartphones, digital cameras, MP3 players, and automotive applications, and are certified Pb-Free and withstand reflow soldering up to 260°C.
ONSEMI ESD9X12ST5G ESD Protection Diode Specifications:
- Clamping Voltage: 3.3 V to 12 V for various models
- Dimensions: 0.039” x 0.024” (1.0 mm x 0.60 mm)
- Maximum Body Height: 0.017” (0.43 mm)
- Stand-off Voltage: 3.3 V - 12 V
- Leakage Current: Low leakage current under normal conditions
- Response Time: Typically less than 1 ns
- ESD Rating: Class 3 (> 16 kV) per Human Body Model
- IEC61000-4—2 Level 4 ESD Protection
- Mechanical: Void-free, transfer-molded, UL 94 V-0 epoxy
- Lead Finish: 100% Matte Sn (Tin)
- Maximum Reflow Temperature: 260°C
- Power Dissipation: 150 mW on FR-5 board at 25°C
- Operational Temperature Range: -55°C to +150°C
- Package: SOD-923, Case 514AA

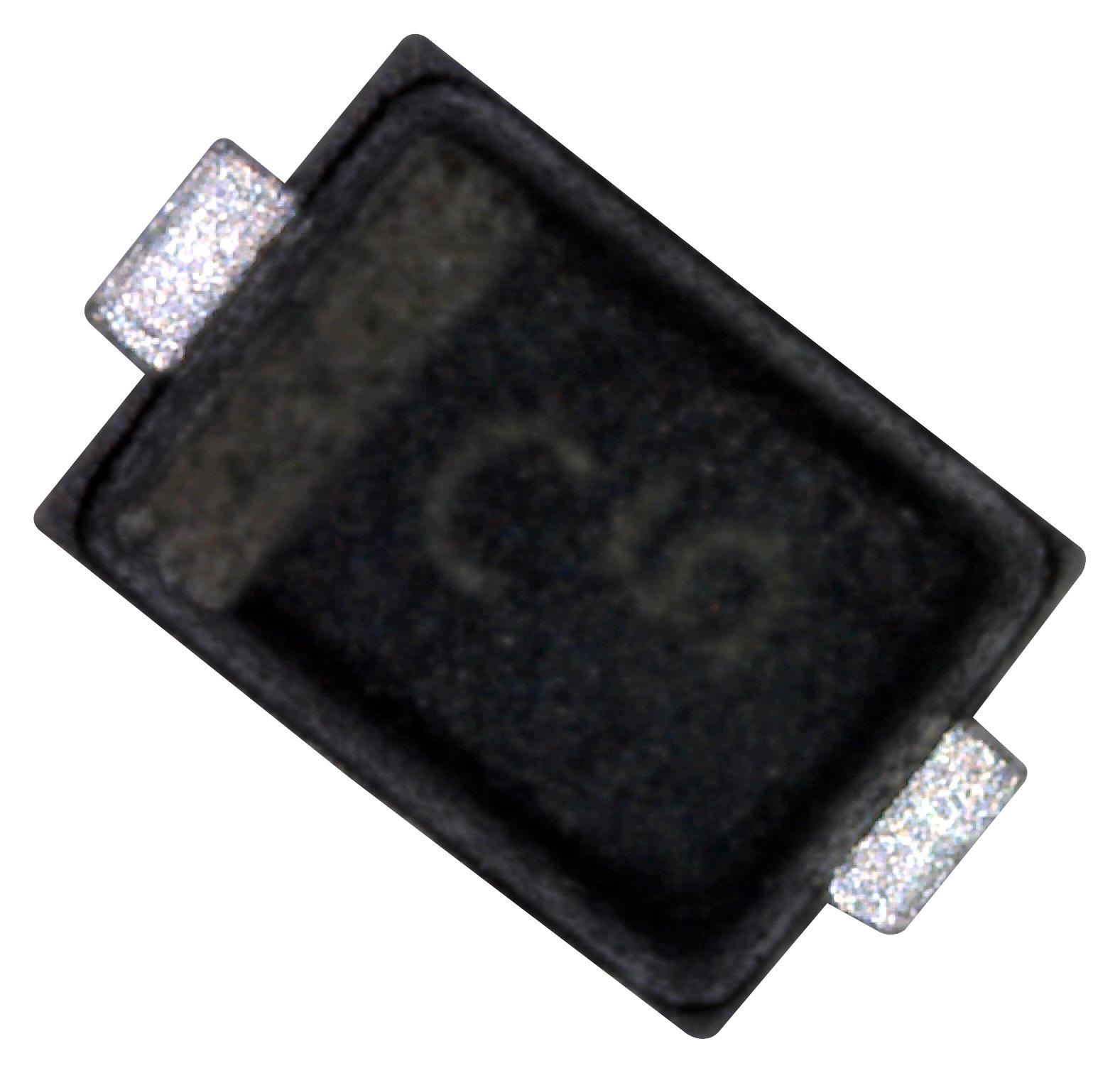

Buy the Buy ON Semiconductor ESD9X12ST5G Part Number ESD9X12ST5G Online
Secure your electronic designs with the reliable ESD9X12ST5G diode from ON Semiconductor. This compact, high-speed device provides robust ESD protection up to 16 kV, offering excellent clamping, low leakage, and quick response times of less than 1 ns. Its small size makes it suitable for space-constrained portable electronics, automotive, and industrial applications. Certified Pb-Free and capable of withstanding reflow soldering at 260°C, this diode ensures durability and high performance in demanding environments. Buy online today for trusted ESD safety.
Order your ON Semiconductor SeriesESD9X12ST5G ESD protection diode today and ensure your portable devices are safeguarded against ESD events with reliability and speed.
