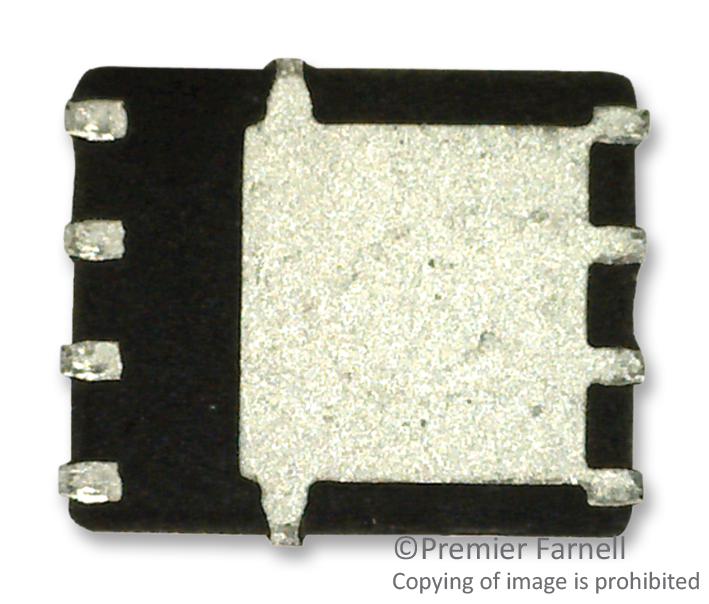

ONSEMI FDMS86202 Power MOSFET
This N-Channel Shielded Gate PowerTrench MOSFET is designed for high efficiency switching applications, especially DC-DC conversion. Utilizing advanced PowerTrench technology with shielded gate construction, it offers low on-resistance and superior switching performance. The device features a robust MSL1 package, 100% UIL tested, and RoHS compliance. It can handle drain voltages up to 120 V with continuous drain currents of 64 A. Ideal for power management, load switching, and high-frequency switching applications, this MOSFET ensures reliability and efficiency in demanding environments.
ONSEMI FDMS86202 Power MOSFET Specifications:
- Drain to Source Voltage: 120 V
- Drain Current (Continuous): 64 A at 25°C
- Drain Current (Pulsed): 240 A
- Gate to Source Voltage: ±20 V
- Maximum Power Dissipation: 156 W at 25°C
- Junction Operating Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Case: 0.8 °C/W
- Thermal Resistance Junction-to-Ambient: 45 °C/W
- Package: Power 56
- Manufactured using Shielded Gate technology with PowerTrench process
- RoHS Compliant, 100% UIL tested
- Transition Time (Turn-On/Off): 21–27 ns
- Gate Charge (Total): 45–64 nC
Buy the Fairchild FDMS86202 – Reliable Power MOSFET for Industrial Applications
Enhance your power management systems with the high-performance Power MOSFET designed for industrial applications. The FDMS86202 offers low Rds(on), high current capacity, and robust thermal characteristics, making it perfect for DC-DC conversion, load switching, and high-frequency environments. Its advanced Shielded Gate PowerTrench technology ensures superior switching efficiency and reliability in demanding conditions. RoHS compliant and rigorously tested for quality, this MOSFET provides the durability and performance needed for modern electronics and power supply designs.
Buy Fairchild FDMS86202 now and experience unmatched reliability and performance in power switching and load management.
Frequently Asked Questions
Where can I buy ONSEMI FDMS86202?
You can click on the BUY or RFQ button to purchase FDMS86202 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMS86202?
You can download the FDMS86202 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMS86202?
ONSEMI
