ONSEMI H11L1SR2VM Optocoupler
The H11L1SR2V-M is a high-speed, single-channel 6-pin optocoupler with a Schmitt trigger output, ideal for noise-immune signal isolation. Featuring a gallium-arsenide infrared diode and open-collector output, it can operate at data rates up to 1 MHz (NRZ). The device provides wide supply voltage compatibility, allowing use across various logic systems. It can sink up to 16mA at 0.4V, with guaranteed hysteresis thresholds for precise switching. Its robust insulation ratings and regulatory approvals make it suitable for industrial automation, motor control, and computer interface applications, ensuring reliable electrical isolation.
ONSEMI H11L1SR2VM Optocoupler Specifications:
- Package: 6-pin DIP
- Max Data Rate: 1 MHz (NRZ)
- Output Current: Sinks 16 mA at 0.4 V
- Isolation Voltage: 4170 VAC for 1 Minute
- Insulation Voltage: 850 V peak
- Angle of External Clearance: 27 mm
- Creepage: 27 mm
- Maximum Working Insulation Voltage: 850 Vpeak
- Peak Over-Voltage: 6000 Vpeak
- Input Forward Voltage: 1.2 to 1.5 V at 10 mA
- Collector-Emitter Voltage: 3 to 15 V
- Input Current: 350 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +125°C
- Total Power Dissipation: 250 mW at 25°C
- Case Temperature: 175°C
- Compliance: UL1577, IEC60747-5-5
- Isolation Resistance: >10^9 Ω at 25°C
- Reflow Soldering Temp.: 260°C for 10 seconds

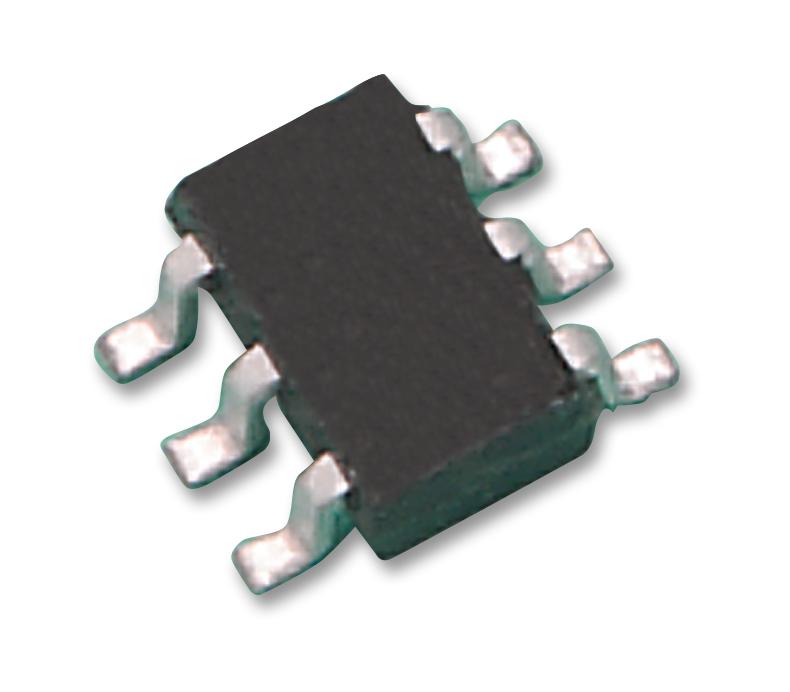

Buy the Buy ON Semiconductor Optocoupler Part Number H11L1SR2VM Online
